Walt's Tractor Parts | International Tractor Parts / Farmall Tractor Parts / IH | IH/F Drive Train Parts | Clutch | International Clutch Kits and Components |  11"---454 thru 785---Single Stage

11"---454 thru 785---Single Stage

UT3245 Clutch Rebuild Kit---11

UT3245 Clutch Rebuild Kit---11"---Replaces 70716K
Replaces number 70716K

Fits: 248, 258, 268, 380B, 385, 395, 454, 464, 484, 485, 495, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 25600A, 2500B, 2510, 3220, 3230, 3400A, 3434, 3500A, 4500

Kit Includes: Pressure Plate, 6 Pad Disc, Release and Pilot Bearing

Flywheel Step---1.443"

$25.00 Core charge included in price

Price: $325.00

UT3246 Pressure Plate---11

UT3246 Pressure Plate---11"---Single Stage---Replaces 70716
Replaces number 70716

Fits: 248, 258, 268, 380B, 385, 395, 454, 464, 484, 485, 495, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 25600A, 2500B, 2510, 3220, 3230, 3400A, 3434, 3500A, 4500

3 Levers---6 Springs ---1-5/8" Diameter Hub---10 Spline

Flywheel Step---1.443"

$18.00 Core charge included in price

Price: $140.00

UT3247 Clutch Disc---11

UT3247 Clutch Disc---11"---4 Pad---Replaces 530402
Replaces number 530402

Fits: 248, 258, 268, 380B, 385, 395, 454, 464, 484, 485, 495, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 25600A, 2500B, 2510, 3220, 3230, 3400A, 3434, 3500A, 4500

1-1/8" Diameter Hub---10 Spline---Spring Center

$15.00 Core charge included in price

Price: $110.00

UT3248 Clutch Disc---11

UT3248 Clutch Disc---11"---6 Pad---Replaces 70093
Replaces number 70093

Fits: 248, 258, 268, 380B, 385, 395, 454, 464, 484, 485, 495, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 25600A, 2500B, 2510, 3220, 3230, 3400A, 3434, 3500A, 4500

1-1/8" Diameter Hub---10 Spline---Spring Center

$15.00 Core charge included in price

Price: $150.00

UT3249 Clutch Disc---11

UT3249 Clutch Disc---11"---6 Carbotic Pad---Replaces 70093CP
Replaces number 70093CP

Fits: 248, 258, 268, 380B, 385, 395, 454, 464, 484, 485, 495, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 25600A, 2500B, 2510, 3220, 3230, 3400A, 3434, 3500A, 4500

1-1/8" Diameter Hub---10 Spline---Spring Center

$15.00 Core charge included in price

Price: $155.00

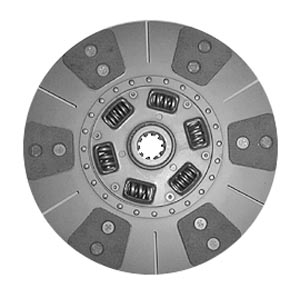

UT3250 Clutch Disc---11

UT3250 Clutch Disc---11"---6 Pad---Replaces 70093T
Replaces number 70093T

Fits: 248, 258, 268, 380B, 385, 395, 454, 464, 484, 485, 495, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 25600A, 2500B, 2510, 3220, 3230, 3400A, 3434, 3500A, 4500

1-1/8" Diameter Hub---10 Spline---Spring Center

Thick on Flywheel Side-Recommended for flywheels that have been machined below
specifications for clearance of crankshaft mounting bolts
.

$7.00 Core charge included in price

Price: $155.00

UT3251 Bearing and Seal Kit---Replaces 830621

UT3251 Bearing and Seal Kit---Replaces 830621
Replaces number 830621

Fits: 248, 258, 268, 454, 464, 484, 485, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 2500A, 2500B, 3400A, 3500A, 4500

Fits: IPTO Shaft; Front Seal Diameter-1.750", Rear Seal Diameter 1.625"

Kit Includes: Release Bearing, Pilot Bearing, Bearing Cage O-Ring, IPTO Seal and Rear Seal














Price: $75.00

UT3252 Release Bearing Carrier---Replaces 360501

UT3252 Release Bearing Carrier---Replaces 360501
Replaces number 360501

Fits: 248, 258, 268, 454, 464, 484, 485, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 2500A, 2500B, 3400A, 3500A, 4500

Price: $75.00

UT3253 Release Bearing---Replaces 832375

UT3253 Release Bearing---Replaces 832375
Replaces number 832375

Fits: 248, 258, 268, 454, 464, 484, 485, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 2500A, 2500B, 3400A, 3500A, 4500

I.D.---2.375"
O.D.---3.50"
Thickness---.730"

Price: $25.00

UT3254 Pilot Bearing---Replaces 836204

UT3254 Pilot Bearing---Replaces 836204
Replaces number 836204

Fits: 248, 258, 268, 454, 464, 484, 485, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 2500A, 2500B, 3400A, 3500A, 4500

I.D---.787"
O.D---1.850"
Thickness---.551"












Price: $15.00

UT3255 Release Bearing---Constant Running---Replaces 830860

UT3255 Release Bearing---Constant Running---Replaces 830860
Replaces number 830860

Release Bearing---Includes Thrust Washer and Constant Running Bearing

Fits: 248, 258, 268, 454, 464, 484, 485, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 2500A, 2500B, 3400A, 3500A, 4500

I.D.---2.375"
O.D.---3.50"
Thickness---.730"

Price: $85.00

UT3257 Pilot Tool---Replaces 83AT002

UT3257 Pilot Tool---Replaces 83AT002
Replaces number 83AT002

Fits: 248, 258, 268, 454, 464, 484, 485, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 2500A, 2500B, 3400A, 3500A, 4500

Large Spline 1-5/8" - 10
Small Spline 1-1/8" - 10
Pilot Diameter 0.787"













Price: $35.00

UT3258 IPTO Shaft---Replaces 71230

UT3258 IPTO Shaft---Replaces 71230
Replaces number 71230

Fits: 454, 464, 484, 485, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 2500A, 2500B, 3400A, 3500A, 4500

10 Spline---21 Tooth---1-5/8" Outside Diameter---25 Degree

Price: $115.00

UT3259 IPTO Rear Seal---Replaces 376930

UT3259 IPTO Rear Seal---Replaces 376930
Replaces number 376930

Fits: 454, 464, 484, 485, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 2500A, 2500B, 3400A, 3500A, 4500

Price: $20.00

UT3260 IPTO Front Seal---Replaces 108962

UT3260 IPTO Front Seal---Replaces 108962
Replaces number 108962

Fits: 248, 258, 268, 454, 464, 484, 485, 574, 584, 585, 674, 684, 784, 785, 884
2400A, 2400B, 2500A, 2500B, 3400A, 3500A, 4500











Price: $20.00
