Compressors

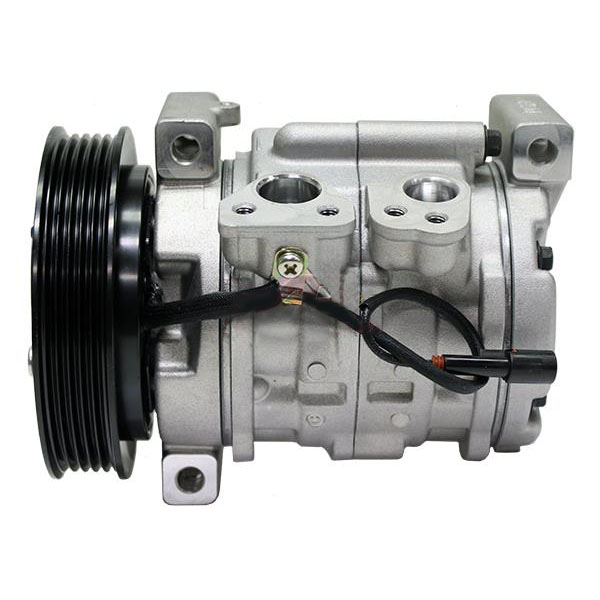

UMA999990 Compressor, New - E00717751D1

UMA999990 Compressor, New - E00717751D1
New 10S11C Compressor 5 Groove 12V - Alternative Denso Compressor 10S11C - 120mm, 5 Groove Clutch 12V

Replaces E00717751D1, 503-112

Fits MAHINDRA: 7060, 8560

Specifications
COMPRESSOR TYPE 10S11C
OIL TYPE PAG
CLUTCH DIAMETER 120mm, 4.72"
VOLTAGE 12
GROOVES 5
BELT WIDTH Serpentine
GAUGE LINE 33mm, 1.2992"

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Compressor, New

Price: $400.00

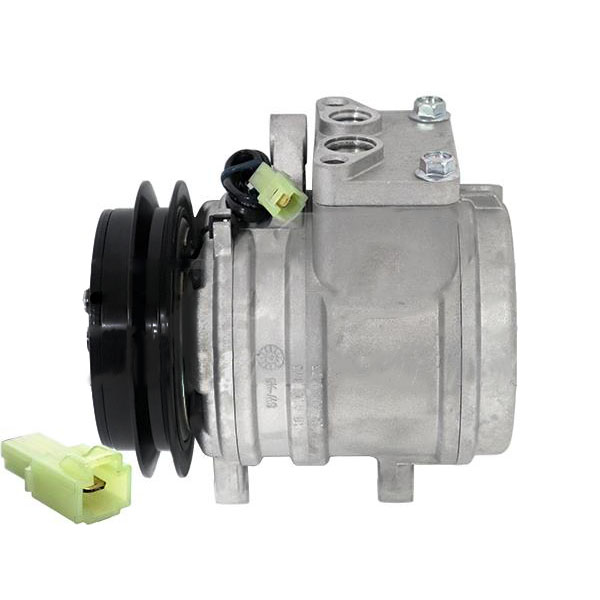

UMA999991 Compressor, New - E580-87291

UMA999991 Compressor, New - E580-87291
New Aftermarket SP10 4.76", Single Groove Clutch - 121mm, 1 Groove Clutch, 12V

Replaces 717114, 14628303200, T4145-87291, E580-87291, E58087291, T414587291, 508-8153

Fits MAHINDRA: 2538, 2545 (Must Identify by Compressor), 4510, 5010 (3/26/2013 & Below), 6010 (03/26/13 & Below - Must ID by Manifold), 6110 (03/26/13 & Below - Must ID by Manifold), 6910 (03/26/13 & Below - Must ID by Manifold),

Specifications
COMPRESSOR TYPE Delphi SP-10
HEAD TYPE 3 Ear, 2.20" Between Ears
OIL TYPE Pag 100
CLUTCH DIAMETER 121mm, 4.76"
VOLTAGE 12
GROOVES 1
BELT WIDTH 1/2"
GAUGE LINE Top Ear: 1.70" - Bottom Ear: .71"

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Compressor, New

Price: $425.00

UMA999992 Compressor, New - E580-87291

UMA999992 Compressor, New - E580-87291
New Compressor, Delphi SP10 4.76", Single Groove Clutch - 121mm, 1 Groove Clutch, 12V

Replaces 717114, 14628303200, T4145-87291, E580-87291, E58087291, T414587291, 508-815

Fits MAHINDRA: 2538, 2545 (Must Identify by Compressor), 4510, 5010 (3/26/2013 & Below), 6010 (03/26/13 & Below - Must ID by Manifold), 6110 (03/26/13 & Below - Must ID by Manifold), 6910 (03/26/13 & Below - Must ID by Manifold)

Specifications
COMPRESSOR TYPE Delphi SP-10
HEAD TYPE 3 Ear, 2.20" Between Ears
OIL TYPE Pag 100
CLUTCH DIAMETER 121mm, 4.76"
VOLTAGE 12
GROOVES 1
BELT WIDTH 1/2"
GAUGE LINE Top Ear: 1.70" - Bottom Ear: .71"

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $625.00

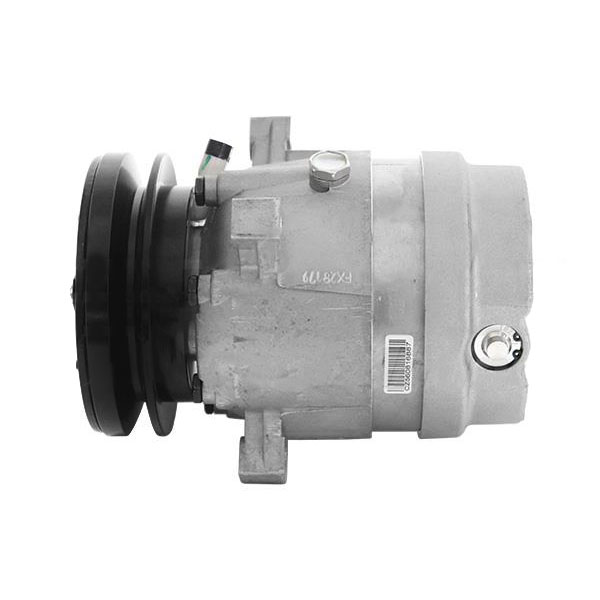

UMA999993 Compressor, New - 5110511

UMA999993 Compressor, New - 5110511
New Aftermarket V5 Compressor - 132mm, 1 Groove Clutch 12V - Has Sealing Washer Type Head - Replaces Older Style O-Ring Type Compressors

Replaces 5110511, 16608303201, T4520-50051, T4520-50052, T5980-87291, T598087291, T452050052, T452050052, 502-081

Fits MAHINDRA: 2545, 2555 (3/27/13 & Above), 2655, 2565, 5010 (3/27/13 & Above), 6010 (3/27/13 & Above), 6110 (3/27/13 & Above), 6910 (3/27/13 & Above), 7010, MFORCE 100, MFORCE 105P,

Has Sealing Washer Type Head - Replaces Older Style O-Ring Type Compressors

Specifications
COMPRESSOR TYPE V5
HEAD TYPE Pad
OIL TYPE Pag 46 Oil
CLUTCH DIAMETER 132mm, 5.2"
VOLTAGE 12
GROOVES 1
BELT WIDTH .5, 1/2"
GAUGE LINE 46.2mm, 1.82"

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $480.00

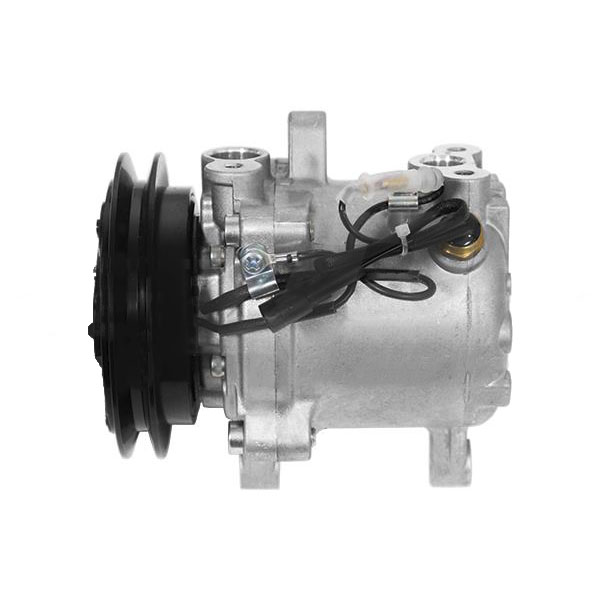

UMA999994 Compressor - Replaces 447260-5351

UMA999994 Compressor - Replaces 447260-5351
New SVO7E Compressor with 1 Groove Clutch - 110mm, Single Groove Clutch, 12V

Replaces 447260-5351, 503-18643

Fits MAHINDRA: 1538, 3616

Specifications
COMPRESSOR TYPE SV06E
OIL TYPE ND-Oil 8, Pag 46
CLUTCH DIAMETER 110mm, 4.34"
VOLTAGE 12
GROOVES Single
BELT WIDTH .40"
GAUGE LINE 34mm, 1.34"

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Compressor, New

Price: $500.00

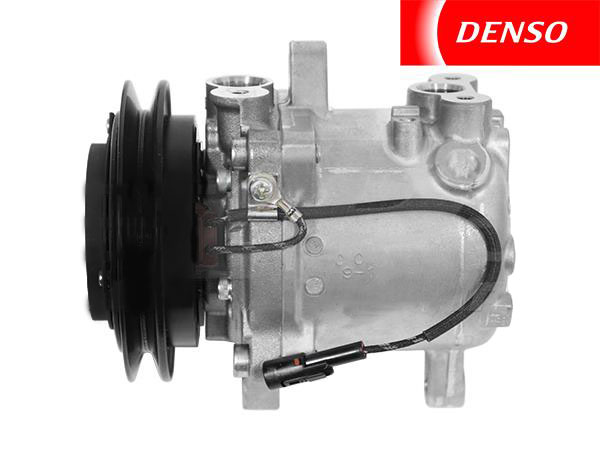

UMA999995 Compressor, New - 447260-5351

UMA999995 Compressor, New - 447260-5351
New Denso SVO7E Compressor with 1 Groove Clutch - 110mm, Single Groove Clutch, 12V

Replaces 447260-5351, 503-1864

Fits MAHINDRA: 1538, 3616

Specifications
COMPRESSOR TYPE SV06E
OIL TYPE ND-Oil 8, Pag 46
CLUTCH DIAMETER 110mm, 4.34"
VOLTAGE 12
GROOVES Single
BELT WIDTH .40"
GAUGE LINE 34mm, 1.34"
Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Compressor, New

Price: $600.00

UMA999996 Compressor, New - 3C581-97590

UMA999996 Compressor, New - 3C581-97590
New Aftermarket Version SVO7E Compressor with 1 Groove Clutch - 111mm, Single Groove Clutch, 12V, 3.547 Lower Ear Outside Dimensions, 2.404 Lower Ear Inside Dimensions

Condenser Replacement Is Required On Applications With Parallel Flow Style Condenser. Refer to Model For Required Condenser.

3.547 Lower Ear Outside Dimensions, 2.404 Lower Ear Inside Dimensions

Replaces 3C581-97590, 3C581-50060, 503-1823

Fits MAHINDRA: 1538

Specifications
COMPRESSOR TYPE SVO7E
OIL TYPE ND-Oil 8, Pag 46
CLUTCH DIAMETER 111mm, 4.38"
VOLTAGE 12
GROOVES 1
BELT WIDTH .437, 7/16"
COIL POSITION 10 o'clock
GAUGE LINE 59mm, 2.32" Top Ear to Center of Groove

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Compressor, New

Price: $440.00

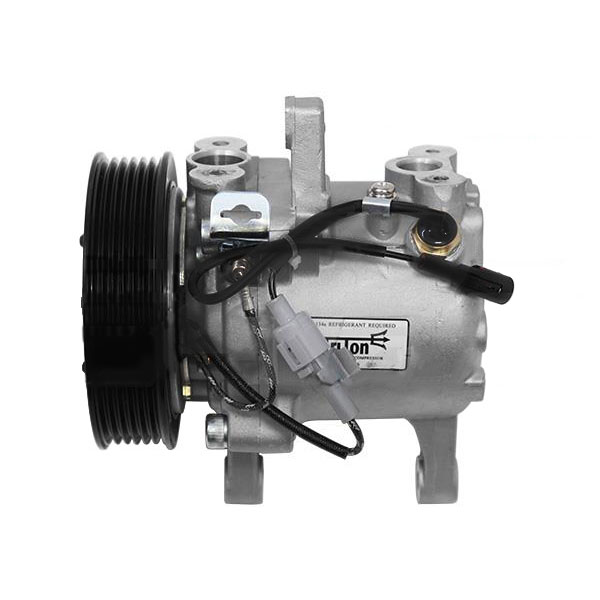

UMA999998 Compressor, New - 3P999-00620

UMA999998 Compressor, New - 3P999-00620
New Alternative SVO7E Compressor - 112.8mm, 6 Groove Clutch, 12V

Condenser Replacement Is Required On Applications With Parallel Flow Style Condenser. Refer to Model For Required Condenser.

Replaces 3P999-00620, 503-1813

Fits MAHINDRA: 1538

Specifications
COMPRESSOR TYPE SVO7E
OIL TYPE ND-Oil 8, Pag 46
CLUTCH DIAMETER 112.80mm, 4.45"
VOLTAGE 12
GROOVES 6
BELT WIDTH Serpentine
COIL POSITION 10 o'clock
MOUNTING HOLES EAR
GAUGE LINE 1.33" Bottom Ear to Center of Pulley

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Compressor, New

Price: $400.00
