Expansion Valve

UJD999587 Expansion Valve - Replaces AL207288

UJD999587 Expansion Valve - Replaces AL207288

 Replaces AL207288, 8486364, F816.550.050.010, 3660853C2, 70.321.02.069, 903-739

Fits JOHN DEERE: 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6140R, 6145R, 6150R, 6155R, 6170R, 6175R, 6190R, 6210R

Specifications
TYPE O-Ring
LIQUID INLET #6, 3/8" O-Ring
LIQUID OUTLET TO EVAPORATOR #8, 1/2" O-Ring
INLET FROM EVAPORATOR #10, 5/8" O-Ring
OUTLET TO COMPRESSOR #12, 3/4" O-Ring
TONAGE 2

Price: $56.00

UJD999787 Expansion Valve, Flare - Replaces AR49961

UJD999787 Expansion Valve, Flare - Replaces AR49961

 Internally Equalized With 12" Capillary Tube, R12 and R134a Compatible, Flare

Replaces SFD017844, SFD251038, 72084697, 393352C1, AR49961, 529876M91, 529877M1, A22-14420-1, 168903C1, 244562R1, 70179C1, 9617883, UT99123, UJD999787, UM5000, UT90695, 900-150

Fits FORD NEW HOLLAND: FW20, FW30, FW40, FW60

Fits CASE INTERNATIONAL: International: 656, 706, 756, 806, 856, 2656, 2706, 2756, 2806, 2856, 4366, 4386, 4568, 4586, 4786

Fits JOHN DEERE: 4520, 7520, 7520-4WD

Fits MASSEY FERGUSON: 1085, 1105, 1135, 1155, 1500, 1505, 1800, 1805, 4800, 4840, 4880, 4900

Specifications
TYPE Flare
LIQUID INLET #6, 3/8" Male Flare
LIQUID OUTLET #8, 1/2" Male Flare
BULB TYPE 3/8" Coil
EQUALIZER TUBE LENGTH N/A
TONAGE 1.5
CAPILLARY TUBE LENGTH 12"

Price: $39.00

UJD999896 Expansion Valve - Replaces RE13886

UJD999896 Expansion Valve - Replaces RE13886

 Aftermarket 14" Capillary Tube - Coil Type

Replaces RE13886, 2G-0401, 3E-9343, 1280333C2, AH204686, RE206757, 3321511M91, AH140818, AR58482, RE206757, UCA99304, UJD999896, 902-215

Fits CASE INTERNATIONAL: 585, 595, 685, 695, 885, 895

Fits JOHN DEERE: 2355, 2555, 2755, 2855N, 2955, 3155
2940
2350, 2550, 2750, 2950
4030, 4230, 4430, 4630
4040, 4240, 4440, 4640, 4840
4055, 4255, 4455, 4555, 4755, 4955
4050, 4250, 4450, 4650, 4850

Specifications
TYPE O-Ring
LIQUID INLET #6, 3/8" O-Ring
LIQUID OUTLET #8, 1/2" Male O-Ring
BULB TYPE 3/8" Coil
EQUALIZER TUBE LENGTH 16"
TONAGE 1 1/2"
CAPILLARY TUBE LENGTH 14"
EQUALIZER TYPE 1/4" Female O-Ring

Price: $40.00

UJD999897 Expansion Valve - Replaces RE13886

UJD999897 Expansion Valve - Replaces RE13886

 OE Style Bulb With 9" Capillary Tube

Replaces RE13886, AT60277, AH204686, AH140818, RE206757, AL28638, WR51414, AR58482, 902-212

Fits JOHN DEERE: 2355, 2555, 2755, 2855N, 2955, 3155, 2940, 2350, 2550, 2750, 2950, 4030, 4230, 4430, 4630, 4040, 4240, 4440, 4640, 4840, 4055, 4255, 4455, 4555, 4755, 4955
4050, 4250, 4450, 4650, 4850

Externally Equalized 9" Capillary Tube
R12 and R134a Compatible

Specifications
TYPE O-Ring
LIQUID INLET #6, 3/8" Male O-Ring
LIQUID INLET TO EVAPORATOR #8, 1/2" Male O-Ring
BULB TYPE 1/2" Bulb
EQUALIZER TUBE LENGTH 9"
EQUALIZER TYPE 1/4" Female O-Ring
TONAGE 1 1/2"
CAPILLARY TUBE LENGTH 9"

Price: $38.00

UA98222 Expansion Valve - Replaces AH140818

UA98222 Expansion Valve - Replaces AH140818

 Coil Type, R12 and R134a Compatible, Externally Equalized With 14" Capillary Tube

Replaces UM5003, UM99093, UT90691, RE13886, AH140818, AR58482, RE206757, 70268470, 3321511M91, 3380223M1, 118305C3, 1280333C2, 1280333C1, 2G-0401, 60012-5002, 3551655M91, BN69872, AL37525, 3E-9343, 902-210

Fits JOHN DEERE: 2355, 2555, 2755, 2855N, 2955, 3155, 2940, 2350, 2550, 2750, 2950, 4030, 4230, 4430, 4630, 4040, 4240, 4440, 4640, 4840, 4055, 4255, 4455, 4555, 4755, 4955, 4050, 4250, 4450, 4650, 4850

Fits CASE INTERNATIONAL: 786 (SN 10592 to 107806), 886 (SN 14354 to 107806), 986 (SN 19122 to 107806), 1086 (SN 34298 to 107806), 1486 (SN 18586 to 107806), 1586 (SN 16528 to 107806), 3388 (Cab SN 107806 and Below), 3588 (Cab SN 107806 and Below), 3788 (Cab SN 107806 and Below), Hydro 186 (Cab SN 10592 to107806)

Fits MASSEY FERGUSON: 670, 690, 698, 699, 2640, 2675 (SN 9R9445 & Above), 2705 (SN 9R9445 & Above), 2745 (SN 9R9445 & Above), 2775 (SN 9R9445 and Above), 2805 (SN 9R9445 & Above), 3505, 3525, 3545

Fits ALLIS CHALMERS: 7000 (SN 8001 & Above, Black Frame), 7010, 7020, 7045, 7060 (SN 6001 & Above, Black Frame), 7080 (SN 3001 & Above, Black Frame)

Specifications
TYPE O-Ring
LIQUID INLET #6, 3/8" O-Ring
LIQUID OUTLET #8, 1/2" Male O-Ring
BULB TYPE 3/8" Coil
EQUALIZER TUBE LENGTH 16"
TONAGE 2
CAPILLARY TUBE LENGTH 14"
EQUALIZER TYPE 1/4" Female O-Ring

Price: $40.00

UJD999966 Expansion Valve - Replaces RE174764

UJD999966 Expansion Valve - Replaces RE174764

 R12 and R134a Compatible

Replaces AL160578, RE283957, RE174764, AL219020, SJ32588, AL225312, 903-727

Fits JOHN DEERE: 4320 Utility, 4720 Utility, 5085E, 5100E, 5101E,
5065M, 5095M, 5095MH, 5100M, 5100MH,
5220, 5320, 5420, 5520,
5225, 5325, 5425, 5525, 5625,
6100D, 6105D, 6110D, 6115D, 6125D, 6130D (Must ID By OEM Number), 6140D,
6120, 6220, 6230, 6420,
6230, 6330, 6430,
7220, 7320, 7420, 7520MFWD, 7720, 7820, 7920,
8110, 8210, 8310, 8410,
8120, 8220, 8320, 8420, 8520,
8130, 8230, 8330, 8430, 8530

Specifications
TYPE O-Ring
LIQUID INLET #6, 3/8" O-Ring
LIQUID OUTLET TO EVAPORATOR #8, 1/2" O-Ring
INLET FROM EVAPORATOR #10, 5/8" O-Ring
OUTLET TO COMPRESSOR #12, 3/4" O-Ring
TONAGE 2

Price: $50.00

UJD99036 Expansion Valve - Replaces AH144896

UJD99036 Expansion Valve - Replaces AH144896

 Externally Equalized With 19" Capillary Tube

Replaces number UA98221, UT90694, UJD99036, D3NN19849A, 1336422C1, 1072136M91, V63145, 70257322, 60012-0011, AH144896, 66398C1, 1072136M91, 900-170

Fits FORD NEW HOLLAND: 8000 (04/01/1973 to 09/30/1976), 8600 (04/01/1973 and Newer) 9000 (04/01/1973 to 09/30/1976), 9600 (04/01/1973 and Newer)

Fits CASE INTERNATIONAL: International: 786 (Serial Number 10591 and Below), 886 (Serial Number 14353 and Below), 986 (Serial Number 19121 and Below), 1086 (Serial Number 34297 and Below), 1486 (Serial Number 18585 and Below), 1586 (Serial Number 16527 and Below), 4166, 4186, Hydro 186 (Serial Number 10591 and Below)

Fits JOHN DEERE: Some Models

Fits ALLIS CHALMERS: 200 (Serial Number 4001 & Above), 7000 (Serial Number 8000 & Below, Red Frame), 7030, 7040, 7045, 7050, 7060 (Serial Number 6000 & Below, Red Frame), 7080 (Serial Number 3000 & Below, Red Frame)

Specifications
LIQUID OUTLET TO EVAPORATOR # 8, 1/2" Male Flare
BULB TYPE 3/8" Coil
EQUALIZER TUBE LENGTH 31"
CAPILLARY TUBE LENGTH 19"
TYPE Flare
LIQUID INLET # 6, 3/8" Male Flare
TONAGE 2
EQUALIZER TYPE 1/4" Female Flare Externally Equalized

Price: $40.00

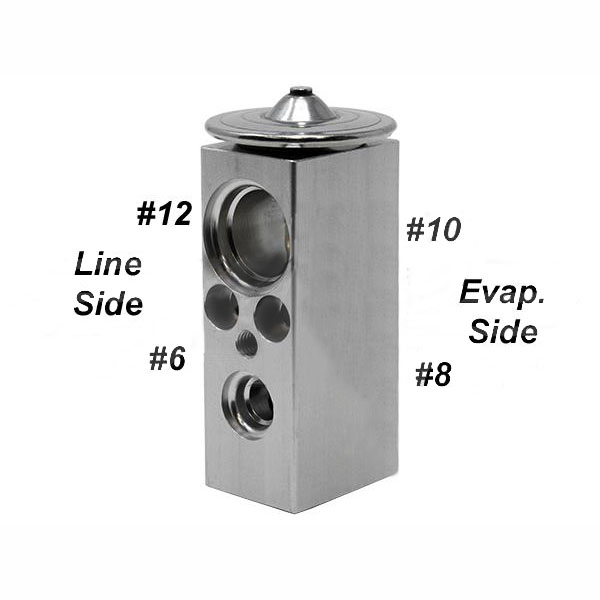

UJD99040 Expansion Valve - Replaces RE57575

UJD99040 Expansion Valve - Replaces RE57575

 Expansion valve, block valves. R12 and R134a compatible.

Replaces number RE57575, 903-725

Fits JOHN DEERE: 5200, 5210, 5300, 5310, 5400, 5410, 5500, 5510, 6110, 6210, 6310, 6310S, 6410, 6410S, 6510, 6510S,
7200- Serial Number 003823 and Above, with 7-65804 or 7-65807
7400- Serial Number 005043 and Above, with #12 Outlet to Compressor Port
7600- Serial Number 008004 and Above, with #12 7-65804 Exp Valve to Suction Line Pipe
7700- Serial Number 008004 and Above, with #12 7-65804 Exp Valve to Suction Line Pipe
7800- Serial Number 008004 and Above, with #12 7-65804 Exp Valve to Suction Line Pipe
7210, 7410, 7510, 7610, 7710, 7810, 8100, 8100T, 8200, 8200T, 8300, 8300T, 8400, 8400T, 9100, 9200, 9230, 9300, 9300T, 9400, 9400T, 9430T, 9530T, 9630T.
8110, 8210, 8310, 8410

Specifications
TYPE O-Ring
LIQUID INLET #6, 3/8" O-Ring
LIQUID OUTLET TO EVAPORATOR #8, 1/2" O-Ring
INLET FROM EVAPORATOR #10, 5/8" O-Ring
OUTLET TO COMPRESSOR #12, 3/4" O-Ring
TONAGE 2

Price: $48.00

UJD99041 Expansion Valve---Replaces AL77579

UJD99041 Expansion Valve---Replaces AL77579

 Must Identify Evaporator Inlet and Outlet Size - #8 O-Ring In and #10 O-Ring Out
Expansion valve, block valves. R12 and R134a compatible
Use with AP Air Aftermarket Evaporator 590-3042

Replaces - AL77579, RE62137, AL160645, AT275040, 903-745

Fits JOHN DEERE: 5310N, 5320N, 5325N, 5400N, 5420N, 5425N, 5500N, 5510N, 5520N, 5525N, 6200, 6200L, 6215, 6300, 6300L, 6400, 6400L, 6415, 6500, 6500L, 6605, 6615, 6715, 7210,
7200- Serial Number 003822 and Below
7400-Serial Number 005042 and Below
7600-Serial Number 008003 and Below
7700-Serial Number 008003 and Below
7800-Serial Number 008003 and Below
7410, 7505, 7510, 7700, 7710

Specifications
TYPE O-Ring
LIQUID INLET #6, 3/8" O-Ring
LIQUID OUTLET TO EVAPORATOR #8, 1/2" O-Ring
INLET FROM EVAPORATOR #10, 5/8" O-Ring
OUTLET TO COMPRESSOR #10, 5/8" O-Ring

Price: $47.00
