Float Ride Seat Parts

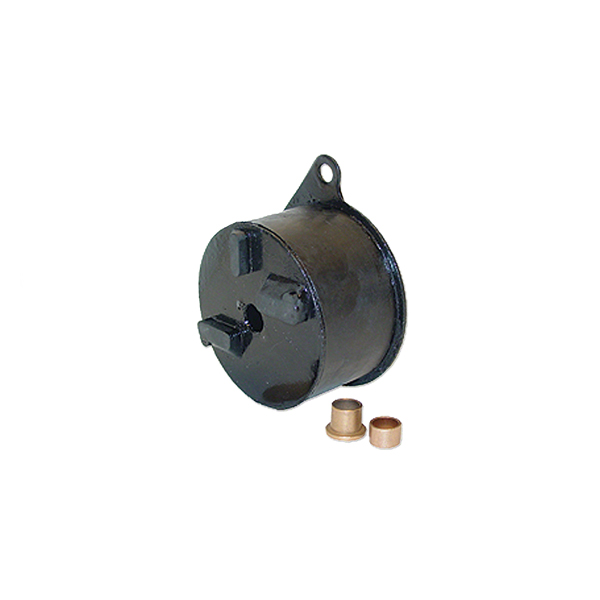

UJD83865 Rubber Torsion Seat Spring - AT11049

UJD83865 Rubber Torsion Seat Spring - AT11049
Rubber Torsion Seat Spring

Replaces AT11049, ES1854V, ES1854, OLS084

Fits JOHN DEERE: With Optional Float Ride Seat - 420, 430, 435, 1010

Rubber Torsion Seat Spring

Replaces AT11049, ES1854V, ES1854, OLS084

Fits JOHN DEERE: With Optional Float Ride Seat - 420, 430, 435, 1010

Fits OLIVER: Super 55 (SN 18135 & After), 550, 1550 (w/ pan style seat)

Includes the mounting bushings
Bushings must be reamed or honed to install

Rubber Torsion Seat Spring

Price: $74.00

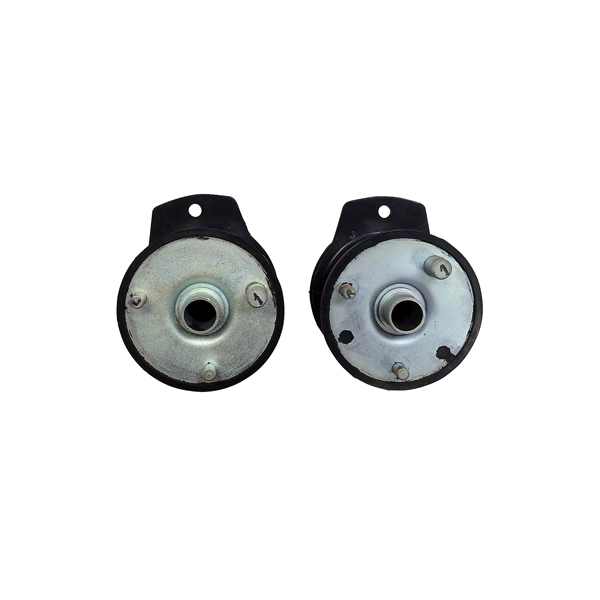

UJD83866 Rubber Torsion Seat Spring Set - Left & Right - AF23422R

UJD83866 Rubber Torsion Seat Spring Set - Left & Right - AF23422R
Rubber Torsion Seat Spring Set - Left & Right

Replaces AF23422R, AF3422, AR20350, AR20350R, AR39648, AR39649, JDS2686

Fits JOHN DEERE: 50, 80, 520, 530, 620, 630, 720, 730, 820 (2 Cyl), 830 (2 Cyl)

Rubber Torsion Seat Spring Set - Left & Right

Price: $145.00

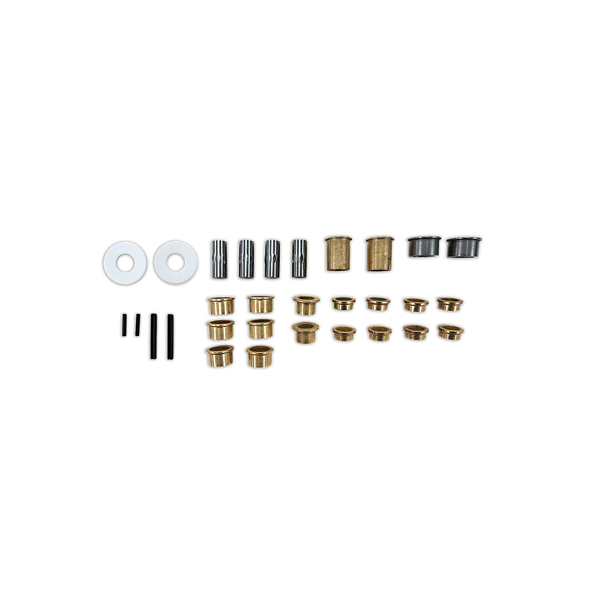

UJD83868 Pin & Bushing Kit for Float Ride Seat

UJD83868 Pin & Bushing Kit for Float Ride Seat


Pin & Bushing Kit for Float Ride Seat

Replaces JDS489

Fits JOHN DEERE: with Float Ride Seat - 50, 520, 530, 620, 630, 720, 730, 820 (2 Cyl), 830 (2 Cyl), 840 (2 Cyl, SN 8400200 & After)

34H41H Roll Pin 1/8" x 3/4" - qty 2
34H81N - Roll Pin 3/16" x 1-1/2" - qty 2
F3293R - Bushing Flanged - qty 6
F3295R - Torsion Spring Inner Bushing - qty 2
F3298R - Short Link Flanged Bushing - qty 8
F3302R - Short Link Drive Pin - qty 4
F3451R - Thrust Washer - qty 2
R20236R - Stabilizing Link Bushing - qty 2
R20937R - Torsion Spring Outer Bushing - qty 2

Pin & Bushing Kit for Float Ride Seat

Price: $60.00

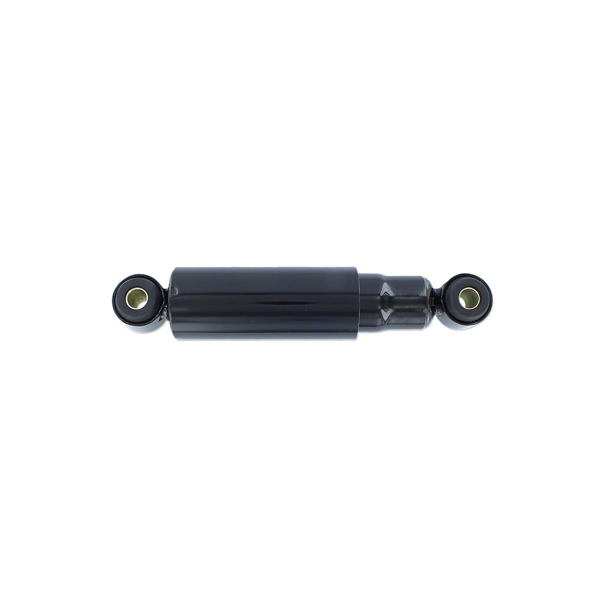

UJD83869 Seat Shock Absorber - AF3426R

UJD83869 Seat Shock Absorber - AF3426R
Seat Shock Absorber with rubber bushings

Replaces AF3426R, JDS411

Fits JOHN DEERE: with Float Ride Seat - 50, 80, 520, 530, 620, 630, 720, 730, 820 (2 Cyl), 830 (2 Cyl)

8-3/4" compressed, center to center
13" fully extended, center to center
Includes rubber bushings

Seat Shock Absorber

Price: $46.00

UA91374 Rubber Seat Bushing - 222488

UA91374 Rubber Seat Bushing - 222488
Rubber Seat Shock Bushing

Replaces 222488, 70222488, T19118, 230288, 250416R1, 72696R1, F3296R, R26832, 760674M1, IHS325

Fits ALLIS CHALMERS: B, C, CA, D10, D12, D14, D15, D17, D19, D21, RC, U, WC, WD, WD45, WF, 170, 175, 180, 185, 190, 190XT, 200, 210, 220, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, 7580

Fits CASE: equipped w/ Monroe Easy Ride seat - S, SC, C, CC, CI, D, DC, DC-3, DC-4, DCS, DH, DI, DO, DV, SC-3, SC-4, SI, SO

Fits FORD: equipped w/ Monroe Easy Ride seat - 9N (1939-1952), 2N, (1939-1952), 8N (1939-1952), Jubilee (1954), NAA (1953)

Fits INTERNATIONAL: C, Super C, H, HV, Super H, Super HV, M, MD, Super M, Super MD, Super MDV, MDV, MTA, MV, Super MV, F20 (with Monroe Easy Ride seat), F30 (w/ Monroe Easy Ride seat), 200, 230, 300, 350, 400, 450, 460, 560, 600, 650, 660

Fits JOHN DEERE: A (w/ Easy Ride seat), B (w/ Easy Ride seat), G (w/ Easy Ride seat), L (w/ Easy Ride seat), LA (w/ Easy Ride seat), 50 (w/ Float Ride seat), 520 (w/ Float Ride seat), 530 (w/ Float Ride seat), 620 (w/ Float Ride seat), 630 (w/ Float Ride seat), 720 (w/ Float Ride seat), 730 (w/ Float Ride seat), 80 (w/ Float Ride seat), 820 (2 Cyl, w/ Float Ride seat), 830 (2 Cyl, w/ Float Ride seat), 1020, 1030, 1520, 2020, 2030, 2035, 2130, 2135, 2140 (SN 430000 & After), 2350, 2440 (SN 340999 & After), 2510, 2520, 2550, 2630, 2640 (SN 340999 & After), 2750, 2940, 2950, 3010, 3020, 3130, 3040 (SN430000 & After), 3135, 3140 (SN 430000 & After), 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520, 8430, 8630

Fits MASSEY HARRIS: Challenger (w/ Monroe Easy Ride seat), Mustang (23), 22, 30, 33, 44, 333, 444, 555

Fits MINNEAPOLIS MOLINE: equipped w/ Monroe Easy Ride seat - BF, BG, BIG, General

Fits OLIVER: equipped w/ Monroe Easy Ride seat - 60, 70, 80, 90

For the horizontal bolt hole(s)
1.223" outside diameter at the largest point
0.597" hole inside diameter
0.724" overall length

Seat Shock Bushing, Rubber

Price: $3.00

UJD83871 Seat Adjustment Handle - AF3427R

UJD83871 Seat Adjustment Handle - AF3427R
Seat Adjustment Handle

Replaces G45001, VT5502, VTA3341, NDA462A, 372738R91, 372739R91, 373656R91, 380725R91, AF3427R, 1016119M91, 1KS1855B, JDS533

Fits CASE: with Easy Ride Seat - 200, 200B, 210, 210B, 211, 211B, 300, 301B, 300B, 310B, 311, 311B, 312, 312B, 320, 320B, 350, 351, 400B, 410B, 411B, 420B, 430, 431, 441, 470, 480, 500B, 530, 531, 540, 541, 570, 600B, 610B, 611B, 614B, 630, 631, 632, 634, 640, 641, 642, 644, 700 (Orchard Only), 730 (SN 8253501 thru 8312174), VAC-14

Fits FORD: 1955 - 1964 with Rest-O-Ride Seat - 501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660, 661, 671, 981, 700, 701, 740, 741, 771, 800, 801, 811, 820, 821, 840, 841, 850, 851, 860, 861, 871, 881, 900, 901, 941, 950, 951, 960, 961, 971, 981, 200 (4 Cyl), 2031, 2110, 2111, 4000 (4 Cyl), 4031, 1801 (Ind), 1811 (Ind), 1821 (Ind),

Fits INTERNATIONAL: Hydro 100, 460, 504, 544, 560, 656, 660, 666, 686, 706, 756, 766, 806, 826, 856, 966, 1026, 1066, 1206, 1256, 1456, 1466, 1468, 1566, 1568, 4100, 4156, 4166, 4186

Fits JOHN DEERE: with Float Ride Seat - 50, 520, 530, 620, 630, 720, 730, 80, 820 (2 Cyl), 830 (2 Cyl), 840 (2 Cyl, SN 8400200 & After)

Fits OLIVER: Super 44, 66, Super 66, 70 (when change to late seat with rubber torsion springs), 77, Super 77, 88, Super 88, 660, 770, 880, Super 99, 440, 950, 990

10" overall length
(2) 0.340" outside diameter
Note: Roll Pins not included
Fits Float Ride & Easy Ride Seats

Handle, Seat Adjustment

Price: $29.00

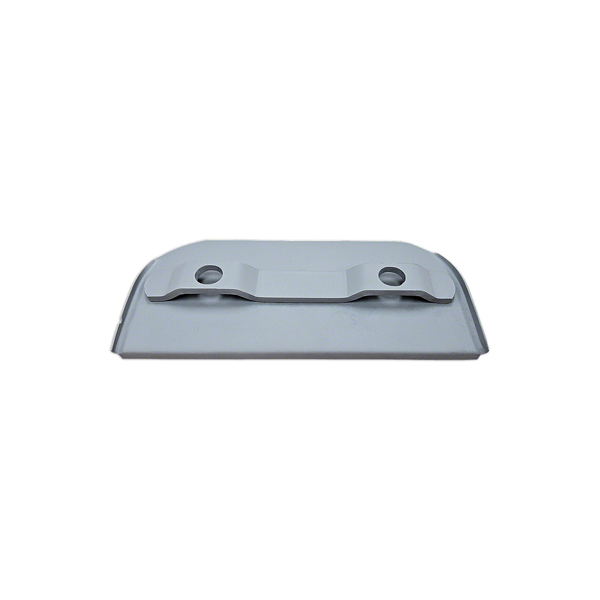

UJD83872 Tie Bar - AF3428R

UJD83872 Tie Bar - AF3428R
Tie Bar

Replaces AF3428R, JDS532

Fits JOHN DEERE: with Float Ride Seat - 50, 520, 530, 620, 630, 720, 730, 820 (2 Cyl), 830 (2 Cyl), 840 (2 Cyl, SN 8400200 & After)

Price: $54.00

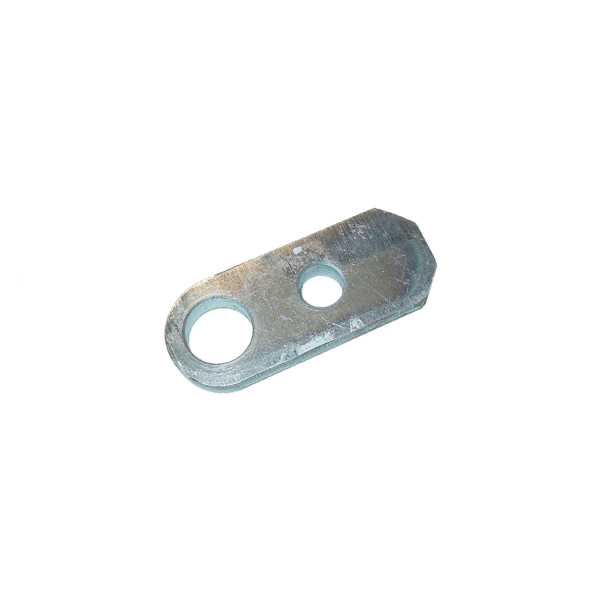

UJD83873 Seat Short Link - AF3421R

UJD83873 Seat Short Link - AF3421R
Seat Short Link

Replaces AF3421R, JDS822

Fits JOHN DEERE: with Float Ride Seat - 50, 80, 520, 530, 620, 630, 720, 730, 820 (2 Cyl), 830 (2 Cyl), 840 (2 Cyl, SN 8400200 & After)

4 used per tractor
Measures 3-1/8" long

Price: $24.00
