Seat Parts for 1965 Models & Later

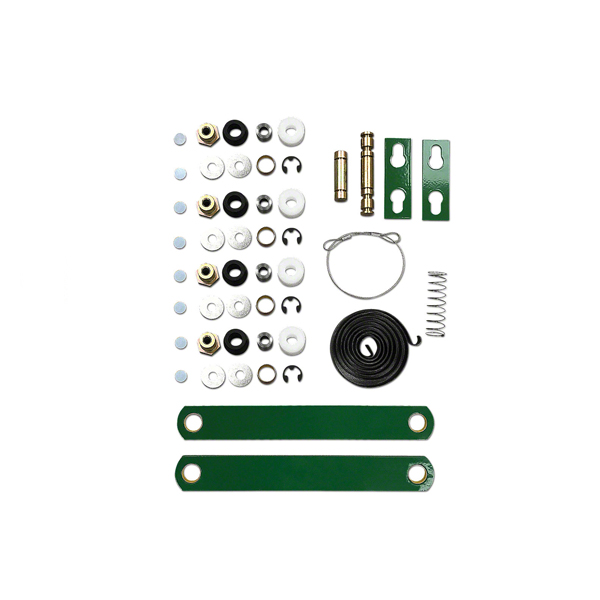

UJD83310 Seat Suspension Repair Kit

UJD83310 Seat Suspension Repair Kit
Seat Suspension Repair Kit

Replaces A4744R (Spring), AR26403 (Cable), R26433 (Flat spring), R26436 (Plastic rollers - 4 pieces), R26832 (Rubber bushings - 4 pieces), R26875 (Pin), R26876 (Pin), R26878 (Flat links - 2 pieces), R27440 (Bushings - 4 pieces), R27441 (Washer - 8 pieces), R31260 (Flat spring), R36704 (Bushing / washer - 8 pieces), R51648 (Bushing / washer - 8 pieces), R78257 (Cable), JDS3237

Fits JOHN DEERE: using deluxe 3-piece seat cushions - 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4320, 4520, 4620, 5010, 5020, 6030, 7020, 7520

This repair kit is for tractors with a deluxe 3 - piece seat cushions

.

Price: $220.00

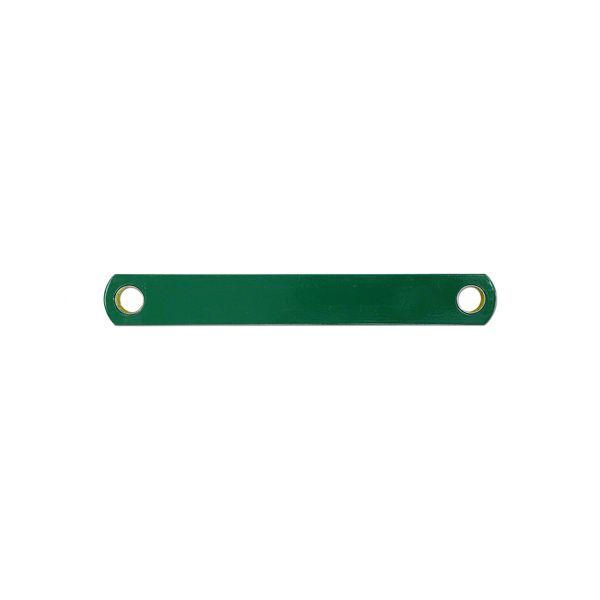

UJD83311 Seat Suspension Link with Bushings - AR31977

UJD83311 Seat Suspension Link with Bushings - AR31977
Seat Suspension Link

Replaces AR31977, AR26631, R51648, JDS3416

Fits JOHN DEERE: using deluxe 3-piece seat - 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4320, 4520, 4620, 5010, 5020

1.500" wide
0.375" thick
11.500" overall length
2 used per tractor

Price: $35.00

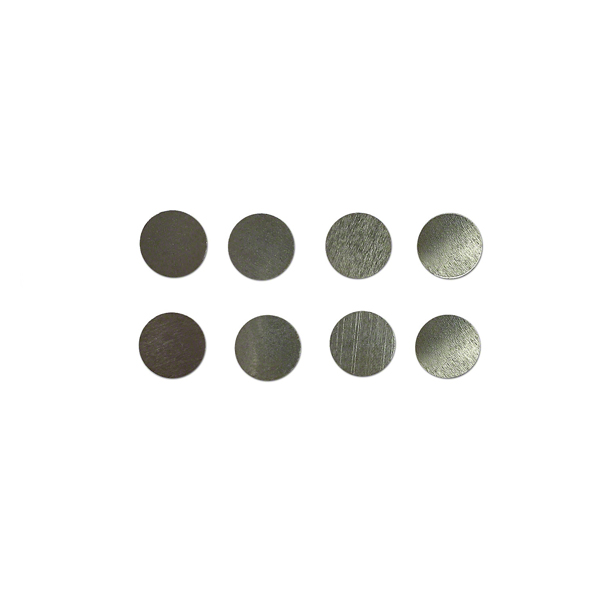

UJD83312 Seat Roller Shim Kit - R26872

UJD83312 Seat Roller Shim Kit - R26872
Seat Roller Shim Kit

Replaces R26872, R26873, JDS3493

Fits JOHN DEERE: 2010 (SN 19239 & Before), 2350 (w/ Sound Gard body), 2140 (430000 & Before w/ Sound-Gard body), 2510, 2520, 2550 (w/ Sound-Gard body), 2750 (w/ Sound-Gard body), 2940 (w/ Sound Gard body), 2950 (w/ Sound-Gard body), 3010 (SN 13498 & Before), 3020, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 44320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520, 8430, 7630

0.484" outside diameter
(4) shims 0.010" thick
(4) shims 0.020" thick
Fits Seat Roller R26436

Seat Roller Shim Kit

Price: $10.00

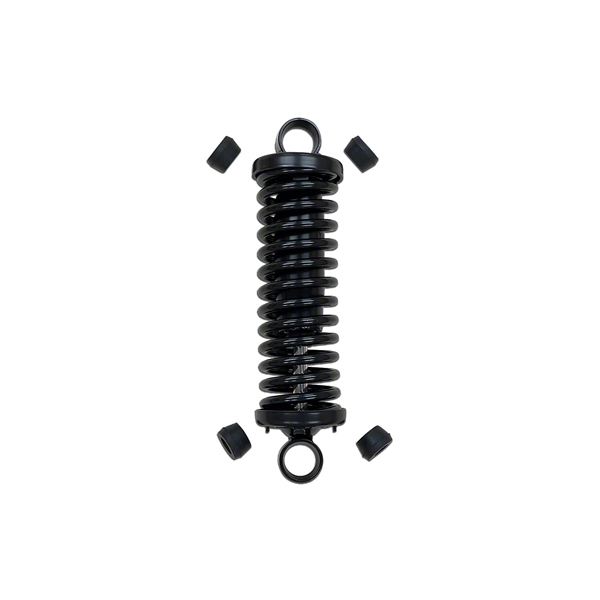

UJD83290 Seat Shock Absorber Assembly, Complete - AR26529

UJD83290 Seat Shock Absorber Assembly, Complete - AR26529
Seat Shock Absorber Assembly for Deluxe Seat

Replaces: RE62234, AR26529, AR71976, LOWER CAP: R26879, SPRING: R26877, BUSHING: R26832, UPPER CAP: R27442, SHOCK ONLY: AR69854, JDS807

Fits JOHN DEERE: 1020, 1030, 1520, 1635, 2010, 2020, 2030, 2130, 2135, 2140 (SN 430000 & After), 2035, 2350, 2440 (SN 340999 & Before), 2510, 2520, 2550, 2630, 2640 (SN 340999 & Before), 2750, 2940, 2950, 3010, 3020, 3040 (SN 430000 & After), 3130, 3140, (SN 430000 & After), 3135, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4250, 4255, 4240, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520, 8430, 8630

7.625" (7-5/8") center to center fully compressed
10.5" (10-1/2") center to center (of holes at each end) extended

Seat Shock Absorber Assembly for Deluxe Seat

Price: $150.00

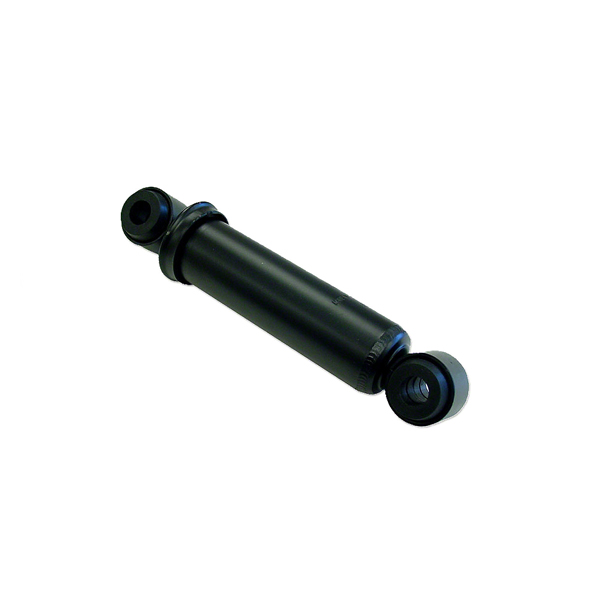

UJD83291 Seat Shock Absorber - R62234

UJD83291 Seat Shock Absorber - R62234
Seat Shock Absorber

Replaces RE62234, AR27572, JDS807S

Fits JOHN DEERE: 1020, 1030, 1520, 1635, 2010, 2020, 2030, 2130, 2135, 2140 (SN 430000 & After), 2035, 2350, 2440 (SN 340999 & Before), 2510, 2520, 2550, 2630, 2640 (SN 340999 & Before), 2750, 2940, 2950, 3010, 3020, 3040 (SN 430000 & After), 3130, 3140, (SN 430000 & After), 3135, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4250, 4255, 4240, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520, 8430, 8630

Seat Shock Absorber

Price: $80.00

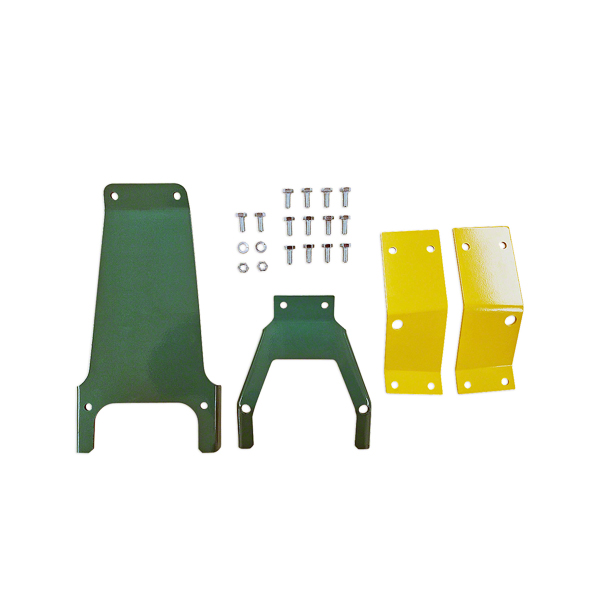

UJD83292 Seat Cushion Support Plate Kit - 27785

UJD83292 Seat Cushion Support Plate Kit - 27785
Seat Cushion Support Plate Kit

Replaces R34282, R31513, R31512, R27785, JDS577

Fits JOHN DEERE: 2020, 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4030, 4320, 4430, 4520, 4620, 4630, 5010, 5020, 6030, 7020, 7520

Kit Includes
large cushion support back plate (R27789, R34272)
small cushion support back plate (R27785)
left hand side support plate (R31513)
right hand side support plate (R31512)
Nuts, bolts, locks

Seat Cushion Support Plate Kit

Price: $130.00

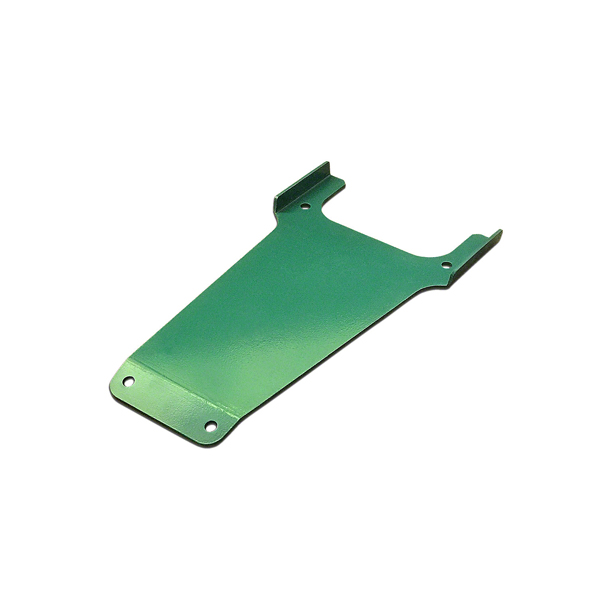

UJD83293 Large Back Plate Seat Cushion Support - R34272

UJD83293 Large Back Plate Seat Cushion Support - R34272
Large Back Plate Seat Cushion Support

Replaces R34272, R27786, JDS572

Fits JOHN DEERE: 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4030, 4230, 4320, 4430, 4520, 4620, 4630, 5010, 5020, 6030, 7020, 7520

Large Back Plate Seat Cushion Support

Price: $45.00

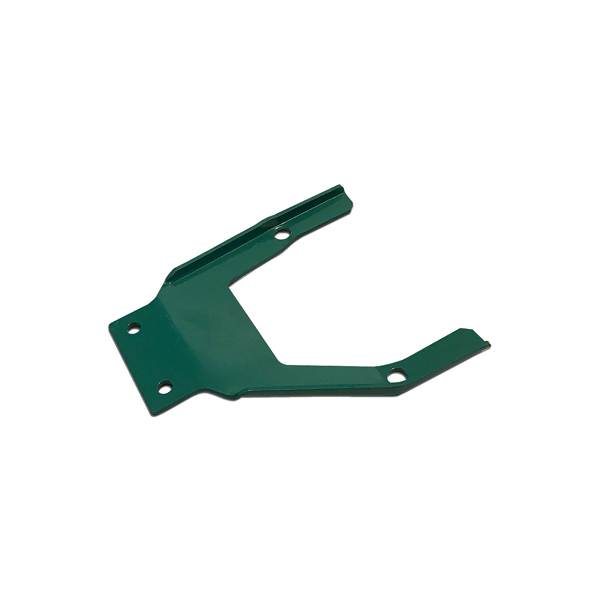

UJD83294 Small Back Plate Seat Cushion Support - R27785

UJD83294 Small Back Plate Seat Cushion Support - R27785
Small Back Plate Seat Cushion Support

Replaces R27785, JDS573

Fits JOHN DEERE: 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4030, 4230, 4320, 4430, 4520, 4620, 4630, 5010, 5020, 6030, 7020, 7520

Small Cushion Support Back Plate

Price: $43.00

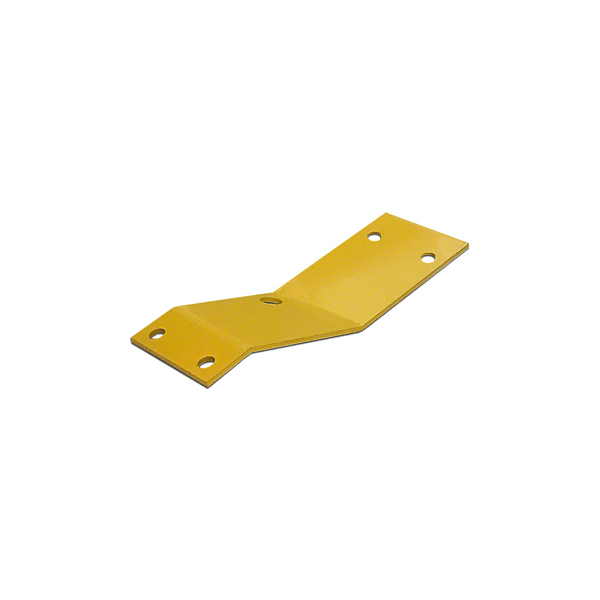

UJD83295 LH Side Seat Cushion Support Plate - R31513

UJD83295 LH Side Seat Cushion Support Plate - R31513
LH Side Seat Cushion Support Plate

Replaces R31513, JDS574

Fits JOHN DEERE: 2010, 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4030, 4230, 4320, 4430, 4520, 4620, 4630, 5010, 5020, 6030, 7020, 7520

(All with Deluxe Seat)

Price: $26.00

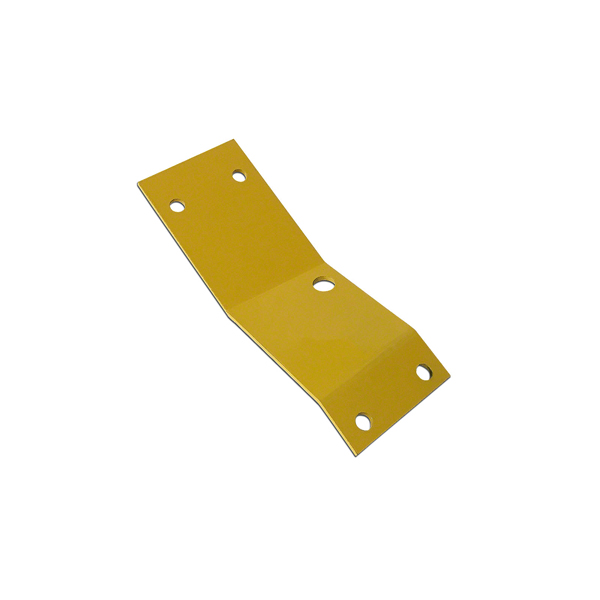

UJD83296 RH Side Seat Cushion Support Plate - R31512

UJD83296 RH Side Seat Cushion Support Plate - R31512
RH Side Seat Cushion Support Plate

Replaces R31512, JDS575

Fits JOHN DEERE: 2010, 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4030, 4230, 4320, 4430, 4520, 4620, 4630, 5010, 5020, 6030, 7020, 7520

RH Side Seat Cushion Support Plate

Price: $26.00

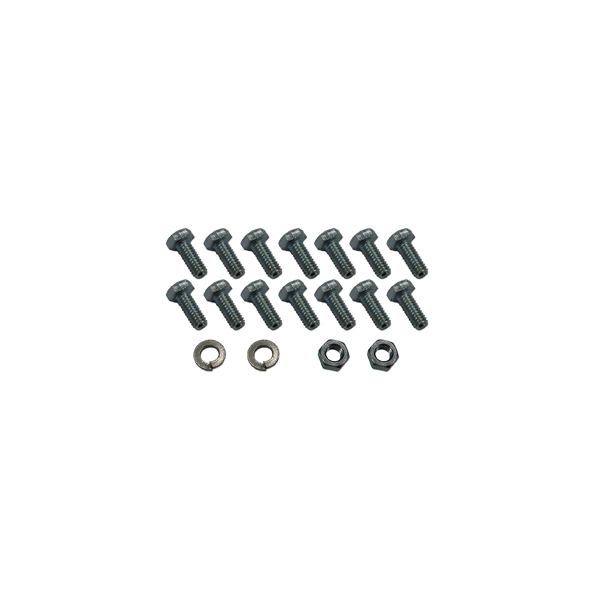

UJD83297 Seat Cushion Support Plate Bolt Kit

UJD83297 Seat Cushion Support Plate Bolt Kit
Replaces JDS576

Fits JOHN DEERE: 2010, 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4030, 4230, 4320, 4430, 4520, 4620, 4630, 5010, 5020, 6030, 7020, 7520

Kit Includes
14 - 5/16"unc x 3/4" length
2 - 5/16" Split Washers
2 - 5/16"unc Hex Nuts

Seat Cushion Support Plate Bolt Kit

Price: $15.00

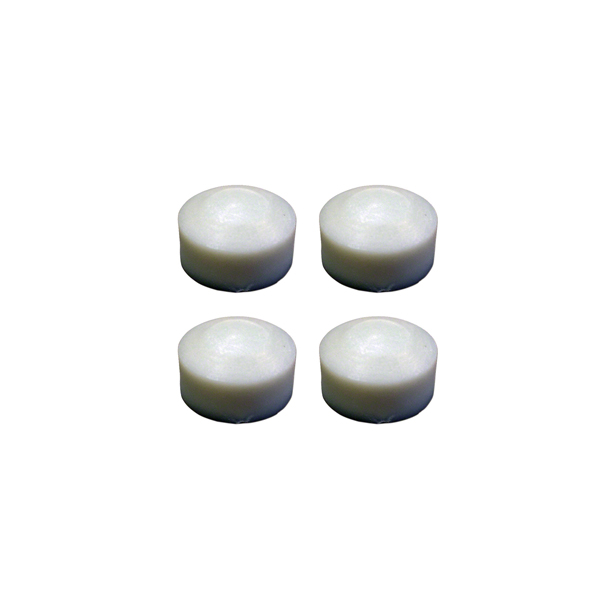

UJD83298 Plastic Seat Roller Set, 4 - R26436

UJD83298 Plastic Seat Roller Set, 4 - R26436
Plastic Seat Roller, 4 Piece Set

Replaces R26436, JDS3227

Fits JOHN DEERE: 2010 (SN 19239 & Before), 2140 (SN 430000 & After with Sound-Gard body), 2350 (with Sound-Gard body), 2510, 2520, 2550 (with Sound-Gard body), 2750 (with Sound-Gard body), 2940 (with Sound-Gard body), 2950 (with Sound-Gard body), 3010 (SN 13498 & Before), 3020, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4250, 4255, 4240, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520, 8430, 8630

1.220" OD
0.653" wide
0.511" blind hole ID

Fits Deluxe and Personal posture seats
4 used per seat

4 Piece Plastic Seat Roller Set

Price: $16.00

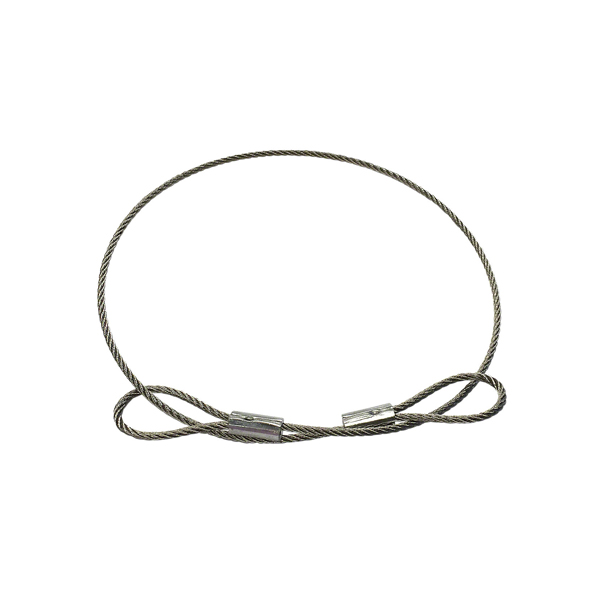

UJD83299 Deluxe Seat Counter Balance Cable - AR26403

UJD83299 Deluxe Seat Counter Balance Cable - AR26403
Deluxe Seat Counter Balance Cable

Replaces AR26403, R78257, JDS3221

Fits JOHN DEERE: with 3-piece deluxe or personal posture seat - 2140 (SN 430000 & After w/ Sound-Gard Body), 2350 (with Sound Gard Body), 2510, 2520, 2550 (with Sound Gard Body), 2750 (with Sound Gard Body), 2940 (with Sound Gard Body), 2950 (with Sound Gard Body), 3010, 3020, 3140 (SN 430000 & After w/ Sound-Gard Body), 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520, 8430, 8630


0.063" cable diameter
13.875" overall length

This cable can also be used as an engine side shield cable for the following tractor models:
4050, 4250, 4450, 4455, 4650, 4850, 5400N, 5500N

Deluxe Seat Counter Balance Cable

Price: $22.00

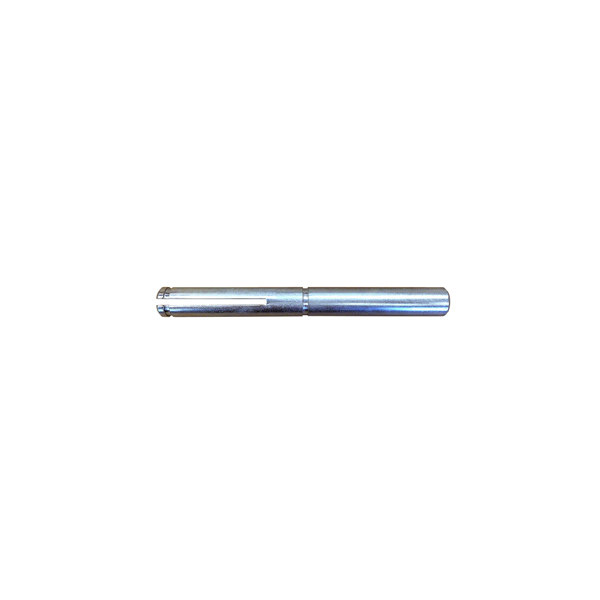

UJD83300 Seat Countershaft Reel Shaft - R26874

UJD83300 Seat Countershaft Reel Shaft - R26874
Seat Countershaft Reel Shaft

Replaces R26874, JDS3228

Fits JOHN DEERE: 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4030 (SN 6754 & Before), 4230 (SN 13095 & Before), 4320, 4430 (SN 17730 & Before), 4520, 4620, 4630 (SN 7055 & Before), 5010, 5020, 6030, 7020 (SN 3157 & Before), 7520 (SN 3074 & Before)

7.188" overall length
0.750" outside diameter

Seat Countershaft Reel Shaft


Price: $58.00

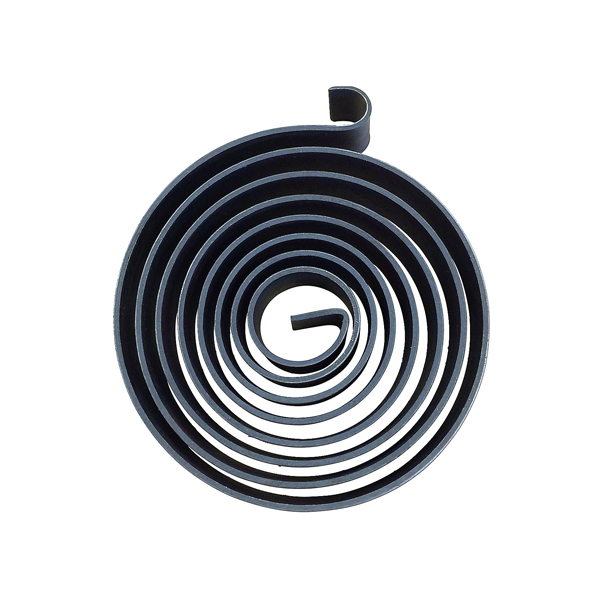

UJD83301 Seat Counterbalance Spring - R31260

UJD83301 Seat Counterbalance Spring - R31260
Seat Counterbalance Spring

Replaces R31260, R26433, JDS3223

Fits JOHN DEERE: 2010, 2140 (SN 430000 & After w/ Sound Gard body), 2350 (w/ Sound Gard body), 2510, 2520, 2550 (w/ Sound Gard body), 2750 (w/ Sound Gard body), 2750 (w/ Sound Gard body), 2940 (w/ Sound Gard body), 2950 (w/ Sound Gard body), 3010, 3020, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520, 8430, 8630

3-5/8" (3.625") relaxed outside diameter
5/8" (0.625") wide

Seat Counterbalance Spring

Price: $40.00

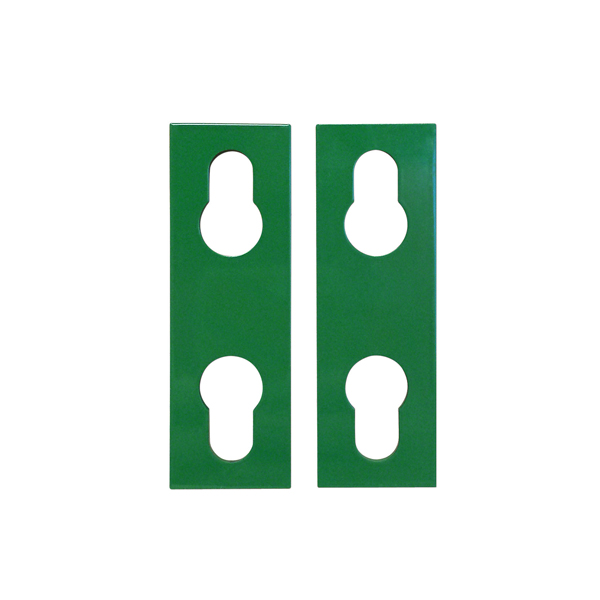

UJD83302 Shock Absorber Lower Shaft Link Plates - R26878

UJD83302 Shock Absorber Lower Shaft Link Plates - R26878
Link Plate, Pair

Replaces R26878, JDS3226

Fits JOHN DEERE: With Deluxe or Personal Posture Seats - 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4250, 4255, 4240, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520

3.800" overall length
1.250" wide

Price: $20.00

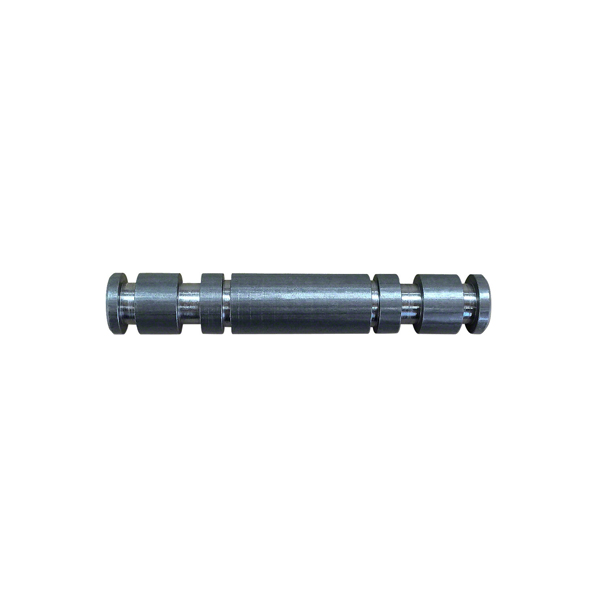

UJD83303 Lower Shock Pin - R26876

UJD83303 Lower Shock Pin - R26876
Lower Shock Pin

Replaces R26876, JDS3225

Fits JOHN DEERE: With Deluxe or Personal Posture Seats - 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4250, 4255, 4240, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520

0.625" outside diameter
3.825" overall length

Lower Shock Pin

Price: $15.00

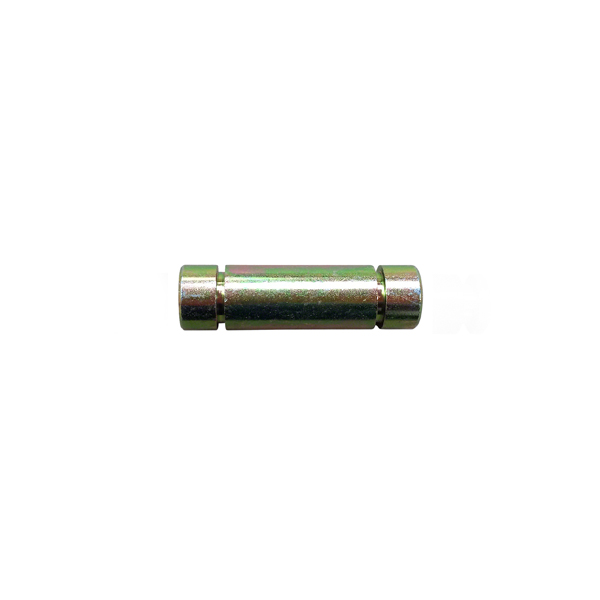

UJD83304 Upper Shock Pin - R26875

UJD83304 Upper Shock Pin - R26875
Upper Shock Pin for Deluxe Seat

Replaces R26875, JDS3222

Fits JOHN DEERE: w/ Deluxe Seat - 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4320, 4520, 4620, 5010, 5020, 6030, 7020, 7520

0.625" outside diameter
2.250" overall length

Upper Shock Pin for Deluxe Seat

Price: $19.00

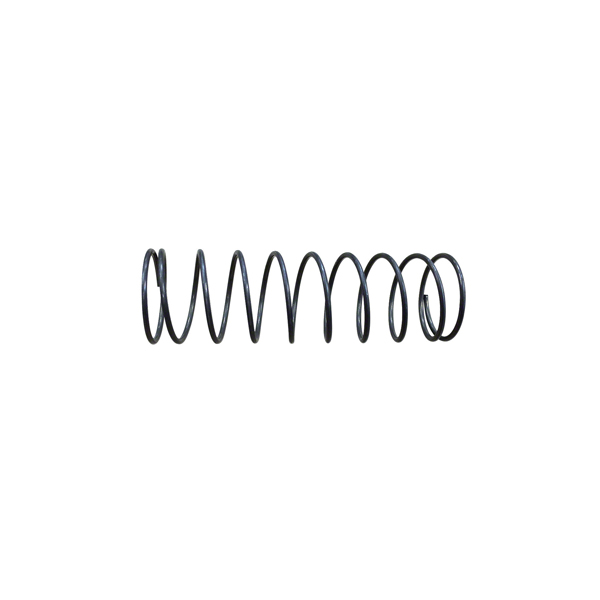

UJD83305 Counterbalance Shaft Spring - A4744R

UJD83305 Counterbalance Shaft Spring - A4744R
Counterbalance Shaft Spring

Replaces A4744R, JDS3229

Fits JOHN DEERE: 2010, 2140 (SN 430000 & After w/ Sound Gard body), 2350 (w/ Sound Gard body), 2510, 2520, 2550 (w/ Sound Gard body), 2750 (w/ Sound Gard body), 2750 (w/ Sound Gard body), 2940 (w/ Sound Gard body), 2950 (w/ Sound Gard body), 3010, 3020, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520, 8430, 8630

10 coils
2.750" overall length
0.054" wire diameter
0.889" outside diameter

This spring can also be used as a hydraulic remote cylinder stop valve spring on A thru 1010

Counterbalance Shaft Spring

Price: $10.00

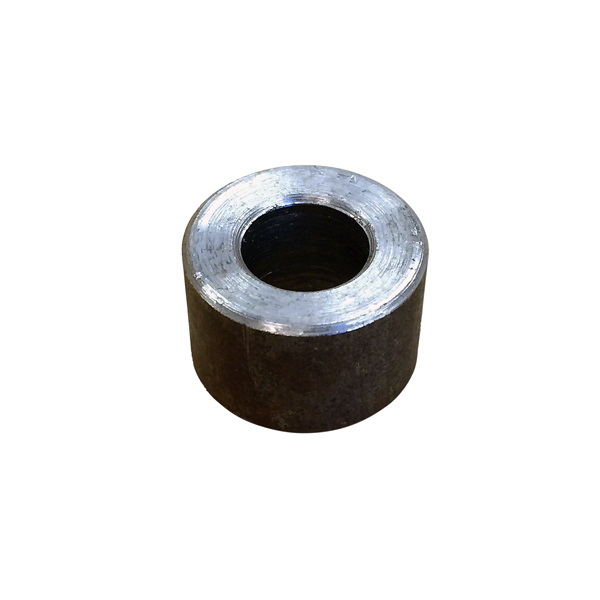

UJD83306 Seat Shock Suspension Arm Bushing - R27440

UJD83306 Seat Shock Suspension Arm Bushing - R27440
Seat Shock Suspension Arm Bushing

Replaces R27440, JDS3218

Fits JOHN DEERE: with Deluxe or Personal Posture Seats - 1020, 1030, 1520, 1630, 1635, 2010, 2020, 2030, 2035, 2130, 2135, 2440 (SN 340999 & Before), 2510, 2520, 2630, 2640 (SN 340999 & Before), 3010, 3020, 3130, 4000, 4010, 4020, 4230, 4320, 4520, 4620, 5010, 5020, 6030, 7020, 7520

0.391" ID
0.747" OD
0.470" wide

Seat Shock Suspension Arm Bushing

Price: $9.00

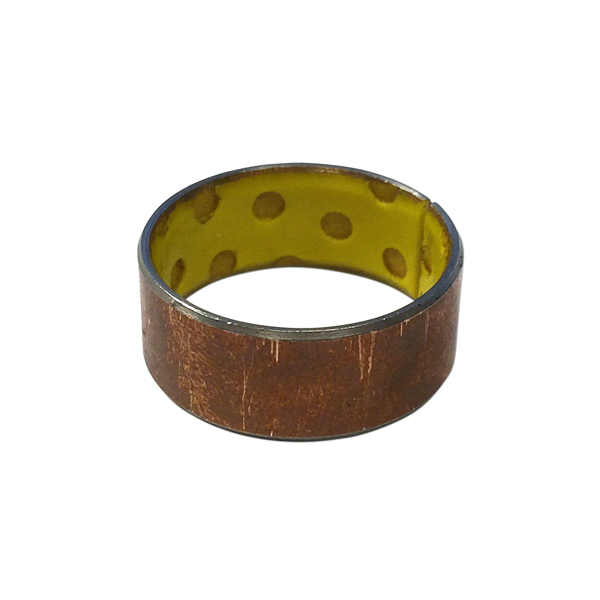

UJD83307 Seat Bushing (Washer) - R51648

UJD83307 Seat Bushing (Washer) - R51648
Seat Bushing for Deluxe or Personal Posture Seat

Replaces R51648, R27116, E36704, JDS3236

Fits JOHN DEERE: Deluxe or Personal Posture Seat - 1020, 1030, 1520, 1630, 2020, 2030, 2035, 2130, 2135, 2140, 2350, 2440 (SN 340999 & Before), 2510, 2520, 2630, 2640 (SN 340999 & Before), 2750, 2940, 2950, 3010, 3020, 3040 (SN 430000 & After), 3130 (SN 50000 & After), 3140 (SN 430000 & After), 3135, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4250, 4255, 4240, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520, 8020, 8430, 8630

0.756" inside diameter
0.878" outside diameter
0.365" wide
0.061" thick

Recommend using either R51649 or R27440 inside of this R27116 bushing, which will allow the correct snug and secure fit into the link AR31977

Seat Bushing for Deluxe or Personal Posture Seat

Price: $7.00

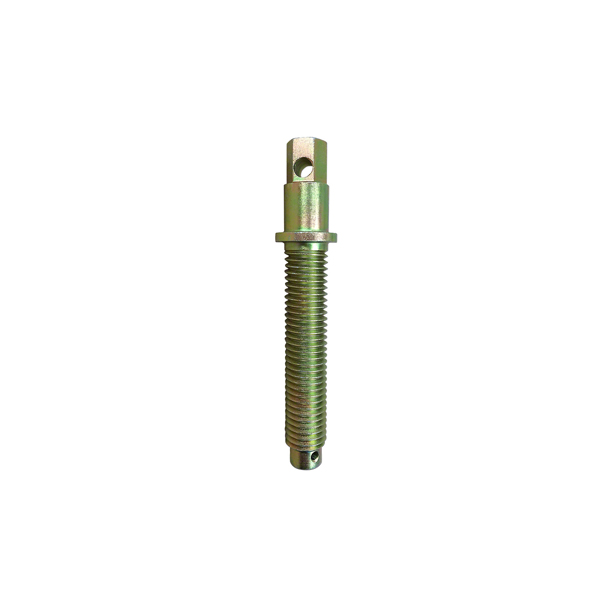

UJD83308 Suspension Adjusting Screw - R27121

UJD83308 Suspension Adjusting Screw - R27121
Suspension Adjusting Screw for Deluxe Seat

Replaces R27121, R57623, JDS3230

Fits JOHN DEERE: w/ Deluxe Seat - 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4250, 4255, 4240, 4320, 4430, 4440, 4450, 4455, 4630, 4640, 4650,
4840, 4850, 5010, 5020, 6030, 7020, 7520

5/8"-11 left hand thread
4.627" overall length
1/2" hex head

Suspension Adjusting Screw For Deluxe Seat

Price: $30.00

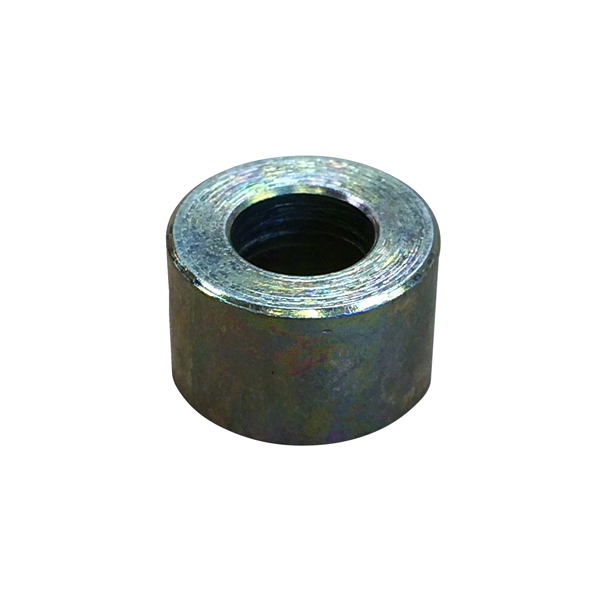

UJD83309 Bearing Race - R51649

UJD83309 Bearing Race - R51649
Bearing Race for Deluxe or Personal Posture Seats

Replaces R51649, JDS3231

Fits JOHN DEERE: w/ Deluxe or Pearsonal Posture Seats - 2140 (SN 43000 & After w/ Sound Gard body), 2350 (w/ Sound Gard body), 2550 (w/ Sound Gard body), 2750 (w/ Sound Gard body), 2940 (w/ Sound Gard body), 2950 (w/ Sound Gard body), 3140 (w/ Sound Gard body), 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4430, 4440, 4450, 4455, 4630, 4640, 4650, 4840, 4850, 8430, 8630

0.391" ID
0.753" OD
0.470" wide

Bearing Race for Deluxe or Personal Posture Seats

Price: $5.00

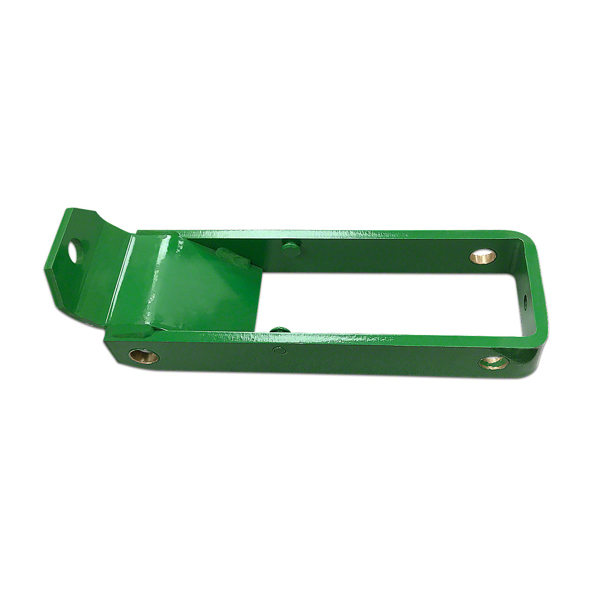

UJD83313 Seat Arm - AR60029

UJD83313 Seat Arm - AR60029
Seat Arm with Bushing installed

Replaces AR60029, AR36045, JDS4658

Fits JOHN DEERE: 7020 (w/ Deluxe Seat), 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4240, 4250, 4255, 4430, 4440, 4450, 4455, 4520, 4620, 4640, 4650, 4840, 4850, 5010, 5020

Price: $167.00

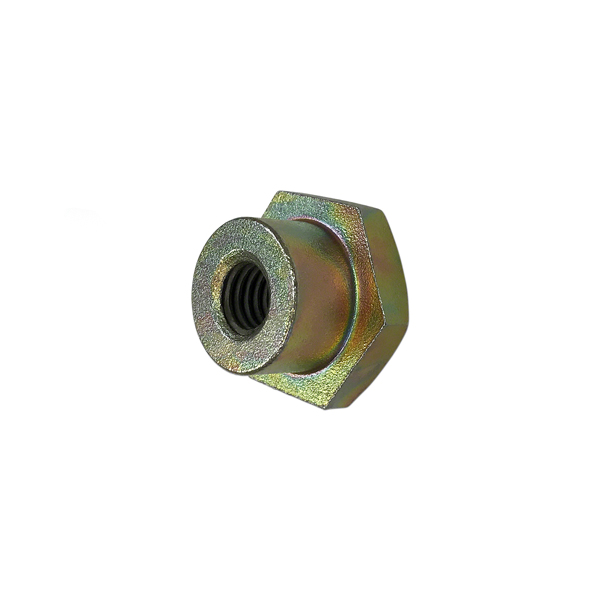

UJD83314 Seat Link Nut - R26880

UJD83314 Seat Link Nut - R26880
Seat Link Nut

Replaces R26880, JDS3721

Fits JOHN DEERE: 2510, 2520, 3010, 3020, 4000, 4010, 4020,, 4320, 4520, 4620, 5010, 5020, 6030

0.625" thick
1" hex nut
3/8" - 16 NC thread

Seat Link Nut

Price: $8.00

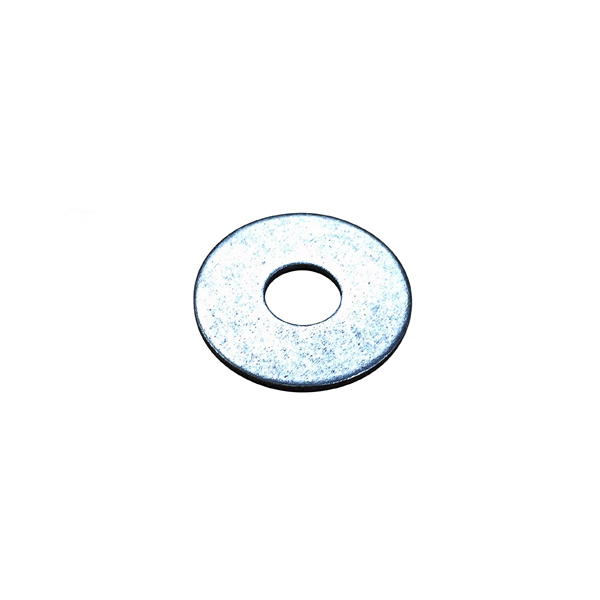

UJD83315 Seat & Armrest Washer - R27441

UJD83315 Seat & Armrest Washer - R27441
Washer for Armrest & Deluxe or Personal Posture Seat

Replaces R27441, JDS3239

Fits JOHN DEERE: 1030, 1520, 1630, 1635, 2010, 2020, 2030, 2035, 2130, 2135, 2140, 2350, 2355, 2440, 2510, 2520, 2550, 2555, 2630, 2640, 2750, 2755, 2940, 2950, 2955, 3010, 3020, 3055, 3130, 3150, 3255, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7400, 7520, 8430, 8450, 8570, 8630, 8650, 8770, 8850, 8870, 8960, 8970

25/64" (0.390625) inside diameter
1-1/8" (1.125") outside diameter
0.060" thick

Washer for Armrest & Deluxe or Personal Posture Seat

Price: $2.00
