Walt's Tractor Parts | International Tractor Parts / Farmall Tractor Parts / IH | IH/F Drive Train Parts | Transmission Parts | 06, 56, 66, 86, 88 Series Transmission Parts |  Transmission Gears and Shafts

Transmission Gears and Shafts

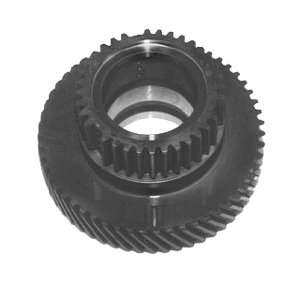

UT30000 Reverse Park Gear---Replaces 138764C2, 380288R2

UT30000 Reverse Park Gear---Replaces 138764C2, 380288R2
Replaces number 138764C2, 380288R2, A138764C2

17 Spline---35 Tooth---20 Degree

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1206, 1256, 1456, 1466, 1468
1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856, 3088, 3288, 3388, 3588, 3688, 3788, 6388, 6588
6788, 21026, 21206, 21256, 21456

Price: $218.00

UT30001 TA Lower Gear---Replaces 392291

UT30001 TA Lower Gear---Replaces 392291
Replaces number 392291

MUST POSITIVELY IDENTIFY TOOTH DEGREE

51 Tooth---20 Degree

Fits: 706, 756, 806, 826, 856, 1026, 1206, 1256, 2706, 2756, 2806, 21026, 21206, 21256

Price: $200.00

UT30002 TA Lower Gear---Replaces 529093

UT30002 TA Lower Gear---Replaces 529093
Replaces number 529093

MUST POSITIVELY IDENTIFY TOOTH DEGREE

51 Tooth---25 Degree

Fits: 756, 766, 786, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1256, 1456, 1466, 1468
1486, 1566, 1568, 1586, 2756, 2826, 2856, 3088, 3288, 3688, 21456

Price: $215.00

UT30003 TA Lower Gear---Replaces 681425

UT30003 TA Lower Gear---Replaces 681425
Replaces number 681425

47 Tooth---25 Degree

Fits: 3388, 3588, 6388, 6588

Price: $270.00

UT30022 First Speed Driving Gear---Replaces 406473

UT30022 First Speed Driving Gear---Replaces 406473
Replaces number 406473

27 Tooth---25 Degree

Fits: 756, 766, 786, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1256, 1456, 1466, 1468, 1486, 1566
1568, 1586, 2756, 2826, 2856, 3088, 3288, 3388, 3588, 3688, 21456, 4156, 4166, 4186, 6388, 6588

Farmall s.n. 17636 & Above
International s.n. 8425 & Above


Price: $150.00

UT30023 Second Speed Driving Gear---Replaces 528672

UT30023 Second Speed Driving Gear---Replaces 528672
Replaces number 528672

32 Tooth---25 Degree

Fits: 756, 766, 786, 826, 856, 886, 966, 986, 1066, 1086, 1456, 1466, 1468
1486, 2756, 2826, 2856, 3088, 3288, 3688, 21456,

Farmall s.n. 17636 & Above
International s.n. 8425 & Above


Price: $150.00

UT30024 Third Speed Driving Gear---Replaces 528671

UT30024 Third Speed Driving Gear---Replaces 528671
Replaces number 528671

42 Tooth---25 Degree

Fits: 756, 766, 786, 826, 856, 886, 966, 986, 1066, 1086, 1456, 1466, 1468
1486, 2756, 2826, 2856, 3088, 3288, 3388, 3588, 3688, 6388, 6588, 21456

Farmall s.n. 17636 & Above
International s.n. 8425 & Above


Price: $150.00

UT30025 First/Second Speed Sliding Gear---Replaces 528674

UT30025 First/Second Speed Sliding Gear---Replaces 528674
Replaces number 528674

41 and 46 Tooth---25 Degree

Fits: 756, 766, 786, 826, 856, 886, 966, 986, 1066, 1086, 1456, 1466, 1468
1486, 2756, 2826, 2856, 3088, 3288, 3688, 21456

Farmall s.n. 17636 & Above
International s.n. 8425 & Above


Price: $355.00

UT30026 Third/Fourth Speed Sliding Gear---Replaces 528675R1

UT30026 Third/Fourth Speed Sliding Gear---Replaces 528675R1
Replaces number 528675R1

31 Tooth---20 Spline---25 Degree

Fits: 756, 766, 786, 826, 856, 886, 966, 986, 1066, 1086, 1456, 1466, 1468
1486, 2756, 2826, 2856, 3088, 3288, 3388, 3588, 3688, 6388, 6588, 21456

Farmall s.n. 17636 & Above
International s.n. 8425 & Above


Price: $230.00

UT30027 Constant Mesh Direct Drive Gear---Replaces 528673

UT30027 Constant Mesh Direct Drive Gear---Replaces 528673
Replaces number 528673

47 Tooth---25 Degree

Fits: 756, 766, 786, 826, 856, 886, 966, 986, 1066, 1086, 1456, 1466, 1468
1486, 2756, 2826, 2856, 3088, 3288, 3688, 21456,

Farmall s.n. 17636 & Above
International s.n. 8425 & Above


Price: $145.00

UT30029 Constant Mesh Direct Drive Gear---Replaces 528670

UT30029 Constant Mesh Direct Drive Gear---Replaces 528670
Replaces number 528670

26 Tooth---25 Degree

Fits: 756, 766, 786, 826, 856, 886, 966, 986, 1066, 1086, 1456, 1466, 1468
1486, 2756, 2826, 2856, 3088, 3288, 3688, 21456

Farmall s.n. 17636 & Above
International s.n. 8425 & Above


Price: $125.00

UT30040 Hitch Pump Drive Gear---Replaces 380319R1

UT30040 Hitch Pump Drive Gear---Replaces 380319R1
Replaces number 380319R1

61 Tooth

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1206, 1256, 1066, 1086, 1456, 1466, 1468
1486, 2756, 2826, 2856, 3088, 3288, Hydro 100, Hydro 186

Farmall s.n. 17636 & Above
International s.n. 8425 & Above


Price: $250.00

UT30004 Main Speed Shaft---Replaces 529434

UT30004 Main Speed Shaft---Replaces 529434
Replaces number 529434

47 Tooth---25 Degree

LARGER BEARINGS AND CARRIER ARE REQUIRED FOR INSTALLATION. CALL FOR DETAILS

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1206, 1256, 1456, 1466, 1468
1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856, 3088, 3288, 3388, 3588, 3688, 3788, 6388, 6588
21026, 21206, 21256, 21456

Price: $285.00

UT30030 Main Speed Shaft---Replaces 84918

UT30030 Main Speed Shaft---Replaces 84918
Replaces number 84918

Fits: 1566, 1568, 1586, 3788

Price: $420.00

UT30005 TA Elimination Shaft

UT30005 TA Elimination Shaft
Replaces number 380076

Includes: Inner Bearing Pre-Installed, Replacement Shaft for TA Eliminated and OEM Non-TA Tractors

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1206, 1256, 1456, 1466, 1468
1486, 2706, 2756, 2806, 2826, 2856, 3088, 3288, 3388, 3588, 3688, 6388, 6588
21026, 21206, 21256, 21456, 4100, 4156, 4166, 4186

Price: $360.00

UT30031 TA Elimination Shaft---Replaces 68040

UT30031 TA Elimination Shaft---Replaces 68040
Replaces number 68040

Includes: Inner Bearing Pre-Installed, Replacement Shaft for TA Eliminated and OEM Non-TA Tractors

Fits: 1566, 1568, 1586, 3788, 6788

Price: $450.00

UT30006 Quill with Pre-Installed Bearing---Replaces 382349

UT30006 Quill with Pre-Installed Bearing---Replaces 382349
Replaces number 382349

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1206, 1256, 1456, 1466, 1468
1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856, 3088, 3288, 3388, 3588, 3688, 6388, 6588
21026, 21206, 21256, 21456

Price: $175.00

UT30007 Rear Quill Bearing

UT30007 Rear Quill Bearing
Replaces number 833025

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086
1206, 1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756
2806, 2826, 2856, 3088, 3288, 3688, 3788, 6388, 6588, 6788
21026, 21206, 21256, 21456

Price: $105.00

UT30008 Quill Housing---Replaces 380253

UT30008 Quill Housing---Replaces 380253
Replaces number 380253

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066
1086, 1206, 1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586
2706, 2756, 2806, 2826, 2856, 3088, 3288, 3688, 21026, 21206, 21256, 21456

Price: $96.00

UT30009 Lock Plate---Replaces 380081R2

UT30009 Lock Plate---Replaces 380081R2
Replaces number 380081R2

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066
1086, 1206, 1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706
2756, 2806, 2826, 2856, 3088, 3288, 3688, 21206, 21256, 21456

Price: $18.00

UT30010 Countershaft---Replaces 148951

UT30010 Countershaft---Replaces 148951
Replaces number 148951

Left Hand Thread, Requires the addition of one 71147C1
splined front spacer, if one is not already being used

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086
1206, 1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806
2826, 2856, 3088, 3288, 3388, 3588, 3688, 3788, 4100, 4166, 4186, 6388
6588, 6788, 21026, 21206, 21256, 21456

Price: $295.00

UT30020 Countershaft Driver---Replaces 8304024

UT30020 Countershaft Driver---Replaces 8304024
Replaces number 8304024

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1206, 1256
1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856, 3088, 3288
3388, 3588, 3688, 3788, 4100, 4166, 4186, 6388, 6588, 6788, 21026, 21206, 21256, 21456

Price: $51.00

UT30011 Mainshaft---Replaces 380082LH

UT30011 Mainshaft---Replaces 380082LH
Replaces number 380082LH

Left Hand Thread, Heavy Duty Thick Wall
Requires the addition of one 71147C1 splined front spacer, if one is not already being used

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1206, 1256
1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856, 3088, 3288
3388, 3588, 3688, 3788, 4100, 4166, 4186, 6388, 6588, 6788, 21026, 21206, 21256, 21456

Price: $285.00

UT30012 Countershaft Nut---Replaces 148952

UT30012 Countershaft Nut---Replaces 148952
Replaces number 148952

Left Hand Threads, used with 148951 and 380082LH countershafts

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1206, 1256
1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856, 3088
3288, 3388, 3588, 3688, 3788, 4100, 4166, 4186, 6388, 6588, 6788, 21026, 21206, 21256, 21456

Price: $30.00

UT30013 Countershaft Nut---Replaces 380092

UT30013 Countershaft Nut---Replaces 380092
Replaces number 380092

Right Hand Threads

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086
1206, 1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806
2826, 2856, 3088, 3288, 3388, 3588, 3688, 3788, 4100, 4166, 4186, 6388
6588, 6788, 21026, 21206, 21256, 21456

Price: $30.00

UT30014 Countershaft Lockwasher---Replaces 380091

UT30014 Countershaft Lockwasher---Replaces 380091
Replaces number 380091

Used with 380092 right hand nut

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086
1206, 1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806
2826, 2856, 3088, 3288, 3388, 3588, 3688, 3788, 4100, 4166, 4186, 6388
6588, 6788, 21026, 21206, 21256, 21456

Price: $17.00

UT30015 Snap Ring---Replaces 357035

UT30015 Snap Ring---Replaces 357035
Replaces number 357035

Countershaft constant mesh gear stop for models without TA

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1206
1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856
3088, 3288, 3388, 3588, 3688, 3788, 4100, 4166, 4186, 6388, 6588, 6788, 21026
21206, 21256, 21456

Price: $20.00

UT30016 Countershaft Front Bearing---Replaces 384114

UT30016 Countershaft Front Bearing---Replaces 384114
Replaces number 384114

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1206
1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856
3088, 3288, 3388, 3588, 3688, 3788, 4100, 4166, 4186, 6388, 6588, 6788, 21026
21206, 21256, 21456

Price: $58.00

UT30019 Countershaft Front Bearing Driver---Replaces 8304025

UT30019 Countershaft Front Bearing Driver---Replaces 8304025
Replaces number 8304025

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1206
1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856
3088, 3288, 3388, 3588, 3688, 3788, 4100, 4166, 4186, 6388, 6588, 6788, 21026
21206, 21256, 21456

Price: $48.00

UT30017 Countershaft Rear Bearing

UT30017 Countershaft Rear Bearing
Replaces number ST3021

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1206
1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856
3088, 3288, 3388, 3588, 3688, 3788, 4100, 4166, 4186, 6388, 6588, 6788, 21026
21206, 21256, 21456

Price: $95.00

UT30018 Countershaft Rear Bearing--Heavy Duty---Replaces 70972

UT30018 Countershaft Rear Bearing--Heavy Duty---Replaces 70972
Replaces number 70972

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1206
1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856
3088, 3288, 3388, 3588, 3688, 3788, 4100, 4166, 4186, 6388, 6588, 6788, 21026
21206, 21256, 21456

Price: $128.00

UT30021 Planetary Spider---Replaces 393637

UT30021 Planetary Spider---Replaces 393637
Replaces number 393637

Fits: 756, 766, 786, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1256, 1456
1466, 1468, 1486, 1566, 1568, 1586, 2756, 2826, 2856, 3088, 3288, 3388
3588, 3688, 3788, 6388, 6588, 6788, 21026, 21256, 21456

Price: $95.00

UT30032 Low Gear Kit---Replaces 952881K

UT30032 Low Gear Kit---Replaces 952881K
Replaces number 952881K

Fits: 5088, 5288, 5488

Contains: Gear, 5 Separator Plates, 5 Friction Disc, 1 Piston Plate and Shift Clutch Seal

GEAR HAS EARLY STYLE GEAR TEETH WITH LATE STYLE SPLINES

Price: $275.00

UT30033 Low Gear---Replaces 952881

UT30033 Low Gear---Replaces 952881
Replaces number 952881

Fits: 5088, 5288, 5488

39 Tooth---33 Spline

GEAR HAS EARLY STYLE GEAR TEETH WITH LATE STYLE SPLINES

Price: $150.00

UT30034 High Gear Kit---Replaces 952882K

UT30034 High Gear Kit---Replaces 952882K
Replaces number 952882K

Fits: 5088, 5288, 5488

Contains: Gear, 5 Separator Plates, 5 Friction Disc, 1 Piston Plate and Shift Clutch Seal

GEAR HAS EARLY STYLE GEAR TEETH WITH LATE STYLE SPLINE

Price: $275.00

UT30035 High Gear---Replaces 952882

UT30035 High Gear---Replaces 952882
Replaces number 952882

Fits: 5088, 5288, 5488

55 Tooth---33 Spline

GEAR HAS EARLY STYLE GEAR TEETH WITH LATE STYLE SPLINES

Price: $150.00

UT30036 High/Low Clutch Pack---Replaces 1264552

UT30036 High/Low Clutch Pack---Replaces 1264552
Replaces number 1264552

Fits: 5088, 5288, 5488, 7288, 7488

Contains 10 Friction Plates, 10 Separator Plates, 2 Piston Plates and 2 Shift Clutch Sealing Rings

Price: $260.00

UT30037 Shift Clutch Sealing Ring---Replaces 1286399

UT30037 Shift Clutch Sealing Ring---Replaces 1286399
Replaces number 1286399

Fits: 5088, 5288, 5488, 7288, 7488

Price: $31.00

UT30038 Shift Detent Spring---Replaces 3977991R1

UT30038 Shift Detent Spring---Replaces 3977991R1
Replaces number 3977991R1, IHS2505

Fits: [ 756, 766, 826, 856, 966, 1066, 1256, 1456, 1466, 1468
1566, 1568, 2756, 2826, 2856, 21256, 21456 (gear drive only) ]

0.085" wire diameter, 1.125" O/A length.

2 used per tractor, sold individually.

Price: $6.00

UT30039 Reverse Driven Gear---Replaces 380288R1
Replaces number 138764C1, 380288R1, IHS070

Fits: 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1066, 1086, 1206, 1256, 1456, 1466, 1468, 1486

Price: $175.00

UT3156 1st & Reverse Slider Gear---Replaces 3881165R1

UT3156 1st & Reverse Slider Gear---Replaces 3881165R1
Replaces number 388165R1, IHS048

Fits: 544, 664, 2544, 656, 2656, 666 & 686

(14 splines, 57 teeth)

Price: $150.00

Walt's Tractor Parts | International Tractor Parts / Farmall Tractor Parts / IH | IH/F Drive Train Parts | Transmission Parts | 06, 56, 66, 86, 88 Series Transmission Parts |  Transmission Gears and Shafts

Recently Viewed Parts


Customer Services

Website Information

How to get in touch with us

Call us on
888-414-4043888-414-4043

Waltstractors.com
2634 Audrain Road 381, Mexico, Missouri, 65265

Buy now with PayPal

© 2014 - 2024 Waltstractors.com
