Alternator/Alternator Mounting Kit -

UA53152 Alternator - 63 Amp with Pulley

UA53152 Alternator - 63 Amp with Pulley

 Dimensions & Notes: 6-1/4' housing diameter, 2-1/2" pulley diameter----5/8" belt width
Must rev engine to 800-850 RPM in order for unit to self excite
For 12 Volt Negative Ground Systems Only
Simple 1 Wire Alternator Hookup
Run a wire from alternator through amp gaugeto positive side of battery.

Price: $105.00

UA53154 Alternator Pulley

UA53154 Alternator Pulley
For 5/8" Width Belt

.670" Shaft Diameter

2-1/2" Outside Diameter

Price: $22.00

UT2557 Alternator Pulley

UT2557 Alternator Pulley
For 1/2" Width Belt

.670" Shaft Diameter

3-3/16" Outside Diameter

Price: $19.00

UA53153 MINI-Alternator - 42 Amp with Pulley and Diode

UA53153 MINI-Alternator - 42 Amp with Pulley and Diode
For tractors requiring a smaller diameter alternator for clearance
Dimensions & Notes: 4-1/2" housing diameter, 2-1/2" pulley diameter----3/8" belt width
For 12 Volt Negative Ground Systems Only
This alternator has a built in regulator, that requires an excitation circuit--Includes Instructions

Price: $180.00

UA53153P Pulley - Fits UA53153

UA53153P Pulley - Fits UA53153
Dimensions---.587" I.D.----1.437" Overall Length---3" Diameter Pulley

5/8" Belt Width

Price: $35.00

UA53150 Alternator Mounting Kit

UA53150 Alternator Mounting Kit
Used when switching form generator to alternator
Does not include top adjusting bracket

Price: $40.00

UA53151 Top Adjusting Bracket

UA53151 Top Adjusting Bracket
7/8" Wide--1-1/2" Offset--8-1/4" from farthest end of slot to center of mounting hole
3-3/4" slot length--3/8" mounting hole

Price: $23.00

UT2556 Alternator Mount Kit

UT2556 Alternator Mount Kit
Replaces number IHS829

Fits: M, Super M, 400, 450

Price: $30.00

UT2558 Alternator Mount Kit

UT2558 Alternator Mount Kit
Replaces number IHS1246

Fits: H series sn 125250 and up, Super H, I, O, W4 Series all w serial number 5864 and up, 300, 350

Belt not long enough for 300 or 350

Price: $45.00

UT2559 Alternator Bracket Kit

UT2559 Alternator Bracket Kit
Replaces number IHS2340

Fits: Cub, Cub LoBoy

Use with MINI-Alternator and existing belt

Price: $40.00

UT2560 Alternator Bracket Kit

UT2560 Alternator Bracket Kit
Replaces number IHS2349

Fits: A, AV, B, BN, C, Super A, Super A-1, Super AV, Super AV-1, Super C, 100, 130, 200, 230
Fits: Power Units: U2, U2A

Price: $45.00

UT2561 Alternator Brackets

UT2561 Alternator Brackets
Replaces number IHS1246BK

Fits: H (gas & LP, SN: 125250 & up), [ I4, O4, OS4, Super H, Super W4, 300, 350 (gas & LP ) ], W4 (gas & LP, SN: 5864 & up)

Price: $40.00

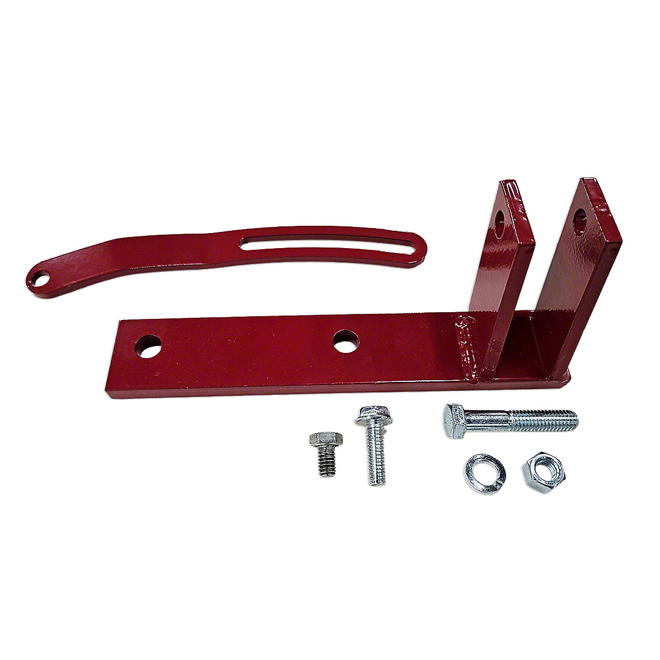

UT999994 Mini Alternator Bracket Kit

UT999994 Mini Alternator Bracket Kit
Mini Alternator Bracket Kit

Replaces IHS6548

Fits INTERNATIONAL: H (SN 125205 & After), HV (SN 125205 & After), Super H, Super HV, Super W4, W4, 300, 350

Mini Alternator Bracket Kit
includes: Mounting bracket, Tension adjusting bracket, Hex Head Bolt 3/8" unc x 2" with Split Washer, and Hex Nut, Hex Washer Head Serrated Flange Bolt M8-1.25 x 3/4", Hex Head Bolt 5/16" unc x 1/2"

Price: $41.00
