Brake Disc/Brake Band

UA60851 Brake Riveting Tool

UA60851 Brake Riveting Tool
Use to rivet linings to existing shoe or band. Includes a tool to drive out old rivets, a tool to
drill and countersink linings, a tool to peen the new rivet and instructions.
Mounts into vice

Price: $36.00

UA60853 Brake Riveting Tool---Large---Heavy Duty

UA60853 Brake Riveting Tool---Large---Heavy Duty
3-3/8" deep throat x 2-1/8" high throat.

Includes 1 punch for brake shoe rivets and 1 punch for John Deere clutch pulley brake

Price: $89.95

UCA50138 Brake Lining Kit with Rivets---Replaces VTA3459

UCA50138 Brake Lining Kit with Rivets---Replaces VTA3459
Replaces number VTA3459, CKS129

Fits: VA, VO, Serial Number 5554999 and up
VAC with band type brakes

17-7/8" Length x 1-11/16" Width x .200" Thick

Price: $29.35

UCA50101 Brake Disc---Replaces A49127

UCA50101 Brake Disc---Replaces A49127
Replaces number A49127, G10738, G13019, CKS1592

Fits: 200B, 300, 300B, 320, 320B, 350, 400B, 420B
420BD, (430, 530 up to sn 6165269), 500B, 600B, 630
W3, W5, W5A

Price: $55.00

UCA50102 Brake Disc---Replaces 3973AA

UCA50102 Brake Disc---Replaces 3973AA
Replaces number 3973AA, A44712, A40794, 1975466C1, ABC438

Fits: LA, 400, 401, Super 402, Super 403, 410, 411, 412, 413, 500, 600, 610, 700B, 701B, 711B, 712B, 713B, 715B, 730, 730C, Early 770, 800B, 801B, 802B, 803B, 810B, 811B, 812B, 813B, 830
830C, 870, 900B, 910B, 930, 930CK, 970, 1030

Price: $21.95

UCA50103 Disc Brake Linings with Rivets

UCA50103 Disc Brake Linings with Rivets
Replaces numbers 4048AA, 07205AB, CKS1596

Fits: D, DC, DI, DO, DV

For Serial Numbers 4511449 thru 5600000

8" O.D. --- 5" I.D.

4 Used per Tractor, Sold Individually

Price: $46.45

UCA50104 Disc Brake Linings with Rivets

UCA50104 Disc Brake Linings with Rivets
Replaces numbers 4048AA, 07205AB, CKS1598

Fits: D, DC, DI, DO, DV

For Serial Numbers 5600000 and Up

7" O.D. --- 4" I.D.

4 Used per Tractor, Sold Individually

Price: $39.95

UCA50106 Disc Brake Linings with Rivets

UCA50106 Disc Brake Linings with Rivets
Replaces numbers 4298AA, A3010AA, CKS1601

Fits: VA, VAC, VAH, (S, SC, SO serial number 5600000 and up)

4 Used per Tractor, Sold Individually

Price: $34.95

UCA50100 Brake Disc---Replaces 1975466C1, A40794, A44712-------

UCA50100 Brake Disc---Replaces 1975466C1, A40794, A44712-------


Replaces number 1975466C1, A40794, A44712

Fits: 400 Row Crop, 730, 830, 930, 930CK, 1030, (770, 870, 970 Early Models)

7" x 4" x 24 spline

Price: $22.92

UCA50105 Brake Disc---Replaces 249020A1, G45362, A142980

UCA50105 Brake Disc---Replaces 249020A1, G45362, A142980


Replaces number 249020A1, G45362, A142980

Fits: 430, 430CK, 470, 480C, 480CK, 530, 530CK, 570, 580B, 580C, 580CK

Price: $101.44

UCA50107 Brake Disc---Replaces 1349141C3

UCA50107 Brake Disc---Replaces 1349141C3
Replaces number 1349141C3, 1349141C2, 1349141C1, A153982, 84415744

Fits: (480D, 480LL ALL SN 16270319>), 480E, 480ELL,
480F, 480FLL, 580D, 580SD, 580SE, 584D, 584E, 585D, 585E, 586D, 586E)

ID - Major: 2.512" Minor: 2.269"
OD - 8.000"
Thickness - .439"
Teeth - 19

Price: $43.17

UCA50110 Brake Linings With Rivets---Replaces 1995295C1, A44720

UCA50110 Brake Linings With Rivets---Replaces 1995295C1, A44720


Replaces 1995295C1 and A44720

Fits: 430, 470, 530, 570, 585D, 586D, 480CK, 530CK, 580B, 580CK

6.500" OD x 3.500" Hole X .187" Thick

Note: Includes 2 non-asbestos linings

Price: $29.74

UCA50115 Brake Disc---Replaces 1975469C1, A65189, and A65336

UCA50115 Brake Disc---Replaces 1975469C1, A65189, and A65336


Replaces 1975469C1, A65189, and A65336

Fits: 1070, 1175, 770, 870, 970 all late

8" x 5" x 24 Spline

Price: $25.97

UCA50120 Intermediate Brake Disc---Replaces A32779

UCA50120 Intermediate Brake Disc---Replaces A32779
Replaces number A32779

Fits: 1030

Price: $96.54

UCA50125 Steel Brake Disc---Replaces A63199

UCA50125 Steel Brake Disc---Replaces A63199


Replaces number A63199

Fits: 1270, 1370, 1570, 2390, 2394, 2590, 2594, 3394, 3594

O.D. 13.824"---I.D. 10.500"---Thick .250"

Price: $83.74

UCA50127 Brake Friction Plate---Replaces 1981269C1

UCA50127 Brake Friction Plate---Replaces 1981269C1


Replaces number 1981269C1

Fits: 1270, 1370, 1570, 2390, 2394, 2590, 2594, 3394, 3594

O.D. 12.500"---I.D. 10.58"---Splines 78


Price: $73.82

UCA50130 Steel Brake Disc---Replaces A63198

UCA50130 Steel Brake Disc---Replaces A63198


Replaces number A63198

Fits: 1270, 1370, 1570, 2390, 2394, 2594, 3394, 3594

O.D. 15.250"---I.D. 10.500"---Thick .250"

Price: $151.88

UCA50135 Steel Brake Plate---Replaces A67336

UCA50135 Steel Brake Plate---Replaces A67336
Replacese number A67336

Fits: 1896, 2090, 2094, 2096, 2290, 2294, 3294

O.D. 10.00"---I.D. 7.00"---Thick .156"

Price: $40.71

UCA50136 Brake Friction Plate---Replaces 1981269C1

UCA50136 Brake Friction Plate---Replaces 1981269C1


Replaces number 1981269C1

Fits: 1896, 2090, 2094, 2096, 2290, 2294, 3294

O.D. 12.500"---I.D. 10.58"---Splines 78

Price: $73.82

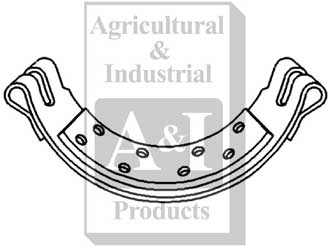

UCA50137 Brake Band---Replaces G45468

UCA50137 Brake Band---Replaces G45468


Replaces number G45468

This Item Is Sold Individually---4 needed per tractor

Fits: 430, 470, 480CK, 530, 530CK, 570, 580B, 580CK

Price: $37.85
