Seat Parts

UCA82325 Rubber Seat Spring, LH - G45003

UCA82325 Rubber Seat Spring, LH - G45003
Left Hand Rubber Seat Spring - Spring does not include the bushing

Replaces G45003, NDA448A, 102228A, 105875A, FDS299

Fits CASE: w/ Easy Ride Seat & 1 exposed pin - 200, 200B, 210B, 211B, 300, 300B, 301B, 310B, 311, 311B, 312, 312B, 320, 320B, 350, 351, 400B, 410B, 411B, 420B, 500B, 510B, 511B, 530, 600B, 610B, 611B, 614B, 630, 631, 632, 634, 640, 641, 642, 644, 700, 730, 800

Fits FORD: 1955 - 1964 when using a Rest-O-Ride seat - 501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660, 661, 671, 681, 700, 701, 741, 771, 800, 801, 811, 820, 821, 840, 841, 850, 851, 860, 861, 871, 881, 900, 901, 941, 950, 951, 960, 961, 971, 981, 2000 (4 Cyl), 2031, 2110, 2111, 2120, 2131, 4000 (4 Cyl), 4031, 4110, 4120, 4121, 4131, 4140

Fits MINNEAPOLIS MOLINE: Fits right or left; Locating pin must be removed - G750

Fits OLIVER: Super 44 (LH), 440 (LH)

Fits OLIVER: Fits right or left; Locating pin must be removed - 1600, 1650, 1655, 1800, 1900

Price: $53.00

UCA82326 Rubber Seat Spring, RH - G45002

UCA82326 Rubber Seat Spring, RH - G45002
Rubber Seat Spring, Right Hand

Replaces G45002, NDA447A, 102227A, FDS300

Fits CASE: with EASY RIDE SEAT & 1 exposed pin - 200, 200B, 210, 210B, 211, 300, 300B, 301B, 310B, 311, 311B, 312, 312B, 320, 320B, 350, 351, 400B, 410B, 411B, 420B, 430, 500B, 510B, 511B, 530, 600B, 610B, 611B, 614B, 630, 631, 632, 634, 640, 641, 642, 644, 700 (Orchard)

Fits FORD: 1955-1964 when using a Rest-O-Ride seat - 501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660, 661, 671, 681, 700, 701, 740, 741, 771, 800, 811, 820, 821, 840, 841, 850, 851, 860, 861, 871, 881, 900, 901, 941, 950, 951, 960, 961, 971, 981, 2000 (4 Cyl), 2031, 2110, 2111, 2120, 2131, 4000 (4 Cyl), 4031, 4110, 4120, 4121, 4131, 4140, 1801 (Industrial), 1811 (Industrial), 1821 (Industrial), 1841 (Industrial), 1871 (Industrial), 1881 (Industrial), 2030 (Industrial), 2130 (Industrial), 4030 (Industrial, 4 Cyl), 4040 (Industrial), 4130 (Industrial, 4 Cyl)

Fits OLIVER: Super 44, 440

Rubber Seat Spring, RH

Price: $54.95

UCA82327 Seat Bushing & Pin Kit - G46002

UCA82327 Seat Bushing & Pin Kit - G46002
Seat Bushing & Pin Kit

Replaces G46002, 132-46, 138-136, 138-155, 230612, 230626, 305191, 102253A, 721034A, FDS477

Fits CASE: with EASY RIDE SEAT & 1 exposed pin - 200, 200B, 210, 210B, 211, 300, 300B, 301B, 310B, 311, 311B, 312, 312B, 320, 320B, 350, 351, 400B, 410B, 411B, 420B, 430, 500B, 510B, 511B, 530, 600B, 610B, 611B, 614B, 630, 631, 632, 634, 640, 641, 642, 644, 700 (Orchard)

Fits FORD: 1955-1964 when using a Rest-O-Ride seat - 501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660, 661, 671, 681, 700, 701, 740, 741, 771, 800, 811, 820, 821, 840, 841, 850, 851, 860, 861, 871, 881, 900, 901, 941, 950, 951, 960, 961, 971, 981, 2000 (4 Cyl), 2031, 2110, 2111, 2120, 2131, 4000 (4 Cyl), 4031, 4110, 4120, 4121, 4131, 4140, 1801 (Industrial), 1811 (Industrial), 1821 (Industrial), 1841 (Industrial), 1871 (Industrial), 1881 (Industrial), 2030 (Industrial), 2130 (Industrial), 4030 (Industrial, 4 Cyl), 4040 (Industrial), 4130 (Industrial, 4 Cyl)

Fits OLIVER: Super 44, 440

Seat Bushing & Pin Kit

Price: $42.00

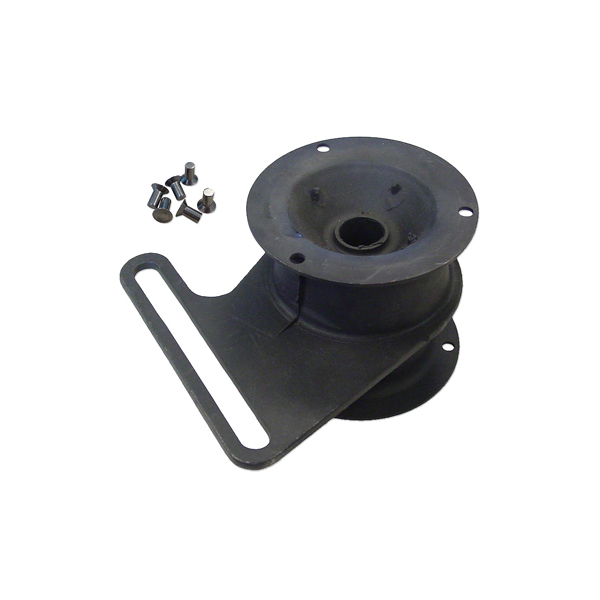

UCA82328 Rubber Seat Spring with Rivets - A57714

UCA82328 Rubber Seat Spring with Rivets - A57714
Rubber Seat Torsion Spring with Rivets - MUST REUSE OLD SIDE PLATES, For tractors equipped with Deluxe Seat and Flanged Bushings

Replaces A57714, A34676, A23947, CKS114

Fits CASE: SN 8253501 & After - 730, 730 (Comfort King), 731, 740, 741, 742, 830, 830 (Comfort King), 831, 840, 841, 842, 843,
Fits CASE: 930 (Comfort King), 930, 1030, 1030 (Comfort King), 1031, 1032, 1200

Must REUSE Old Side plates, For tractors equipped with Deluxe Seat and Flanged Bushings

Rubber Seat Spring with Rivets

Price: $115.00

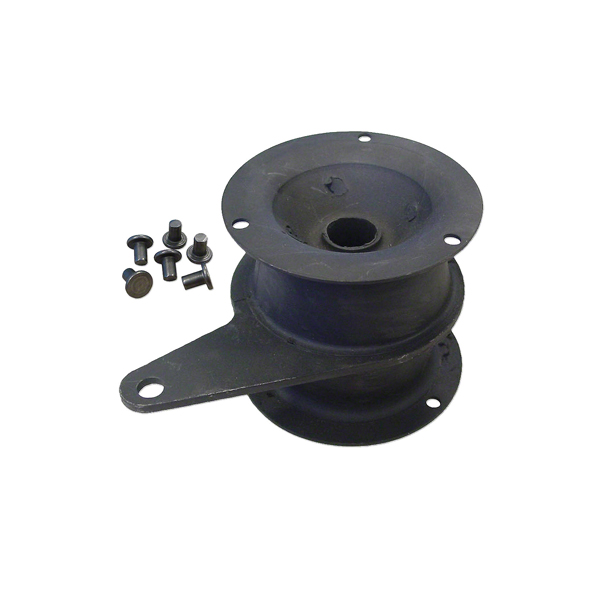

UCA82329 Rubber Seat Spring with Rivets - A7053

UCA82329 Rubber Seat Spring with Rivets - A7053


Rubber Torsion Seat Spring with Rivets - Must REUSE old side plates

Replaces A7053, CKS124

Fits CASE: SN 8253500 & Before - 730, 740, 741, 742, 731, 830, 831, 840, 841, 842, 843
Fits CASE: 400, 700, 900

Must reuse old sideplates

Rubber Torsion Seat Spring with Rivets

Price: $112.00

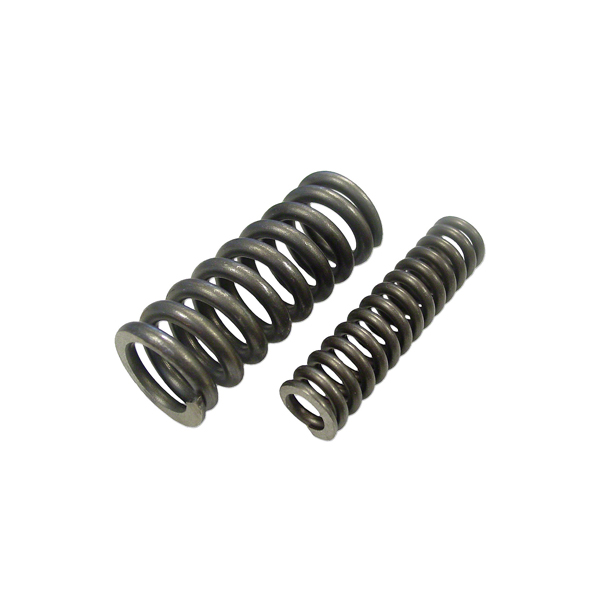

UCA82331 Seat Spring Set - A26962, B18211

UCA82331 Seat Spring Set - A26962, B18211
Inner & Outer Seat Spring Set

Replaces 04256TF, B18211, 05948AB, A26962, CKS125

Fits CASE: SN 8027114 & Before - S, SC, SC-3, SC-4, SI, SO
Fits CASE: SN 8025739 & Before - D, DC, DC-3, DCS, DH, DI, DO, DV
Fits CASE: Grove - 730

Dimensions:
4-11/16" overall length
outer spring: 1-3/16 ID x 2" OD
inner spring: 0.747" ID x 1.500" OD

Seat Spring Set, Inner & Outer

Price: $55.00

UW81602 Rubber Seat Spring - VTA3348

UW81602 Rubber Seat Spring - VTA3348
Rubber Seat Spring - Must reuse old Bushings or buy new ones

Replaces VTA3348, 1015696M1, K1854A, OLS038

Fits CASE: with Optional Easy Ride Seat - VAC-14

Fits OLIVER: 60 (Ind, SN 462256 & After), 60 (Stnd, SN 474232 & After), 66 (Rowcrop, SN 429771 & After), Super 66, 77 (Ind, SN 403291 & After), 77 (Rowcrop, SN 347732 & After), 77 (Stnd, SN 273376 & After), Super 77, 88 (Ind, SN 920856 & After), 88 (Rowcrop, SN 136899 & After), 88 (Stnd, 826416 & After), Super 88, 660, 770, 880, Super 90, 950, 990

Spring Does not come with bushings. You must reuse old ones or purchase new ones.
2 Pins Stick up and are hidden underneath the seats framework.

Rubber Seat Spring

Price: $57.00

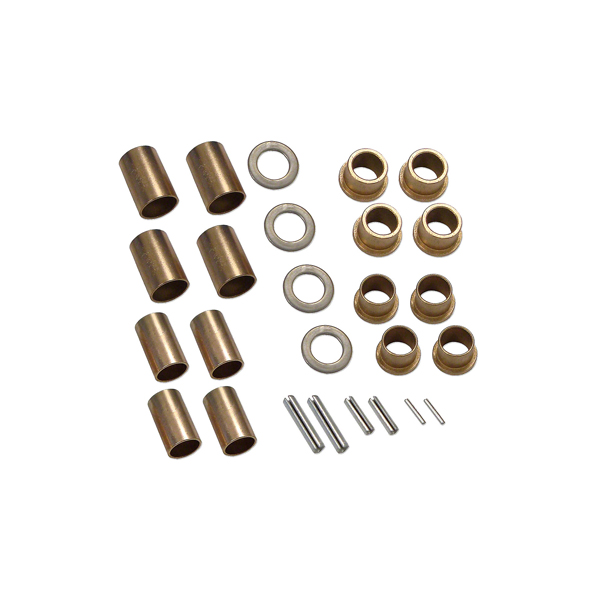

UW81606 Seat Bushing Kit - V20459

UW81606 Seat Bushing Kit - V20459
Seat Bushing Kit

Replaces number V20455, V20456, V20459, 1K1852B, 1K1861A, 1K1862B, 1K1865, 933152, 933230, S1380, OLS149

Fits CASE: with Optional Easy Ride Seat - VAC-14

Fits OLIVER: Row Crop / STANDARD / Industrials using our K1854A seat springs and spring U-Shafts with roll pin holes - 66 (SN 3510000 & After), Super 66 (SN 3510000 & After), 77 (SN 3510000 & After), Super 77, 88 (SN 3510000 & After), Super 88, 660, 770, 880, 950, 990

26 piece total
Must ream / hone the bushings when installed
Largest bushing measures 1.010" outside diameter

Price: $58.00

UT5368 Seat Spring Coil - 48930D

UT5368 Seat Spring Coil - 48930D
Coil Seat Spring

Replaces 48930D, O8145AB, 48930DB, IHS728

Fits CASE: - Measure Before Ordering - VA, VAC, L (1940 & After, Outer Spring), LA (Outer Spring), LAI (Outer Spring), LI (1940 & After, Outer Spring), V, VAC-11, VAC-12, VAC-13, VAC-14, VAH, VC, 500 (Outer Spring)

Fits INTERNATIONAL: I4, H ( SN 15697 & Before), HV (SN 15697 & Before), I9, ID9, M (SN 9286 & Before), MD (SN 9286 & Before), MDV (SN 9286 & Before), MV (SN 9286 & Before), O4, O6, OS4, OS6, Super W4, W4, Super W6, W6, W9, Super WD6, WD6, WD6, Super WD9, WD9, WDR9, WR9S

2-1/4" (2.25") outside diameter
4-7/8" (4.875") tall
0.535" wire diameter
55CrSi Spring Steel
Verify tractor model and measurements before ordering

Coil Seat Spring

Price: $45.00

UJD83871 Seat Adjustment Handle - G45001

UJD83871 Seat Adjustment Handle - G45001
Seat Adjustment Handle

Replaces G45001, VT5502, VTA3341, NDA462A, 372738R91, 372739R91, 373656R91, 380725R91, AF3427R, 1016119M91, 1KS1855B, JDS533

Fits CASE: with Easy Ride Seat - 200, 200B, 210, 210B, 211, 211B, 300, 301B, 300B, 310B, 311, 311B, 312, 312B, 320, 320B, 350, 351, 400B, 410B, 411B, 420B, 430, 431, 441, 470, 480, 500B, 530, 531, 540, 541, 570, 600B, 610B, 611B, 614B, 630, 631, 632, 634, 640, 641, 642, 644, 700 (Orchard Only), 730 (SN 8253501 thru 8312174), VAC-14

Fits FORD: 1955 - 1964 with Rest-O-Ride Seat - 501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660, 661, 671, 981, 700, 701, 740, 741, 771, 800, 801, 811, 820, 821, 840, 841, 850, 851, 860, 861, 871, 881, 900, 901, 941, 950, 951, 960, 961, 971, 981, 200 (4 Cyl), 2031, 2110, 2111, 4000 (4 Cyl), 4031, 1801 (Ind), 1811 (Ind), 1821 (Ind),

Fits INTERNATIONAL: Hydro 100, 460, 504, 544, 560, 656, 660, 666, 686, 706, 756, 766, 806, 826, 856, 966, 1026, 1066, 1206, 1256, 1456, 1466, 1468, 1566, 1568, 4100, 4156, 4166, 4186

Fits JOHN DEERE: with Float Ride Seat - 50, 520, 530, 620, 630, 720, 730, 80, 820 (2 Cyl), 830 (2 Cyl), 840 (2 Cyl, SN 8400200 & After)

Fits OLIVER: Super 44, 66, Super 66, 70 (when change to late seat with rubber torsion springs), 77, Super 77, 88, Super 88, 660, 770, 880, Super 99, 440, 950, 990

10" overall length
(2) 0.340" outside diameter
Note: Roll Pins not included
Fits Float Ride & Easy Ride Seats

Handle, Seat Adjustment

Price: $29.00

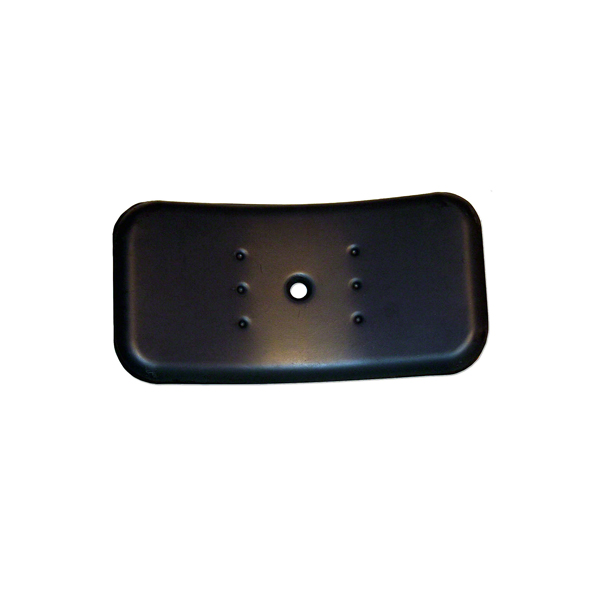

UA91354 Back Rest - 04946AB

UA91354 Back Rest - 04946AB
Seat Back, Back Rest

Replaces 04946AB, U2743, ACS071

Fits ALLIS CHALMERS: IB, RC, WC, WF

Fits CASE: Industrial - VI (Servicable Only)

10-5/8" x 5-5/8" Curved
Also Fits Rumley 6
Dimensions =10-5/8" x 5-5/8"
Curved bare steel

Price: $49.00

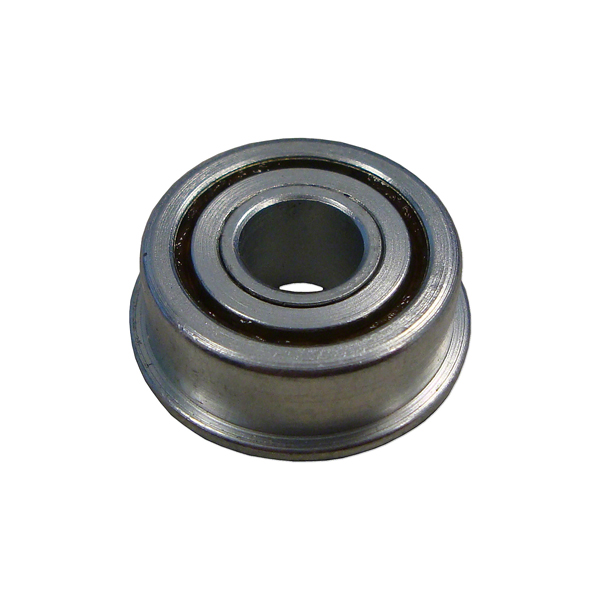

UA91390 Seat Bearing - 832984M1

UA91390 Seat Bearing - 832984M1
Seat Bearing for Knoedler seats

Replaces 832984M1, 10P1668, 71173348, ABC537

Fits ALLIS CHALMERS: with Knoedler Seat - A (2 Required)

Fits CASE: with Knoedler Seat - S, SC, D, DC, DC-3, DC-4, DCS, DH, DI, SC-3, SC-4, SI

Fits FORD: with Knoedler Seat, 2 bearing used - 9N, 2N, 8N, NAA, 600, 601, 620, 621, 630, 631, 640, 641, 650, 651, 661, 671, 681, 700, 740, 741, 771, 800, 801, 811, 820, 821, 840, 841, 850, 851, 860, 861, 871, 881, 900, 901, 941, 950, 951, 960, 961, 971, 981, 2000 (4 Cyl), 4030 (3 Cyl), 4121, 4140

Fits INTERNATIONAL: with Aftermarket Knoedler Seat - H, M, F20, F30

Fits JOHN DEERE: Fits many John Deere models. Verify specifications for your specific application.

Fits MASSEY FERGUSON: Ferguson Tractor with Knoedler Seat, 2 Used - TE20, TEA20, TO20, TO30
Fits MASSEY FERGUSON: with a float-a-matic spring style seat with metal bushings - 50 (SN 533414 & After), 65 (SN 69238 & After), 95, 135 (SN 9A-36650 & Before), 150, 165, 175, 180, 230, 235, 245, 255, 265, 275, 285, 1080

Fits MINNEAPOLIS MOLINE: with Knoedler Seat, 2 used - JetStar, 4 Star, JetStar 2, 4 Star Super, M604, BF, BG, GB, GBD, GBLP, GVI, G, G705, G706, G707, G900, G1000, M5, M504, M602, U302, UB, UTS, UTSD (uses 4), V (uses 8), ZA, ZAS, ZB, ZBE, ZBN, ZBU

3/8" inside diameter (ID)
1" outside diameter (OD)
1-1/8" flange

Seat Bearubg fir Jbiedker Seats

Price: $20.00
