Compressor

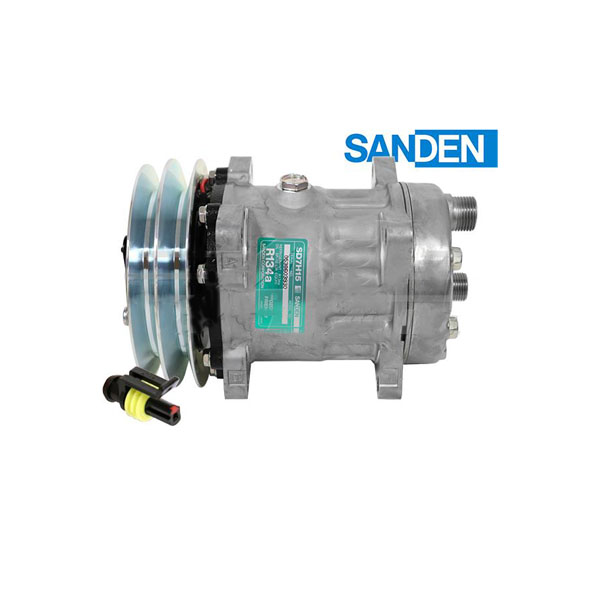

UDZ90702 Compressor, SD7H15 - Replaces 04437338

UDZ90702 Compressor, SD7H15 - Replaces 04437338


Sanden Compressor SD7H15 - 142-149mm, 2 Groove Stepped Clutch 12V
Stepped Rotor Clutch

Replaces number 04437338, 509-5505

Fits DEUTZ: DX4.80, DX4.85, DX4.90, DX4.95, DX6.00, DX6.01, DX6.05, DX6.20, DX6.45

Specifications
COMPRESSOR TYPE SD7H15
HEAD TYPE KG
OIL TYPE R134 Pag Oil
CLUTCH DIAMETER Stepped, 142mm to 149mm
VOLTAGE 12
GROOVES 2
BELT WIDTH Stepped
COIL POSITION N/A
OIL QUANTITY 210cc, 7.15 oz
GAUGE LINE 44.00mm

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge.

Price: $410.00

UDZ999999 Compressor - Replaces 04437338

UDZ999999 Compressor - Replaces 04437338


Compressor SD7H15 - 142-149mm 2 Groove Stepped Clutch 12V

Replaces number 04437338, 509-55053

Fits DEUTZ: DX4.80, DX4.85, DX4.90, DX4.95, DX6.00, DX6.01, DX6.05, DX6.20, DX6.45

Specifications
COMPRESSOR TYPE SD7H15
HEAD TYPE KG
OIL TYPE R134 Pag Oil
CLUTCH DIAMETER Stepped, 142mm to 149mm
VOLTAGE 12
GROOVES 2
BELT WIDTH Stepped
COIL POSITION N/A
OIL QUANTITY 210cc, 7.15 oz
GAUGE LINE 44.00mm

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $320.00

UDZ90701 Compressor, SD508 - Replaces 4338042

UDZ90701 Compressor, SD508 - Replaces 4338042


Compressor, SD508, 6" 2 Groove Clutch, Vertical 8 and 10 Flare

Replaces number 4338042, 7807944, 4330274, 70276762, 509-4013

Fits DEUTZ: DX90, DX92, DX110, DX120, DX130, DX140, DX145, DX160, 6507C, 7007C, 7807C, 6250VF, 6260, 6260FV, 6265, 6275,
DX3.10, DX3.30, DX3.50, DX3.70, DX3.90, DX4.70, DX6.30, DX6.50, DX7.10

Specifications

COMPRESSOR TYPE SD508
HEAD TYPE B
OIL TYPE Pag 100
CLUTCH DIAMETER 152mm, 5.98"
VOLTAGE 12
GROOVES 2
BELT WIDTH 1/2"
OIL QUANTITY 180cc, 6.12oz.
GAUGE LINE 39.55mm

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $290.00

UDZ90703 Compressor - Replaces 4343180

UDZ90703 Compressor - Replaces 4343180


New Heavy Duty A6 Delco Replacement - 12 Volt with 7" Clutch and Dust Protection

Replaces 4343180, 04343180, 1904014M91, 771810M91, UM7005, UDZ90703, 500-080

Must Identify Clutch Diameter

Fits DEUTZ: DX8.30

Fits MASSEY FERGUSON: 1080, 1085, 1100, 1105, 1130, 1135, 1150, 1155, 1805, 2640, 2675, 2705
2745, 2775, 2805, 3505, 3525, 3545, 4800, 4840, 4880, 4900

Replaces A6 w/10PA20 HD 10 Cylinder Denso. Uses Less Power for Greater Efficiency
Uses Original Belt and Hoses. Can be Used for 10:00 and 2:00 Coil Positions. Includes HD Dust Protection and Metric Bolt Kit

Specifications
COMPRESSOR TYPE 10PA20HD
HEAD TYPE Hi Press. Head
OIL TYPE Pag 46v
CLUTCH DIAMETER 6.77"
VOLTAGE 12
GROOVES 1
BELT WIDTH .50, 1/2"
COIL POSITION 10 and 2 O'Clock
MOUNTING HOLES Metric Thread
OIL QUANTITY 7 oz

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $420.00
