Expansion Valves

UF999775 Expansion Valve Fitting Assembly - Replaces 84402857

UF999775 Expansion Valve Fitting Assembly - Replaces 84402857
Expansion Valve Fitting Assembly

Expansion Valve Fitting Assembly

Replaces 84402857, 82034859, 451-11978

Fits FORD NEW HOLLAND: TD80D

Fits CASE INTERNATIONAL: Some Models

Liquid Side - #6 Male Insert O-Ring to #6 Male Flange O-Ring
Suction Side - #10 Male Insert O-Ring to #12 Male Flange O-Ring

Price: $72.00

UF999780 Expansion Valve - Replaces 3902334M91

UF999780 Expansion Valve - Replaces 3902334M91
Expansion Valve, OE Style block valve measures 1.14" wide

Replaces 0.010.2128.0, 3902334M91, 7028951M1, 72275588, 9966613, UA99996, UCA99310, UF999780, UM99096, UW0064, 903-716

Fits FORD NEW HOLLAND: T5040 T5050, T5060, T5070

Fits CASE INTERNATIONAL: JX70U, JX80U, JX90U, JX100U, JX1090U, JX1100U

Fits ALLIS CHALMERS: 6690 (Serial Number 1929 and Above)

Fits MASSEY FERGUSON: 3050 (Serial Number C210010 and Above), 3060 (Serial Number C210010 & Above), 3645 (Serial Number C210010 and Above), 3655 (Serial Number C210010 and Above), 3660 (Serial Number C210010 & Above, 1994 and After), 3670 (Serial Number C210010 & Above), 3690 (Serial Number C210010 & Above),
5425, 5435, 5445, 5450, 5455, 5460, 5465, 5470, 5475, 5480,
8120 (Without High Visibility Cab), 8140 (Without High Visibility Cab), 8150 (Without High Visibility Cab), 8160 (Without High Visibility Cab), 8210 (Serial Number J348040 & Above), 8220 (Serial Number J348040 & Above), 8240 (Serial Number J348040 & Above), 8245 (Serial Number J348040 & Above), 8250 (Serial Number J348040 & Above), 8260, 8270, 8280

Fits WHITE: 6105 (Serial Number 1402 and Above), 6710, 6810

Specifications
TYPE O-Ring
LIQUID INLET #5 O-Ring
LIQUID OUTLET TO EVAPORATOR 14mm O-Ring
INLET FROM EVAPORATOR 14mm O-Ring
OUTLET TO COMPRESSOR 14mm O-Ring
TONAGE 1 1/2

Price: $41.00

UF99126 Expansion Valve - Replaces 9966613

UF99126 Expansion Valve - Replaces 9966613
Expansion valve, block valves, Block Valve measures 1.30" wide

Replaces: 9966613, 82002793, 903-715

Fits FORD NEW HOLLAND: T5030, T5040, T5050, T5060, T5070, T7510, T7520, T7530, T7540, T7550,
TN55D, TN55S, TN60DA, TN60SA, TN65D, TN65S, TN65V, TN70D, TN70DA, TN70F, TN70S, TN70SA, TN75D, TN75DA, TN75F (Reference Number D3923-C4616), TN75S, TN75SA, TN75V, TN80, TN80F, TN85DA, TN90F, TN95DA, TN95F, TN95VA,
TS6020

Fits CASE INTERNATIONAL: JX1060C, JX1070C, JX1075C, JX1080U, JX1090U, JX1100U
Farmall 75N, Farmall 85N, Farmall 95N, Farmall 105N, Farmall 85U, Farmall 95U, Farmall 105U

Specifications
TYPE O-Ring
LIQUID INLET #5 O-Ring
LIQUID OUTLET TO EVAPORATOR 14mm O-Ring
INLET FROM EVAPORATOR 14mm O-Ring
OUTLET TO COMPRESSOR 14mm O-Ring
TONAGE 1 1/2

Price: $41.00

UCA999853 Expansion Valve - Replaces A.310.011.00

UCA999853 Expansion Valve - Replaces A.310.011.00
Expansion Valve

Replaces A.310.011.00, A.311.015.00, 903-719

Fits FORD NEW HOLLAND: T4.55, T4.65, T4.75, T4.85, T4.95, T4.105
T5.95, T5.100, T5.105, T5.110 (1/22/2019 and Before), T5.115
TS6.110 (Tier 4B Models), TS6.120(Fits Tier 4B Models)

Fits CASE INTERNATIONAL: Farmall 95U, Farmall 105U, Farmall 115U

Specifications

TYPE Flange
LIQUID INLET .404" ID
LIQUID OUTLET TO EVAPORATOR .460" ID
INLET FROM EVAPORATOR .567" ID
OUTLET TO COMPRESSOR .725" ID

Price: $62.00

UCA999968 Expansion Valve - Replaces 386535A1

UCA999968 Expansion Valve - Replaces 386535A1
Expansion Valve

Replaces: EA1260, 2L1Z-19849-BA, 317725A1, AH137702, 60-6336T1, 119-9632, AT185093, 87033212, 30/925433, 1990756C1, 1990756C2, 98370C3, 386535A1,86505794, UCA999968, IJCB999969, UM99095, UT90692, UW0065, 903-705

Fits FORD NEW HOLLAND: T8010, T8020, T8030, T8040, T9010, T9020, T9030, T9040, T9050, T9060
T8.275, T8.300, T8.330, T8.360, 8670 (09/01/1993 and Newer), 8670A (02/28/2001 and Newer), 8770 (09/01/1993 and Newer), 8770A (02/28/2001 and Newer), 8870 (09/01/1993 and Newer), 8870A (02/28/2001 and Newer), 8970 (09/01/1993 and Newer), 8970A (02/28/2001 and Newer)

Fits CASE INTERNATIONAL: 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250
7110, 7120, 7130, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250
8910, 8920, 8930, 8940, 8950
MX80C, MX90C, MX100C, MX100, MX110, MX120, MX135, MX150, MX170, MX180, MX200, MX210, MX215, MX220, MX230, MX240, MX245, MX255, MX275, MX280, MX285, MX305
Magnum 180, 190, 200 (Tier 4B CVT and PST), 210, 215, 220 (Tier 4B CVT and PST), 225, 235, 240, 245, 250 (Tier 4B CVT and PST), 255, 260, 275, 280 (Tier 4B CVT and PST), 290, 305, 310 (Tier 4B CVT and PST), 315, 335 (Tier 4B CVT and PST), 340 (Tier 4A and Tier 4A CVT & Tier 4B CVT AND PST), 370, 380 (Tier 4B CVT)
CX50, CX60, CX70, CX80, CX90, CX100

International: 5288 (Use with AP Air Aftermarket Evaporator)

Fits MASSEY FERGUSON: (4225, 4233, 4235, 4240, 4243, 4245, 4253, 4255, 4260, 4263, 4265, 4270 – (Serial Number J47068 & Below with Threaded Type Expansion Valve))
(6120, 6130, 6140, 6150, 6160, 6170, 6180, 6190 – (High Visibility Cab))
(6235, 6245, 6255, 6270, 6280, 6290 (With High Visibility Cab Serial Number J348039 & Below))
6560 (High Visibility Roof)
6265 (High Visibility Roof, Serial Number J348039 and Below)
8120, 8140, 8150, 8160, 8210, 8220, 8240, 8245, 8250

Fits JCB: Fastrac 3155, 3170, 3185, 3190, 3200 (Cummins Engine), 3220, 3230 (Cummins Engine)

Fits WHITE: 6410, 6510

Item Information
1/4" Mounting Holes - 1" Apart Center to Center, R12 and R134a Compatible

Specifications
TYPE O-Ring
LIQUID INLET #6, 3/8" O-Ring
LIQUID OUTLET TO EVAPORATOR #8, 1/2" O-Ring
INLET FROM EVAPORATOR #10, 5/8" O-Ring
OUTLET TO COMPRESSOR #10, 5/8" O-Ring
TONAGE 2

Price: $42.00

UF999861 Expansion Valve, Block Type - Replaces 82023542

UF999861 Expansion Valve, Block Type - Replaces 82023542
Expansion Valve, Block Type

Replaces 82023542, 625.864.0, 903-738

Fits FORD NEW HOLLAND: T6010, T6020, T6030, T6040, T6050, T6060, T6070, T6080, T7030, T7040, T7050, T7060, T7070
TS100A, TS110A, TS115A, TS125A, TS130A, TS135A
T6.120, T6.140, T6.145, T6.150, T6.155, T6.160, T6.165, T6.175, T6.180
T7.170, T7.185, T7.230

Fits JCB: Fastrac 8250

Specifications
TYPE O-Ring
LIQUID INLET #6, 3/8" O-Ring
LIQUID OUTLET TO EVAPORATOR #8, 1/2" O-Ring
INLET FROM EVAPORATOR #10, 5/8" O-Ring
OUTLET TO COMPRESSOR #12, 3/4" O-Ring

Price: $49.00

UF999862 Expansion Valve Fitting with Manifold - Replaces 82027885

UF999862 Expansion Valve Fitting with Manifold - Replaces 82027885
Manifold and Tube Assembly Between Expansion Valve and Hoses

Replaces 82027885, 451-11979

Fits FORD NEW HOLLAND: T6010, T6020, T6030, T6040, T6050, T6060, T6070, T6080, T7030, T7040, T7050, T7060, T7070
TS100A, TS110A, TS115A, TS125A, TS130A, TS135A
T6.145, T6.150, T6.155, T6.160, T6.165, T6.175, T6.180
T7.230

Fits CASE INTERNATIONAL: Some Models
Case/IH and FNH T, TS Series (Check OE number)

Adapter Fitting Between Expansion Valve and Lines

Price: $58.00

UCA999995 Expansion Valve, Block Type - Replaces 82034858

UCA999995 Expansion Valve, Block Type - Replaces 82034858
Expansion Valve

Must Identify Evaporator Inlet and Outlet Size
#8 O-Ring In and #10 O-Ring Out

Replaces: 82034858, 122-6015-H, AZ47109, 122-6015, 30/926003, 923/10098, 903-737

Fits FORD NEW HOLLAND: TD5010(Tier III Models), TD5020(Tier III Models), TD5030, TD5050 (Use with Evaporator 509-3043),
TD60D, TD70D, TD75D, TD80D, TD90D, TD95D,
TD80,
TS6.110, TS6.120, TS6.125, TS6.140

Fits CASE INTERNATIONAL: JX55, JX60, JX65, JX70, JX75, JX80, JX85, JX90, JX95
Farmall: 120A, 125A, 140A
Fits: MXM120 (Ref # D4995 with Original Evaporator), MXM130 (Ref #D4995), MXM140 (Ref #D4995), MXM155 (Ref #D4995), MXM175 (Ref #D4995), MXM190 (Ref #D4995)

Specifications

TYPE Flange
LIQUID INLET #6, 3/8" O-Ring
LIQUID OUTLET TO EVAPORATOR #8, 1/2" O-Ring
INLET FROM EVAPORATOR #10, 5/8" O-Ring
OUTLET TO COMPRESSOR #12, 3/4" O-Ring
TONAGE 2

Price: $62.00

UF99120 Expansion Valve - Replaces D3NN19849A

UF99120 Expansion Valve - Replaces D3NN19849A

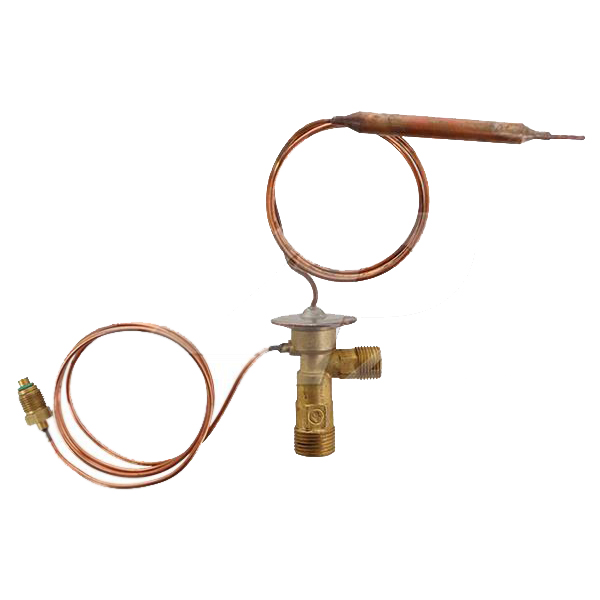

Externally Equalized With 19" Capillary Tube, R12 and R134a Compatible

Replaces number D3NN19849A, 1336422C1, 1072136M91, V63145, 70257322, 60012-0011, AH144896, 66398C1, 1072136M91, 900-170

Fits FORD NEW HOLLAND: 8000 (04/01/1973 to 09/30/1976), 8600 (04/01/1973 and Newer) 9000 (04/01/1973 to 09/30/1976), 9600 (04/01/1973 and Newer)

Fits CASE INTERNATIONAL: International: 786 (Serial Number 10591 and Below), 886 (Serial Number 14353 and Below), 986 (Serial Number 19121 and Below), 1086 (Serial Number 34297 and Below), 1486 (Serial Number 18585 and Below), 1586 (Serial Number 16527 and Below), 4166, 4186, Hydro 186 (Serial Number 10591 and Below)

Fits ALLIS CHALMERS: 200 (Serial Number 4001 & Above), 7000 (Serial Number 8000 & Below, Red Frame), 7030, 7040, 7045, 7050, 7060 (Serial Number 6000 & Below, Red Frame), 7080 (Serial Number 3000 & Below, Red Frame)

Specifications
LIQUID OUTLET TO EVAPORATOR # 8, 1/2" Male Flare
BULB TYPE 3/8" Coil
EQUALIZER TUBE LENGTH 31"
CAPILLARY TUBE LENGTH 19"
TYPE Flare
LIQUID INLET # 6, 3/8" Male Flare
TONAGE 2
EQUALIZER TYPE 1/4" Female Flare Externally Equalized

Price: $40.00

UF99121 Expansion Valve - Replaces 86531348

UF99121 Expansion Valve - Replaces 86531348
Externally Equalized With 28" Capillary Tube, R12 and R134a compatible

Replaces numbers 16996846C2, 1691469C2, 4694475C1, D6AH19849AA, 87022814, D3AH19849AA, 83906905, 83960933, 86531348, E7NN19849AA, 902-225

Fits FORD NEW HOLLAND: 2600, 3600, 4600, 5110, 5600 (01/01/1977 and Newer), 5610, 5700 (01/01/1977 and Newer), 6600 (01/01/1977 and Newer), 6610, 6700 (01/01/1977 and Newer), 6710, 6810, 7410, 7600 (01/01/1977 and Newer), 7610, 7610O, 7700 (01/01/1977 and Newer), 7710, 7810, 7910, 8000 (10/01/1976 and Newer), 8210, 8530, 8630, 8700 (08/01/1976 and Newer), 8730, 8830, 9000 (10/01/1976 and Newer), 9700 (08/01/1976 and Newer), TW5, TW10 (08/01/1976 and Newer), TW15, TW20 (08/01/1976 and Newer), TW25, TW30 (08/01/1976 and Newer), TW35

Specifications
TYPE O-Ring
LIQUID INLET #6, 3/8" Male O-Ring
LIQUID INLET TO EVAPORATOR #8, 1/2" Male O-Ring
BULB TYPE 3/8" Coil
EQUALIZER TUBE LENGTH 17"
EQUALIZER TYPE 1/4" Male O-Ring
TONAGE 2
CAPILLARY TUBE LENGTH 28"

Price: $39.00

UF99123 Expansion Valve - Replaces 9617883

UF99123 Expansion Valve - Replaces 9617883
Internally Equalized With 12" Capillary Tube, R12 and R134a Compatible, Flare

Replaces SFD017844, SFD251038, 72084697, 393352C1, AR49961, 529876M91, 529877M1, A22-14420-1, 168903C1, 244562R1, 70179C1, 9617883, UT99123, UJD999787, UM5000, UT90695, 900-150

Fits FORD NEW HOLLAND: FW20, FW30, FW40, FW60

Fits CASE INTERNATIONAL: International: 656, 706, 756, 806, 856, 2656, 2706, 2756, 2806, 2856, 4366, 4386, 4568, 4586, 4786

Fits JOHN DEERE: 4520, 7520, 7520-4WD

Fits MASSEY FERGUSON: 1085, 1105, 1135, 1155, 1500, 1505, 1800, 1805, 4800, 4840, 4880, 4900

Specifications
TYPE Flare
LIQUID INLET #6, 3/8" Male Flare
LIQUID OUTLET #8, 1/2" Male Flare
BULB TYPE 3/8" Coil
EQUALIZER TUBE LENGTH N/A
TONAGE 1.5
CAPILLARY TUBE LENGTH 12"

Price: $40.00

UF99124 Expansion Valve - Replaces 82000932

UF99124 Expansion Valve - Replaces 82000932
Expansion Valve

Replaces 82000932, F0NN19849AB, 903-730

Must Identify Evaporator Inlet and Outlet Size
- #8 O-Ring In and #8 O-Ring Out on Evaporator Side

Fits FORD NEW HOLLAND: 5640, 6640 (11/01/1991 and Newer), 7740 (11/01/1991 and Newer), 7840 (11/01/1991 and Newer), 8160, 8240 (11/01/1991 and Newer), 8260, 8340 (11/01/1991 and Newer), 8360, 8560, TM115,
TM120 (Serial Number C4994 and Below), TM125, TM130 (Serial Number C4994 and Below), TM135, TM140 (Serial Number C4994 and Below), TM150, TM155 (Serial Number C4994 and Below), TM165, TM175 (Serial Number C4994 and Below), TM190 (Serial Number C4994 and Below),
TS90, TS100, TS110, TS115

Must Identify Evaporator Inlet and Outlet Size
- #8 O-Ring In and #8 O-Ring Out on Evaporator Side

Fits CASE INTERNATIONAL: MXM120 (Reference Number C4995), MXM130 (Reference Number C4995), MXM140 (Reference Number C4995), MXM155 (Reference Number C4995), MXM175 (Reference Number C4995), MXM190 (Reference Number C4995)

Specifications
TYPE O-Ring
LIQUID INLET #6, 3/8" O-Ring
LIQUID OUTLET TO EVAPORATOR #8, 1/2" O-Ring
INLET FROM EVAPORATOR #8, 1/2" O-Ring
OUTLET TO COMPRESSOR #10, 5/8" O-Ring
TONAGE 2

Price: $52.00
