Walt's Tractor Parts | Hydraulic Valves, Side Link Cylinders, Top Link Cylinders |  Hydraulic Top Link Cylinder -

Hydraulic Top Link Cylinder -

UA992101 2

UA992101 2" Top Link Cylinder, 24" Closed Length, 8" Stroke, 3/4" Hole Diameter
Hydraulic Top Link Cylinder (Cat I) (2" Bore)

Replaces number HTL2101, A-TLH006, TLH006, TLH06 --- Equiv. Gannon: 13-535


• All ports .563"-18 ORB w/ two adapters .563"-18 ORBM X .250" NPTM 90 swivel.

Barrel Length 12.438"
Base End Ball Inside Dia .750"
Base End Ball Width 1.375"
Base To Ball Center Lngth 7.563"
Compressed Length 24.063"
PSI 1450.377
Rod End Ball Inside Diame .750"
Rod End Ball Width 1.750"
Stroke 8"
Working Pressure 1450 lbs

Price: $260.00

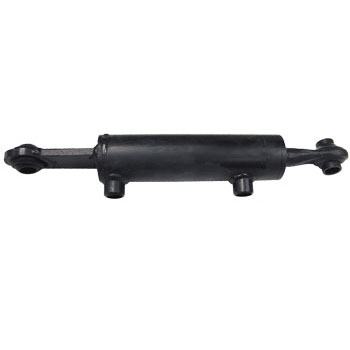

UA992103 2

UA992103 2" Top Link Cylinder, 15" Closed Length, 5" Stroke, 3/4" Hole Diameter
Hydraulic Top Link Cylinder (Cat I) (2" Bore)

Replaces number HTL2103, A-TLH002, TLH02, 13-762 --- Equiv. Gannon: 13-792

• All ports .563"-18 ORB w/ two adapters .563" -18 ORBM X .250" NPTM 90 swivel.

Barrel Length 9"
Base End Ball Inside Dia .750"
Base End Width 1.563"
Base To Ball Center Lngth 3.813"
Compressed Length 15"
PSI 1450.377
Replaces Gannon 13-762
Rod End Ball Inside Diame .750"
Rod End Ball Width 1.750"
Stroke 5"
Working Pressure 1450 lbs

Price: $233.00

UA992102 2

UA992102 2" Top Link Cylinder, 20" Closed Length, 8" Stroke, 3/4" Hole Diameter
Hydraulic Top Link Cylinder (Cat I) (2" Bore)

Replaces number HTL2102, TLH01, A-TLH001 --- Equiv. Gannon: 13-650

• All ports .563"-18 ORB

Barrel Length 12.438"
Base End Ball Inside Dia .750"
Base End Ball Width 1.375"
Base To Ball Center Lngth 3.500"
Compressed Length 20"
PSI 1450.377
Replaces Gannon 13-650
Rod End Ball Inside Diame .750"
Rod End Ball Width 1.750"
Stroke 8"
Working Pressure 1450 lbs

Price: $260.00

UA993101 3

UA993101 3" Top Link Cylinder, 20" Closed Length, 8" Stroke, 3/4" and 1" Hole Diameter
Hydraulic Top Link Cylinder (Cat I Rod/Cat II Base) (3" Bore)

Replaces number HTL3101, TLH03, A-TLH003 --- Equiv. Gannon: 13-544

• All ports .563"-18 ORB w/ two adapters .563" -18 ORBM X .250" NPTM 90 swivel.

Barrel Length 12.438"
Base End Ball Inside Dia 1"
Base End Ball Width 1.750"
Base To Ball Center Lngth 3.500"
Compressed Length 20"
PSI 1450.377
Replaces Gannon 13-544
Rod End Ball Inside Diame .750"
Rod End Ball Width 1.750"
Rope Diameter 1.100"
Stroke 8"
Working Pressure 1450 lbs

Price: $319.00

UA993102 3

UA993102 3" Top Link Cylinder, 21" Closed Length, 8" Stroke, 1" and 1" Hole Diameter
Hydraulic Top Link Cylinder (Cat II) (3" Bore)

Replaces number HTL3102, A-TLH007, TLH07

• Port Sizes .750"-16 ORB

Barrel Length 12.438"
Base End Ball Inside Dia 1"
Base End Ball Width 1.750"
Base To Ball Center Lngth 2.500"
Compressed Length 21"
PSI 1450.377
Rod End Ball Inside Diame 1"
Rod End Ball Width 1.750"
Shaft Diameter 28 mm
Stroke 8"
Working Pressure 1450 lbs

Price: $300.00

UA993103 3

UA993103 3" Top Link Cylinder, 26" Closed Length, 8" Stroke, 1" and 1" Hole Diameter
Hydraulic Top Link Cylinder (Cat II) (3" Bore)

Replaces number HTL3103, TLH05, A-TLH005 --- Equiv. Gannon: 13-827

• All ports .563"-18 orb w/ two adapters .563"-18 ORBM X .250 NPTM 90 swivel.

Barrel Length 12.438"
Base To Ball Center Lngth 5.500"
Compressed Length 26"
PSI 1450.377
Replaces Gannon 13-827
Rod End Ball Inside Diame 1"
Rod End Ball Width 1.750"
Stroke 8"
Working Pressure 1450 lbs.

Price: $270.00

UA993105 3

UA993105 3" Top Link Cylinder, 22" Closed Length, 8" Stroke, 3/4" and 1" Hole Diameter
Hydraulic Top Link Cylinder (Cat I Rod/Cat II Base) (3" Bore)

Replaces number HTL3105, TLH04, A-TLH004 --- Equiv. Gannon: 13-507

• All ports .563"-18 ORB w/ two adapters .563" -18 ORBM X .250" NPTM 90 swivel.

Barrel Length 12.438"
Base End Ball Inside Dia 1"
Base End Ball Width 1.750"
Base To Ball Center Lngth 5.500"
Compressed Length 22"
PSI 1450.377
Replaces Gannon 13-507
Rod End Ball Inside Diame .750"
Rod End Ball Width 1.750"
Stroke 8"
Working Pressure 1450 lbs

Price: $340.00

UA993106 3

UA993106 3" Top Link Cylinder, 20" Closed Length, 8" Stroke, 3/4" and 3/4" Hole Diameter
Hydraulic Top Link Cylinder (Cat I) (3" Bore)

Replaces number HTL3106, TLH08, A-TLH008

• All ports .563-18 ORB w/ two adapters .563"-18 ORBM X .250" NPTM 90 swivel.

Barrel Length 12.438"
Base End Ball Inside Dia .750"
Base End Ball Width 1.750"
Base To Ball Center Lngth 3.500"
Compressed Length 20"
PSI 1450.377
Rod Diameter 1.10"
Rod End Ball Inside Diame .750"
Rod End Ball Width 1.750"
Stroke 8"
Working Pressure 1450 lbs

Price: $335.00
