Walt's Tractor Parts | Other Tractor, Forklift and Skidloader Parts -- | Hyster Forklift Parts -- | Steering |  Repair Parts-HYSTER --

Repair Parts-HYSTER --

UHYST100 Column Jacket Bearing---Replaces 11305

UHYST100 Column Jacket Bearing---Replaces 11305


Replaces number 11305

Replacement bearing for many OEM applications as well as service
replacement for obsolete parts.
Use with tube jackets having 1.75" o.d. and 7/8" o.d. shafts.

Use as replacement for these manufacturer's part numbers:

Allis Chalmers AGCO: 4914125, 74914125, 1173696
Case: L35675
Caterpillar : 0686745
Clark: 949064
Ford: D2NN3D650A
I-H : 892421C1
White: 10P3421, 31-2748347, 25-1003100
Yale: 508972800


Use as service replacement for these manufacturer's part numbers:
(Note: Spring and seat hardware no longer needed with this part.)

Caterpillar: 0041930 or 0062966 bearing, 0062967 seat, 0062968 washer, 0062969 spring.
Clark: 871035 bearing, 857271 spacer, 863829 washer, 871037 seat, 871038 spring.
Yale: 062569900 bearing, 062569300 seat, 062569500 spring.

Price: $20.00

UHYST103 Stud Roller Bearing for HPS 52 Gears---Replaces 13004

UHYST103 Stud Roller Bearing for HPS 52 Gears---Replaces 13004
Replaces number 13004

Stud roller bearing assembly for all HPS52 Series gears.
Part of RK300 repair kit for gears with external valves and RK100 repair kit for gears with internal valves.

Replaces the following manufacturer's part numbers:

Allis Chalmers # 74985305
Cat # 0041941
Hyster # 233259A
IHC # 871252R91
Yale # 052671200

Price: $114.75

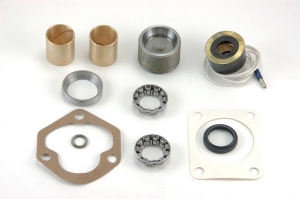

UHYST104 Repair Kit - Saginaw 530 Gears - 3/4

UHYST104 Repair Kit - Saginaw 530 Gears - 3/4" Column Shaft
Replaces number RK350

This kit is for Saginaw made 530 Series gears that have a 267283 or 5691526
casting number and 3/4" OD solid column shafts.

NOTE: Side cover bushing not included in kit but available as part # 10809.

Use this kit to service the following part numbers:
Baker 102400
Clark 626162, 637023, 639892, 1697585
Hyster 97569A, 97570A
Yale 500390600

Price: $130.00

UHYST105 Repair Kit for TRW/Ross HPS52 Gear w/Int. Valve

UHYST105 Repair Kit for TRW/Ross HPS52 Gear w/Int. Valve
Replaces number RK100

This kit is for TRW/Ross made HPS52 Series gears that have a HPS522998 or HPS522999 main housing cast numbers and internal 3 bolt directional valves. To see a list of the contents and a typical gear they are used in, click here.

Use this kit to service the following part numbers:
Allis Chalmers # 4704703, 4739404
Caterpillar # 0035431, 0637867
Hyster # 110299, 110491A, 112378A, 113344A, 133776, 133779
Yale # 050032000, 050032100

Casting numbers on main housing: HPS522998, HPS522999



Price: $210.00

UCLRK058 Side Cover Bushing---Replaces 10809

UCLRK058 Side Cover Bushing---Replaces 10809
Replaces number 10809, 851863

Side Cover Bushing, used in many popular tractor,forklift, and industrial Saginaw
steering gears as well as older automobiles and light trucks.

The approximate dimensions are:
Outside diameter: 1.25" Inside diameter: 1.125" Length: .8125"

NOTE: This bushing requires final sizing after installation.


This part replaces the following manufacturer's part numbers:
Baker # 321MGX1
Clark # 851863
Ford # C7NN3N654A
Saginaw # 266034
Yale # 016355200

Used in these popular housing casting numbers:

267283, 267053, 267278, 268254, 5691526, 5668220, 5660041, 7803263, 7803705



Price: $17.50

UHYST106 Wormshaft---Replaces 200088

UHYST106 Wormshaft---Replaces 200088
Replaces number 200088

Used on H60-150C

Wormshaft (also known as cam and wheel tube) for Hyster power assist gear part numbers 112378A

Overall length 37"

This is an American made aftermarket part that replaces worms stamped with # HPS523041.

Price: $375.00

UHYST110 Standard Seal Kit for Steering Valves

UHYST110 Standard Seal Kit for Steering Valves
Replaces number SK120

This kit services Char-Lynn units with the following part number prefixes that came equipped
with the standard input torque seal and gland (for low torque kit see part #SK127):
All letter/number part numbers (i.e. UK-301, UC-312), 201-, 211-, 212-, 213-, 241-, 243-, 261-, 262-, 263-.

If you have a CharLynn steering valve with a removable square top cover this kit will work.


This kit replaces the following mfr. part numbers:

Allis-Chalmers # 4914283
Baker # 123555
CharLynn part # 5140-000, 64417-000, 64418-000 and 64466-000
Caterpillar # 0773524, 0972626
Clark # 905074
Hyster # 158884 and 314993
Toyota # 04451-10220-71
Yale # 517812817
Nissan # 49440-00H01

Price: $36.90
