Walt's Tractor Parts | International / Farmall Tractor Parts | Miscellaneous International - Farmall Parts | Seat | Seat Parts - Farmall |  Seat Frame & Seat Support

Seat Frame & Seat Support

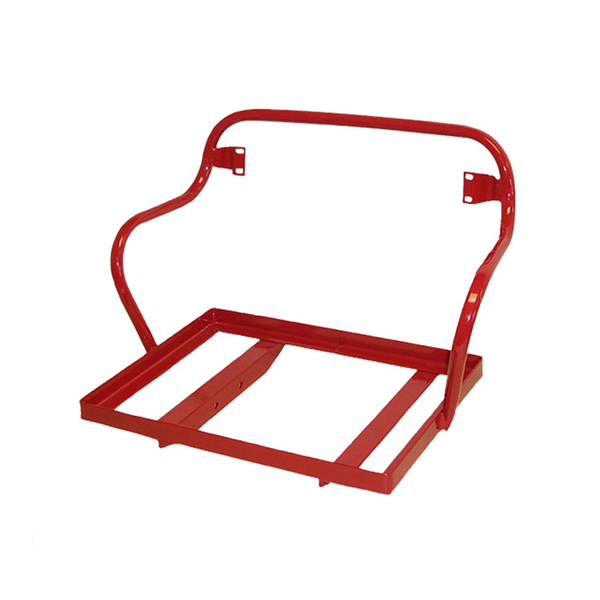

UT5477 Seat Frame, Red - 364399R91

UT5477 Seat Frame, Red - 364399R91
Red Seat Frame

Replaces 364399R91, 6172

Fits INTERNATIONAL: Farmall - 100, 130, 140, 300, 350 (International), 460 (International Utility), 915, A, AV, B, BN, Cub, Cub Lo-Boy, Super A, Super A-1, Super AV, Super AV-1

Seat Frame, Red

Requires Additional Shipping
Authorize Additional Shipping Charges in Shipping Notes at Checkout OR Call for Shipping Quote

Price: $235.00

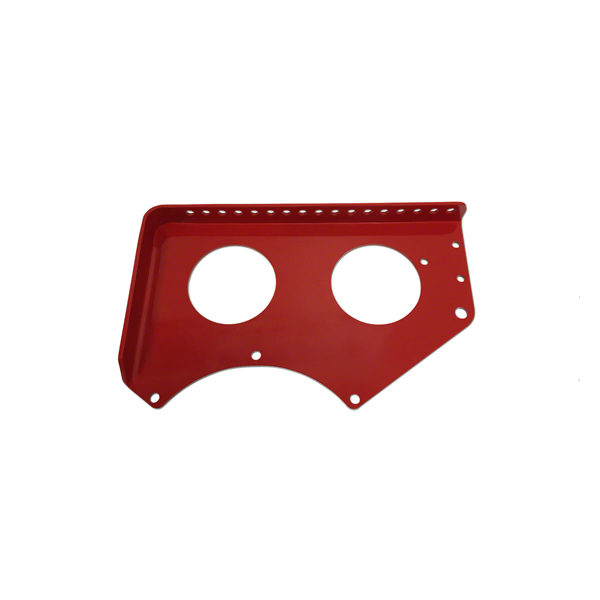

UT5510 Seat Support Bracket, RH - 51182D

UT5510 Seat Support Bracket, RH - 51182D
Right Seat Support Bracket

Replaces 51182D, IHS938

Fits INTERNATIONAL: A, Super A, Super A-1, Super AV, Super AV-1, B, BN, 100, 130, 140

Seat Support Bracket, RH

Price: $86.00

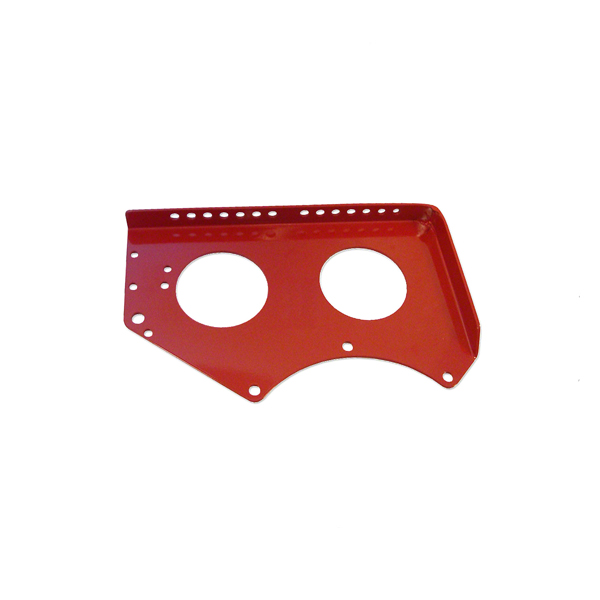

UT5511 Seat Support Bracket, LH - 51181D

UT5511 Seat Support Bracket, LH - 51181D
Left Side Seat Support Bracket

Replaces 51181D, 350007R3, 350007R2, IHS936

Fits INTERNATIONAL: A, Super A, Super A-1, Super AV, Super AV-1, B, BN, 100, 130, 140

Seat Support Bracket, LH

Price: $86.00

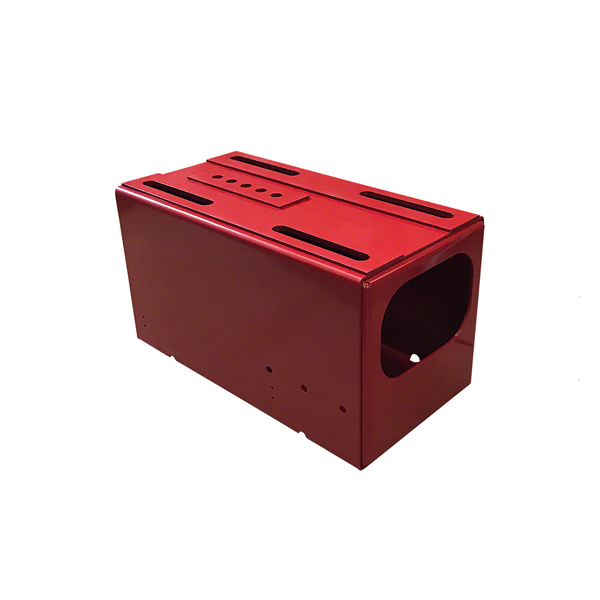

UT5508 Toolbox and Seat Support - 352086R91

UT5508 Toolbox and Seat Support - 352086R91
Toolbox & Seat Support

Replaces 352086R91, 359572R92, IHS933

Fits INTERNATIONAL: without Remote or Fast Hitch - C, Super C without remote or fasthitch

15-1/8" length
8-5/16" height
7-13/16" width
verify tractor model, fit notes, and measurements before ordering

Toolbox & Seat Support

Requires Additional Shipping
Authorize Additional Shipping Charges in Shipping Notes at Checkout OR Call for Shipping Quote

Price: $210.00

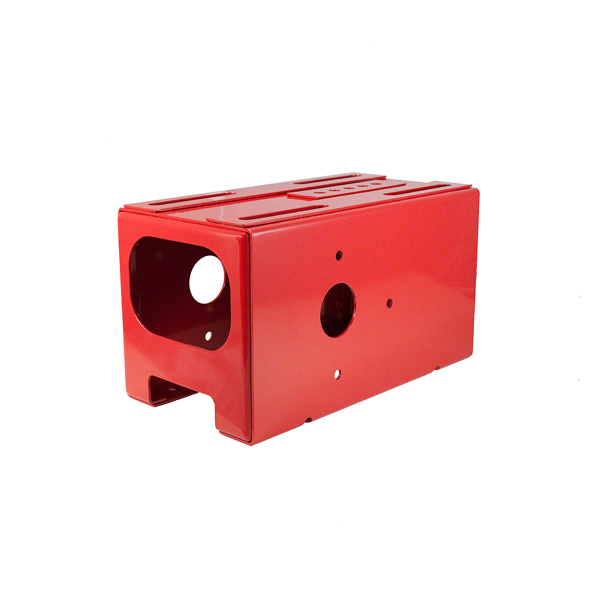

UT5509 Toolbox and Seat Support - 359572R92

UT5509 Toolbox and Seat Support - 359572R92
Toolbox & Seat Support

Replaces 359572R92, 356826R92, 360710R93, IHS1502

Fits INTERNATIONAL: With Remote or Fast Hitch - C, Super C, 200, 230 with remote or fasthitch

For models with remote or fast hitch

Toolbox & Seat Support

Requires Additional Shipping
Authorize Additional Shipping Charges in Shipping Notes at Checkout OR Call for Shipping Quote

Price: $220.00

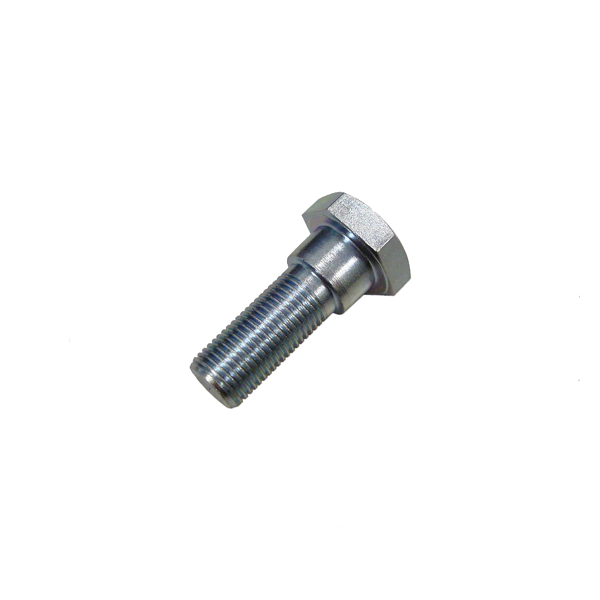

UT5390 Seat Mounting Plate Shoulder Bolt - 352101R1

UT5390 Seat Mounting Plate Shoulder Bolt - 352101R1
Seat Mounting Plate Shoulder Bolt

Replaces 352101R1, 358268R2, IHS944

4 are used to bolt the seat base to battery box or toolbox (sold individually)

Fits INTERNATIONAL: C, Super C, Super H (SN 19234 & After), Super HV (SN 19234 & After), Super M (SN 19234 & After), Super MD (SN 19234 & After), Super MDTA, Super MTA, 200, 300, 350 (Farmall Rowcrop), 400, W400 (Wheatland), 450, W450 (Wheatland), 460 (w/ Standard Seat), 560 (w/ Standard Seat), 660 (w/ Standard Seat)

1/2" - 20 NF
1-.750" overall length
Used to bolt seat base to battery box or toolbox
4 used per tractor

Seat Mounting Plate Shoulder Bolt

Price: $10.00

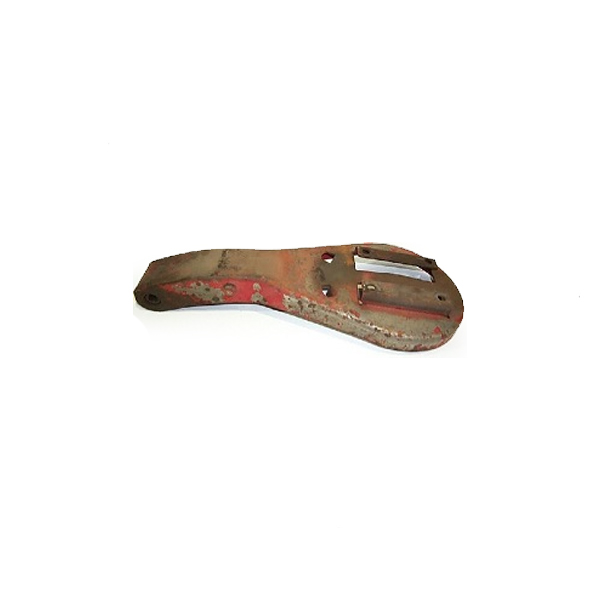

UT55900U Seat Support Bracket, Used - 352599R

UT55900U Seat Support Bracket, Used - 352599R
Used Seat Support Bracket

Replaces 352599R

Fits INTERNATIONAL: C, Super C, M, Super M, 200, 230, 300, 400, 450

Seat Support Bracket, Used

Price: $100.00

UT90090 Rope Trip Plow Clip - 352118R1

UT90090 Rope Trip Plow Clip - 352118R1
Rope Trip Plow Clip

Replaces 52118R1, 58709D, ABC3910

Fits ALLIS CHALMERS: with optional MONROE EASY RIDE SEAT - B, C, CA, RC, U, WC, WF

FITS CASE: with optional MONROE EASY RIDE SEAT - C, CC, D, DC, S, SC

Fits INTERNATIONAL: B (w/ Monroe Easy Ride Seat), BN (w/ Monroe Easy Ride Seat), C, Super C, H, HV, Super H, Super HV, M, MD, Super M, Super MD, Super MDTA, Super MTA, MV, Super MV, O4, O6, ODS6, OS4, OS6, Super W4, W4, Super W6, Super W6TA, W6, W9, Super WD6, WD6, Super WD9, WD9, WDR9, WR9, WR9S, F20 (w/ Monroe Easy Ride Seat), F30 (w/ Monroe Easy Ride Seat), 200, 230, 300 (Rowcrop), 340 (Rowcrop), 350 (Rowcrop), 400, W400, 450, W450, 460 (Farmall, Rowcrop, w/ pan seat), 560 (Farmall, Rowcrop, w/ pan seat), 600, 650, 660 (Farmall, Rowcrop, w/ pan seat)

Fits JOHN DEERE: with optional MONROE EASY RIDE SEAT - A (SN 583999 & Before), B (SN 200999 & Before), G (SN 25999 & Before), L, LA

Fits MASSEY HARRIS: Mustang (23), 22, 30, 33, 44, 55, 333, 444, 555

Fits MINNEAPOLIS MOLINE: with optional MONROE EASY RIDE SEAT - BF, BG, BIG, General

Fits OLIVER: with optional MONROE EASY RIDE SEAT - 60, 70, 80, 90

2.993" overall length
0.056" thick
0.462" OD hole
0.751" OD hole

Mounts to existing seat pan bolt or on earlier tractors it mounts to existing seat pivot pin.

Rope Trip Plow Clip

Price: $10.00
