Walt's Tractor Parts | International / Farmall Tractor Parts | Miscellaneous International - Farmall Parts | Seat | Seat Parts-Farmall |  Seat Pivot Rod or Hinge Pin

Seat Pivot Rod or Hinge Pin

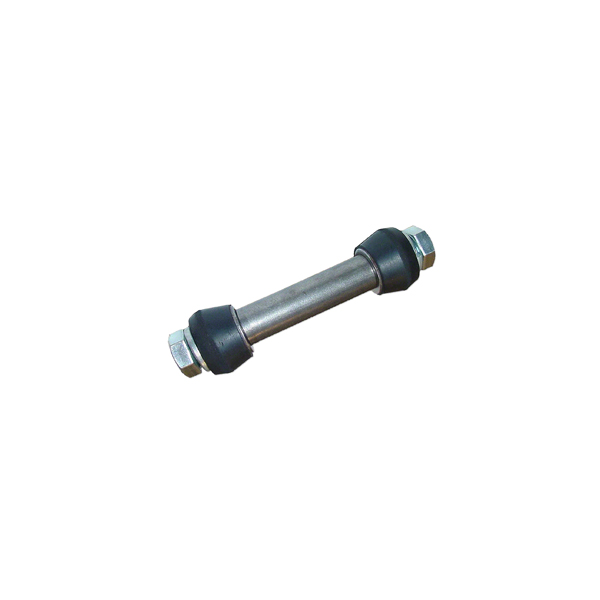

UA91373 Pivot Support Rod - 352616R1

UA91373 Pivot Support Rod - 352616R1
Seat Pivot Support Rod, 3 1/2"

Replaces 352616R1, 352650R1, 355753R1, 72696R1, IHS584

Fits ALLIS CHALMERS: equpped w/ Monroe Easy Ride seat - B, C, CA, RC, U, WC, WF

Fits INTERNATIONAL: C, Super C, H, HV, Super H, Super HV, M, MD, Super M, Super MD, Super MDTA, Super MDV, MDV, Super MTA, MV, Super MV, Super W6TA, 200, 230, 300 (Farmall Rowcrop), 350 (Farmall Rowcrop), 400, 450, 560, 600, 650, 660

Includes:
2 special machine washers
2 rubber bushings
2 #5 bolts
2 lock washers

Seat Pivot Support Rod

Price: $20.00

UF999755 Pivot Support Rod, 6

UF999755 Pivot Support Rod, 6" - 230287
6" Seat Pivot Support Rod

Replaces 230287, 352648R1, 352650R1, 72696R1, IHS585

Rod Length : 6"
Rod Diameter: .710"
Thread dimensions: 1/2"-20 UNF
Overall length : 7-1/4"

Fits FORD: 1947-1954 w/ Monroe Seat - 8N, NAA

Fits INTERNATIONAL: H, HV, Super H, Super HV, M, MD, Super M, Super MD, Super MDV, MDV, Super MTA, MV, Super MV

Fits MASSEY HARRIS: Mustang 23 (w/ Velvet Ride Seat), 22 (Late), 30, 33, 44, 55, 333, 444, 555

Includes:
2 special machine washers
2 rubber bushings
2 #5 bolts
2 lock washers

Seat Pivot Support Rod, 6"

Price: $24.00

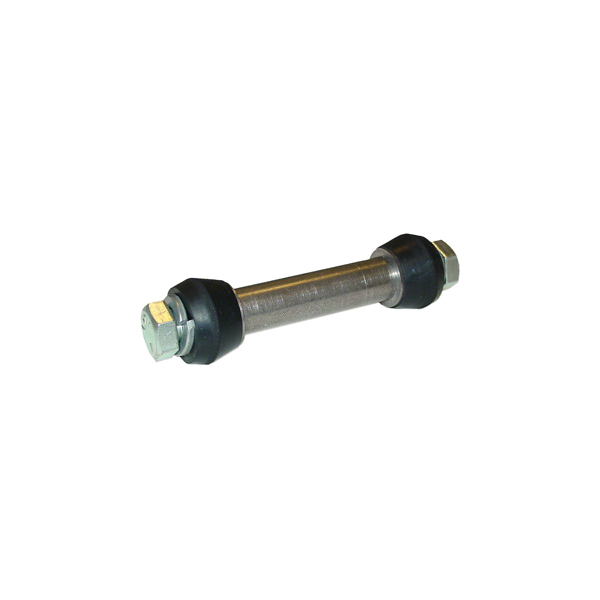

UT5362 Pivot Support Rod - 1000064M1

UT5362 Pivot Support Rod - 1000064M1
Pivot Pin, 4" Long

Replaces 1000064M1, MHS046

Fits CASE: with Optional Monroe Easy Ride Seat - S, SC, C, CC, CI, D, DC, DC-3, DC-4, DCS. DH, DI, DO, DV, SC-3, SC-4, SI, SO

Fits INTERNATIONAL: Late Models with Monroe Easy Ride Seat - F20, F30

Fits MASSEY HARRIS: Challenger (w/ Monroe Easy Ride Seat), Mustang 23, 30 (Late), 44 Special, 333, 444, 555 (w/ Velvet Ride Seat)

Fits MINNEAPOLIS MOLINE: with MONROE EASY RIDE SEAT - BF, BG, BIG, General

4" Long

Pivot Pin

Price: $28.00

UA91374 Seat Shock Bushing, Rubber - 222488

UA91374 Seat Shock Bushing, Rubber - 222488
Rubber Seat Shock Bushing

Replaces 222488, 70222488, T19118, 230288, 250416R1, 72696R1, F3296R, R26832, 760674M1, IHS325

Fits ALLIS CHALMERS: B, C, CA, D10, D12, D14, D15, D17, D19, D21, RC, U, WC, WD, WD45, WF, 170, 175, 180, 185, 190, 190XT, 200, 210, 220, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, 7580

Fits CASE: equipped w/ Monroe Easy Ride seat - S, SC, C, CC, CI, D, DC, DC-3, DC-4, DCS, DH, DI, DO, DV, SC-3, SC-4, SI, SO

Fits FORD: equipped w/ Monroe Easy Ride seat - 9N (1939-1952), 2N, (1939-1952), 8N (1939-1952), Jubilee (1954), NAA (1953)

Fits INTERNATIONAL: C, Super C, H, HV, Super H, Super HV, M, MD, Super M, Super MD, Super MDV, MDV, MTA, MV, Super MV, F20 (with Monroe Easy Ride seat), F30 (w/ Monroe Easy Ride seat), 200, 230, 300, 350, 400, 450, 460, 560, 600, 650, 660

Fits JOHN DEERE: A (w/ Easy Ride seat), B (w/ Easy Ride seat), G (w/ Easy Ride seat), L (w/ Easy Ride seat), LA (w/ Easy Ride seat), 50 (w/ Float Ride seat), 520 (w/ Float Ride seat), 530 (w/ Float Ride seat), 620 (w/ Float Ride seat), 630 (w/ Float Ride seat), 720 (w/ Float Ride seat), 730 (w/ Float Ride seat), 80 (w/ Float Ride seat), 820 (2 Cyl, w/ Float Ride seat), 830 (2 Cyl, w/ Float Ride seat), 1020, 1030, 1520, 2020, 2030, 2035, 2130, 2135, 2140 (SN 430000 & After), 2350, 2440 (SN 340999 & After), 2510, 2520, 2550, 2630, 2640 (SN 340999 & After), 2750, 2940, 2950, 3010, 3020, 3130, 3040 (SN430000 & After), 3135, 3140 (SN 430000 & After), 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520, 8430, 8630

Fits MASSEY HARRIS: Challenger (w/ Monroe Easy Ride seat), Mustang (23), 22, 30, 33, 44, 333, 444, 555

Fits MINNEAPOLIS MOLINE: equipped w/ Monroe Easy Ride seat - BF, BG, BIG, General

Fits OLIVER: equipped w/ Monroe Easy Ride seat - 60, 70, 80, 90

For the horizontal bolt hole(s)
1.223" outside diameter at the largest point
0.597" hole inside diameter
0.724" overall length

Seat Shock Bushing, Rubber

Price: $3.00

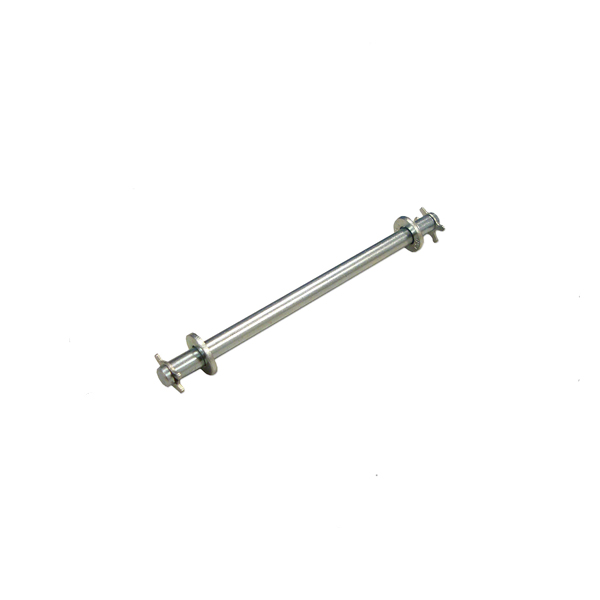

UT5364 Hinge Pin with Clips & Spacers - for Hydraulic Flip Seat - 356892R2

UT5364 Hinge Pin with Clips & Spacers - for Hydraulic Flip Seat - 356892R2
Rear Hinge Pin, Clips And Spacers: For Hydraulic Flip Seat

Replaces 356892R2 (pin), 356893R2 (clip), 228280 (washer), IHS977

Fits INTERNATIONAL: C, Super C, H, HV, M, MD, Super M, Super MD, Super MDV, MDV, MTA, MV, Super MV, Super W6TA, Super WD6TA, 200, 230, 300 (Farmall Rowcrop), 350 (Farmall Rowcrop), 400, W400 (Wheatland), 450, W450 (Wheatland), 460 (W/ pan seat), 560 (w/ pan seat), 600, 650, 660 (w/ pan seat)

3/8" OD
7" LENGTH

Rear Hinge Pin, Clips And Spacers: For Hydraulic Flip Seat

Price: $20.00
