Seat Shock Absorber -

UA91369 Seat Shock Absorber, Rear Mount - 352587R92

UA91369 Seat Shock Absorber, Rear Mount - 352587R92
Seat Shock Absorber, Rear Mount

Replaces 352587R92, T19116, IHS329

Fits tractors equipped with optional Monroe "Easy-Ride" seat with rear mount shock absorber

Fits ALLIS CHALMERS: equipped w/ Monroe seat - B, C, CA, RC, U, WC, WF

Fits FORD: equipped w/ Monroe Easy Ride seat - 9N (1939-1954), 2N (1939-1954)

Fits INTERNATIONAL: Farmall - H, HV, M, MD, F20 (w/Monroe Easy Ride Seat), F30 (w/ Monroe Easy Ride Seat)

Fits OLIVER: equipped w/ Monroe Easy Ride Seat - 60, 70, 80

Center to Center compressed length 11-1/2 inch
Center to Center Extended length 18-1/8 inch

Price: $47.00

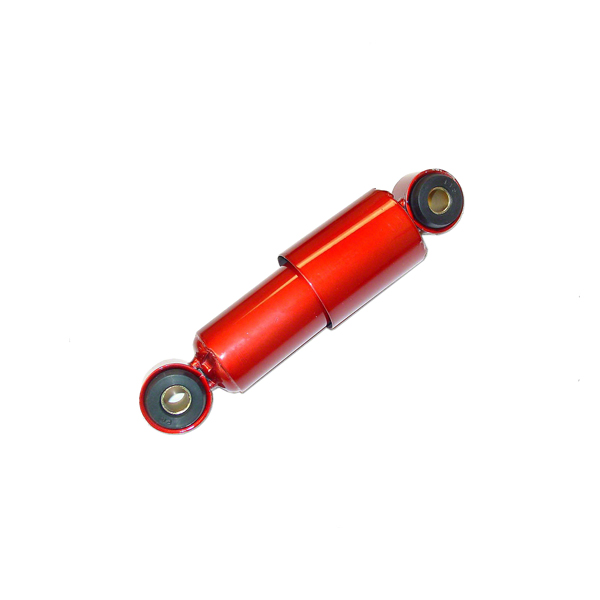

UT5370 Mid Mounted---Replaces 351750R93

UT5370 Mid Mounted---Replaces 351750R93


Replaces number 351750R93, IHS347

Fits: C, Super C, Super H, HV, Super M, Super MD, MV, Super MV, MDV, Super MDV, MTA, 200, 230, Farmall 300, Farmall 350, Farmall 400
Farmall 450, Farmall 460, Farmall 560, Farmall 660 with Standard Seat

7-1/4 inch center to center compressed length
9-1/8 inch center to center extended length

One horizontal bolt hole at each end

Price: $42.00

UT5371 Mid Mounted

UT5371 Mid Mounted
Replaces number MHS044

Fits: C, Super C, Super H, HV, Super M, Super MD, MV, Super MV, MDV, Super MDV, MTA, 200, 230, Farmall 300, Farmall 350, Farmall 400
Farmall 450, Farmall 460, Farmall 560, Farmall 660 with Standard Seat

6-1/4 inch center to center compressed length
8-1/4 inch center to center extended length

One horizontal bolt hole at each end

Price: $42.00

UT5372 Mid Mounted---Replaces 353204R93

UT5372 Mid Mounted---Replaces 353204R93
Replaces number 353204R93, IHS465

Fits H, HV, Super HV, M, Super M, MD, Super MD, MV, Super MV, MDV, Super MDV, MTA,

9-1/8 inch center to center compressed length
11 inch center to center extended length

One horizontal bolt hole at one end and stud at other end

Price: $42.00

UT5405 Seat Shock Absorber with Hardware---Replacs 372751R91

UT5405 Seat Shock Absorber with Hardware---Replacs 372751R91


Replacs number 372751R91, IHS646

Closed Measure: Stud to Stud 7-3/16"

Fits: 504, 544, 656, 666, 686, 706, 756, 766, 806, 826, 856, 966, 1026, 1066, 1206, 1256, 1456, 1466, 1468, 1566, 1568, 2504, 2544, 2656,
2706, 2756, 2806, 2826, 2856, Hydro70, Hydro 86, Hydro 100, 4156, 4166

Price: $45.00

UA91374 Seat Shock Bushing, Rubber - 222488

UA91374 Seat Shock Bushing, Rubber - 222488
Rubber Seat Shock Bushing

Replaces 222488, 70222488, T19118, 230288, 250416R1, 72696R1, F3296R, R26832, 760674M1, IHS325

Fits ALLIS CHALMERS: B, C, CA, D10, D12, D14, D15, D17, D19, D21, RC, U, WC, WD, WD45, WF, 170, 175, 180, 185, 190, 190XT, 200, 210, 220, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, 7580

Fits CASE: equipped w/ Monroe Easy Ride seat - S, SC, C, CC, CI, D, DC, DC-3, DC-4, DCS, DH, DI, DO, DV, SC-3, SC-4, SI, SO

Fits FORD: equipped w/ Monroe Easy Ride seat - 9N (1939-1952), 2N, (1939-1952), 8N (1939-1952), Jubilee (1954), NAA (1953)

Fits INTERNATIONAL: C, Super C, H, HV, Super H, Super HV, M, MD, Super M, Super MD, Super MDV, MDV, MTA, MV, Super MV, F20 (with Monroe Easy Ride seat), F30 (w/ Monroe Easy Ride seat), 200, 230, 300, 350, 400, 450, 460, 560, 600, 650, 660

Fits JOHN DEERE: A (w/ Easy Ride seat), B (w/ Easy Ride seat), G (w/ Easy Ride seat), L (w/ Easy Ride seat), LA (w/ Easy Ride seat), 50 (w/ Float Ride seat), 520 (w/ Float Ride seat), 530 (w/ Float Ride seat), 620 (w/ Float Ride seat), 630 (w/ Float Ride seat), 720 (w/ Float Ride seat), 730 (w/ Float Ride seat), 80 (w/ Float Ride seat), 820 (2 Cyl, w/ Float Ride seat), 830 (2 Cyl, w/ Float Ride seat), 1020, 1030, 1520, 2020, 2030, 2035, 2130, 2135, 2140 (SN 430000 & After), 2350, 2440 (SN 340999 & After), 2510, 2520, 2550, 2630, 2640 (SN 340999 & After), 2750, 2940, 2950, 3010, 3020, 3130, 3040 (SN430000 & After), 3135, 3140 (SN 430000 & After), 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520, 8430, 8630

Fits MASSEY HARRIS: Challenger (w/ Monroe Easy Ride seat), Mustang (23), 22, 30, 33, 44, 333, 444, 555

Fits MINNEAPOLIS MOLINE: equipped w/ Monroe Easy Ride seat - BF, BG, BIG, General

Fits OLIVER: equipped w/ Monroe Easy Ride seat - 60, 70, 80, 90

For the horizontal bolt hole(s)
1.223" outside diameter at the largest point
0.597" hole inside diameter
0.724" overall length

Seat Shock Bushing, Rubber

Price: $3.00

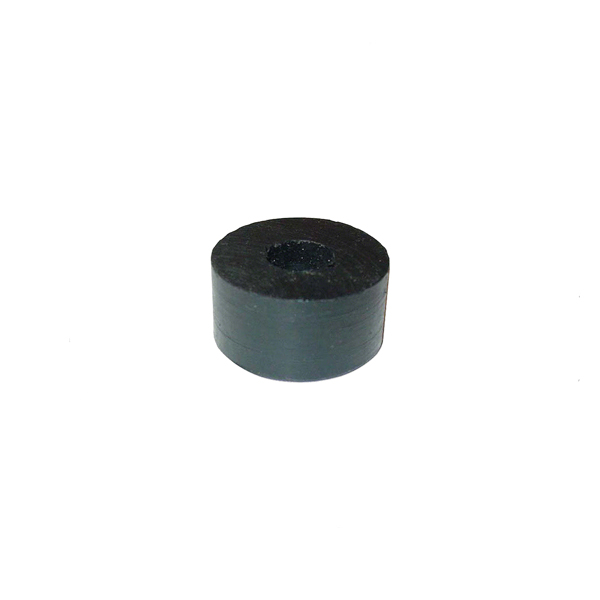

UT5374 Rubber Seat Shock Bushing for Stud---Replaces 353205R1

UT5374 Rubber Seat Shock Bushing for Stud---Replaces 353205R1
Replaces number 353205R1, IHS533

2 Used per stud

Price: $2.00

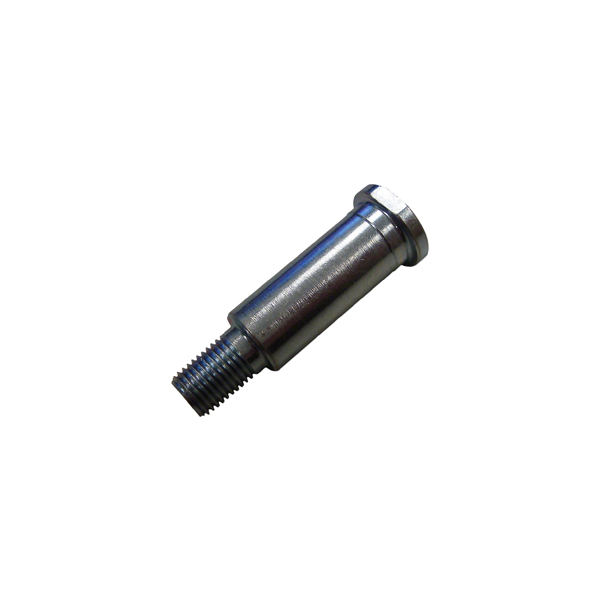

UA91379 Mounting Bolt - 230290

UA91379 Mounting Bolt - 230290
Shock Absorber Mounting Bolt

Replaces 230290, T19121, 351751R1, 760662M1, ABC526

Fits ALLIS CHALMERS: equipped with Monroe Easy Ride seat - B, C, CA, RC, U, WC, WD (Seviceable Only), WD45 (Seviceable Only), WF

Fits FORD: equipped with Monroe Easy Ride seat (1939-1954) - 9N, 2N, 8N, Jubilee, NAA

Fits INTERNATIONAL: Super MDTA, MTA, WD6TA

Fits MASSEY HARRIS: equipped with Monroe Easy Ride seat - Challenger

Fits MINNEAPOLIS MOLINE: equipped with Monroe Easy Ride seat - BF, BG, BIG, General

Fits OLIVER: equipped with Monroe Easy Ride seat - 60, 70, 80

Silver zinc finish
7/16" - 20 NF thread
0.625" shoulder
2.380" overall length

Shock Absorber Mounting Bolt

Price: $11.00

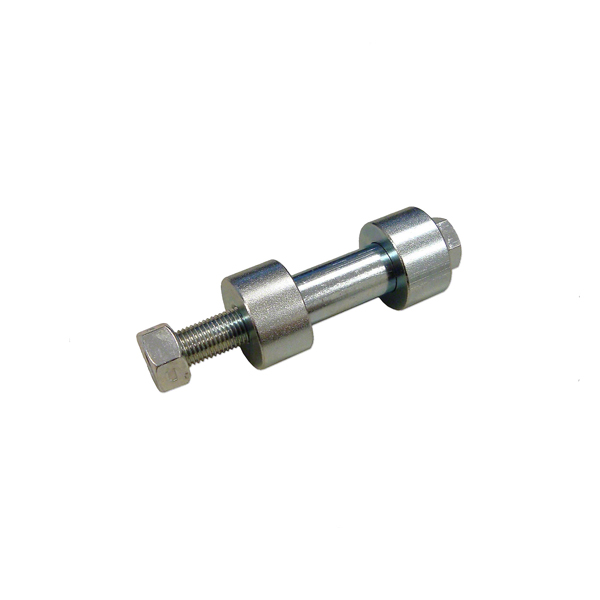

UT5389 Upper Shock Bolt

UT5389 Upper Shock Bolt
Replaces number 361033R91, IHS979

Includes bolt, 2 spacers, tube, nut

Fits: C sn 36426 and up, H, M, MD, Super C, Super H, Super M, MTA, Late Super W6, 200, 230, Farmall 300, Farmall 350, 400, 450, W400, W450

Fits the following with standard seat: 460, 560, 660, 650, 660

Price: $33.00

UT5390 Seat Mounting Plate Shoulder Bolt

UT5390 Seat Mounting Plate Shoulder Bolt
Replaces number 352101R1, 358268R2, IHS944

4 are used to bolt the seat base to battery box or toolbox (sold individually)

Fits: C sn 36426 and up, H, M, MD, Super C, Super H, Super M, MTA, Late Super W6, 200, 230, Farmall 300, Farmall 350, 400, 450, W400, W450
Fits the following with standard seat: 460, 560, 660, 650, 660

Price: $9.00
