Walt's Tractor Parts | International / Farmall Tractor Parts | Miscellaneous International - Farmall Parts | Seat | Seat Parts-Farmall |  Seat Spring -

Seat Spring -

UT5365 Seat Coil Spring - 354670R2

UT5365 Seat Coil Spring - 354670R2
New Seat Coil Spring

Replaces T19117, T19886, 230279, 354670R1, 354670, 354670R2, 760666M2, 760669M1, 760699M1, IHS030

Fits ALLIS CHALMERS: equipped w/ optional Monroe Easy Ride Seat - B, C, CA, RC, U, WC, WF

Fits FORD: equipped w/ optional Monroe Easy Ride Seat - 9N (1939-1954), 2N (1939-1954), 8N, (1939-1954), Jubilee (1939, 1954), NAA (1939-1954)

Fits INTERNATIONAL: Farmall - B (w/ Monroe Easy Ride Seat), BN (w/ Monroe Easy Ride Seat), C, Super C, H, HV, Super H, Super HV, M, MD, Super M, Super MDV, Super MTA, MV, Super MV, F20, F30, 200, 230, 300 (Row Crop), 350 (Row Crop), 400 (Row Crop), 450 (Row Crop), 460, 560. 600, 650, 660

Fits OLIVER: equipped with optional Monroe Easy Ride Seat - 60, 70, 80, 90

Seat Coil Spring, New

Price: $32.00

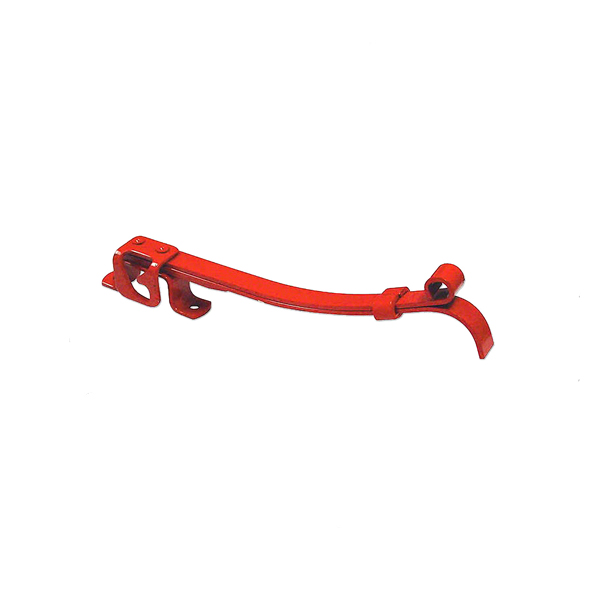

UT5366 Flat Leaf Seat Spring, RH - 50587DB

UT5366 Flat Leaf Seat Spring, RH - 50587DB
Flat Leaf Seat Spring, Right Hand

Replaces 50587DB, IHS031A

Fits INTERNATIONAL: A, AV, Super A, B, BN, 100, 130, 140, IH300, IH350, IH460 (Utility, w/ Low Style Seat), Super A

When sitting in the seat on the tractor, this is the spring on the right hand side.

Flat Leaf Seat Spring, RH

Price: $34.00

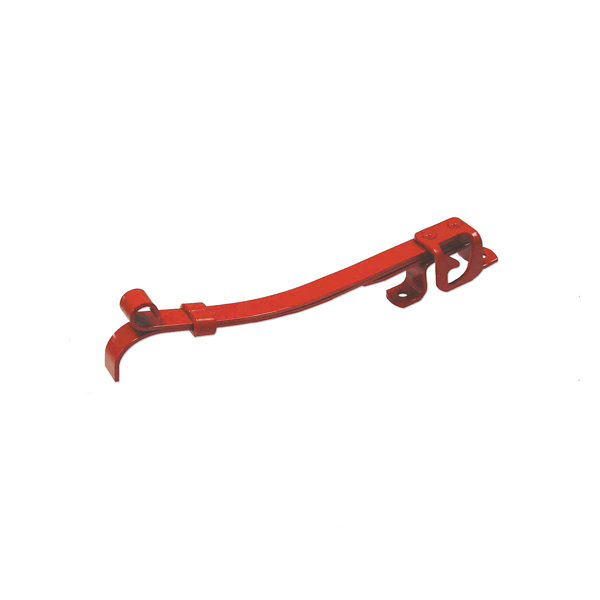

UT5367 Flat Leaf Seat Spring, LH - 50586DB

UT5367 Flat Leaf Seat Spring, LH - 50586DB
Flat Leaf Seat Spring, Left Hand

Replaces 50586DB, IHS031B

Fits INTERNATIONAL: A, AV, Super A, B, 100, 130, 140, IH 300, IH350, IH460 (Utility w/ Low-Style Seat), Super A

Flat Leaf Seat Spring, LH

Price: $34.00

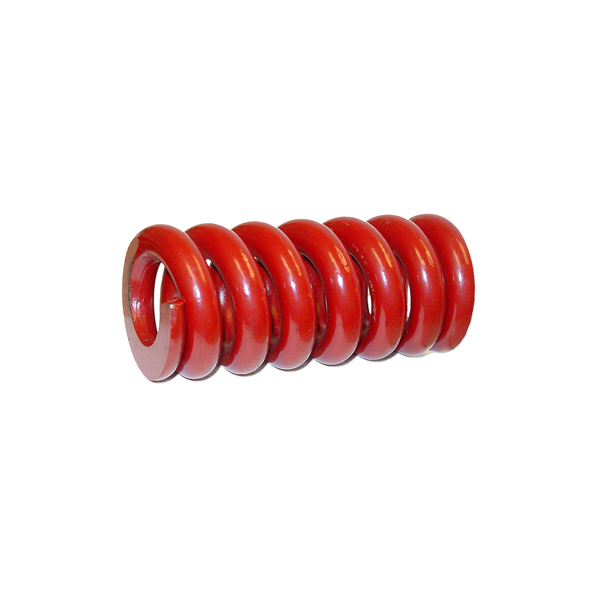

UT5368 Seat Spring Coil - 48930D

UT5368 Seat Spring Coil - 48930D
Coil Seat Spring

Replaces 48930D, O8145AB, 48930DB, IHS728

Fits CASE: - Measure Before Ordering - VA, VAC, L (1940 & After, Outer Spring), LA (Outer Spring), LAI (Outer Spring), LI (1940 & After, Outer Spring), V, VAC-11, VAC-12, VAC-13, VAC-14, VAH, VC, 500 (Outer Spring)

Fits INTERNATIONAL: I4, H ( SN 15697 & Before), HV (SN 15697 & Before), I9, ID9, M (SN 9286 & Before), MD (SN 9286 & Before), MDV (SN 9286 & Before), MV (SN 9286 & Before), O4, O6, OS4, OS6, Super W4, W4, Super W6, W6, W9, Super WD6, WD6, WD6, Super WD9, WD9, WDR9, WR9S

2-1/4" (2.25") outside diameter
4-7/8" (4.875") tall
0.535" wire diameter
55CrSi Spring Steel
Verify tractor model and measurements before ordering

Coil Seat Spring

Price: $45.00

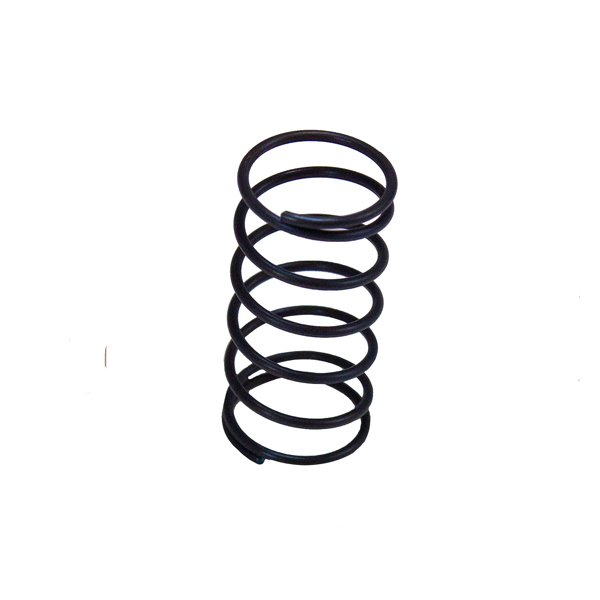

UT5400 Seat Locator Spring - 352105R1

UT5400 Seat Locator Spring - 352105R1
Seat Locator Spring

Replaces 352105R1, IHS1309

Fits INTERNATIONAL: C, Super C, Super H (SN 19234 & After), Super HV (SN 19234 & After), Super M (SN 28175 & After), Super MD (SN 28175 & After), Super MDV (SN 28175 & After), Super MTA (SN 28175 & After), Super MV (SN 28175 & After), 200, 230, 300 (Farmall Rowcrop), 350 (Farmall Rowcrop), 400, W400 (Wheatland), 450, W460 (Wheatland), 460 (Farmall Rowcrop), 560, 600, 650, 660

1.325" long
0.660" OD

Seat Locator Spring


Price: $10.00

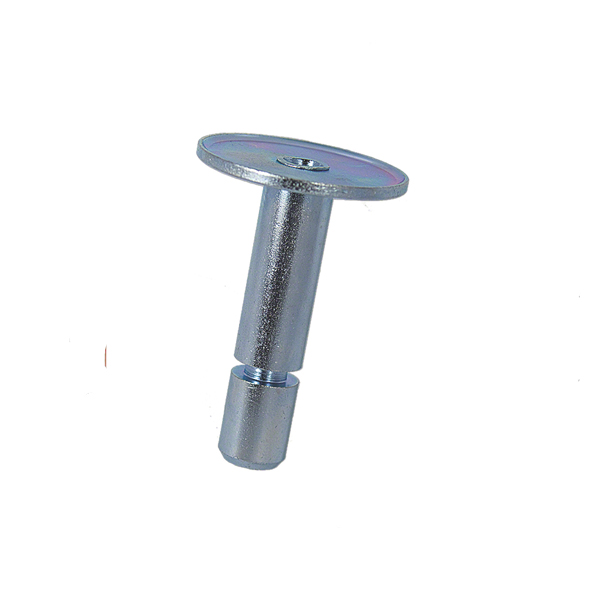

UT5401 Seat Locator Pin - 352600R91

UT5401 Seat Locator Pin - 352600R91
Seat Locator Pin

Replaces 352600R91, IHS1249

Fits INTERNATIONAL: C, Super C, Super H (SN 19234 & After), Super HV (SN 19234 & After), Super M (SN 28175 & After), Super MD (SN 28175 & After), Super MDV (SN 28175 & After), Super MTA (SN 28175 & After), Super MV (SN 28175 & After), 200, 230, 300 (Farmall Rowcrop), 350 (Farmall Rowcrop), 400, W400 (Wheatland), 450, W460 (Wheatland), 460 (Farmall Rowcrop), 560, 600, 650, 660

2.260" overall length
1.500" big end outside diameter
0.499" pin outside diameter

Seat Locator Pin

Price: $17.00

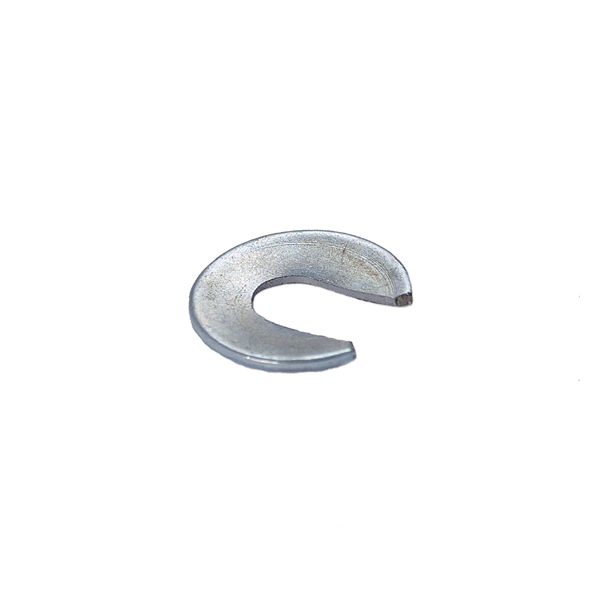

UT5402 C Clip Retainer - 351128R1

UT5402 C Clip Retainer - 351128R1
C Clip Retainer

Replaces 351128R1, 352122R1, IHS1252

Fits INTERNATIONAL: C, Super C, Super H (SN 19234 & After), Super HV (SN 19234 & After), Super M (SN 28175 & After), Super MD (SN 28175 & After), Super MDV (SN 28175 & After), Super MTA (SN 28175 & After), Super MV (SN 28175 & After), 200, 230, 300 (Farmall Rowcrop), 350 (Farmall Rowcrop), 400, W400 (Wheatland), 450, W460 (Wheatland), 460 (Farmall Rowcrop), 560, 600, 650, 660

C Clip Retainer


Price: $7.00

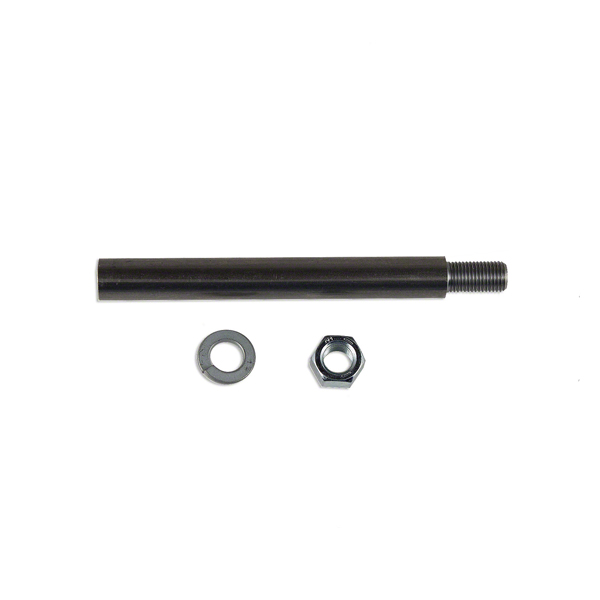

UT5403 Seat Pivot Bracket Pin - 51292DA

UT5403 Seat Pivot Bracket Pin - 51292DA
Seat Pivot Bracket Pin

Replaces 51292DA (pin), 103026 (nut), 103321 (washer), 80680 (washer), IHS1700

For Flip Back Seat

Fits INTERNATIONAL: I4, H, HV, I9, ID9, M, MD, MDV, MV, O4, O6, OS4, OS6, Super W4, W4, Super W6TA, W6, W9, WD6, Super WD9, WD9, WDR9, WR9S

Seat Pivot Bracket Pin

Price: $18.00
