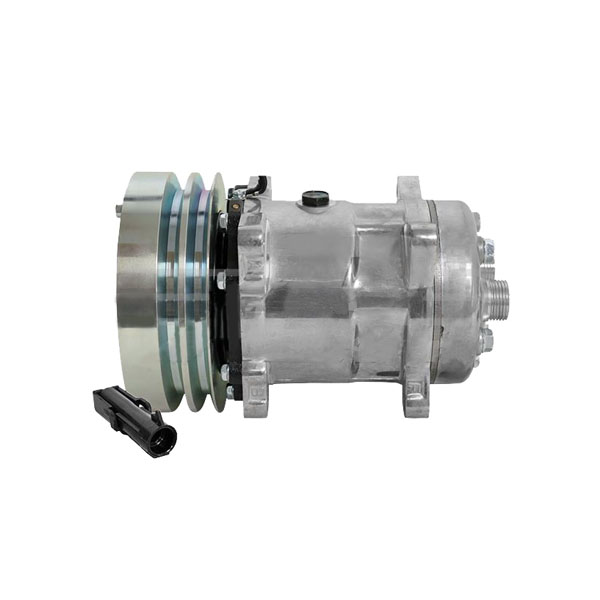

UF99063 Compressor - Replaces 86993462R

Compressor SD7H15 - 152mm, 2 Groove Clutch 12V

Replaces - 1999755C1, 1999755C2, 1999755C3, 86993462, 86993462RGV, 1977958C1, AG325732, 19997552, 47773024, 509-560 1343925C1, 1977959C1, 2025220010, 47109148, 700712705, 700713317, 97204C1, 509-5603

Fits FORD NEW HOLLAND: TJ275, TJ280, TJ325, TJ330, T9020, T7510, T7520, T7530, T7550, T9010, T9020

Fits CASE INTERNATIONAL: 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250

7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250

8910, 8920, 8930, 8940, 8950

MX80C, MX90C, MX100C, MX100, MX110, MX120, MX135, MX150, MX170, MX180, MX200, MX220, MX240(Must Identify Compressor Mounting Style and Clutch), MX270

CX50, CX60, CX70, CX80, CX90, CX100, C70, C80, C90, C100

Magnum 180, 190, 310

Specifications
COMPRESSOR TYPE SD7H15
HEAD TYPE MD
OIL TYPE Pag 100
CLUTCH DIAMETER 152mm, 5.98"
VOLTAGE 12
GROOVES 2
BELT WIDTH 1/2"
COIL POSITION N/A
OIL QUANTITY 285cc, 9.6 oz.
GAUGE LINE 39.55mm

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge
