Blower Motor

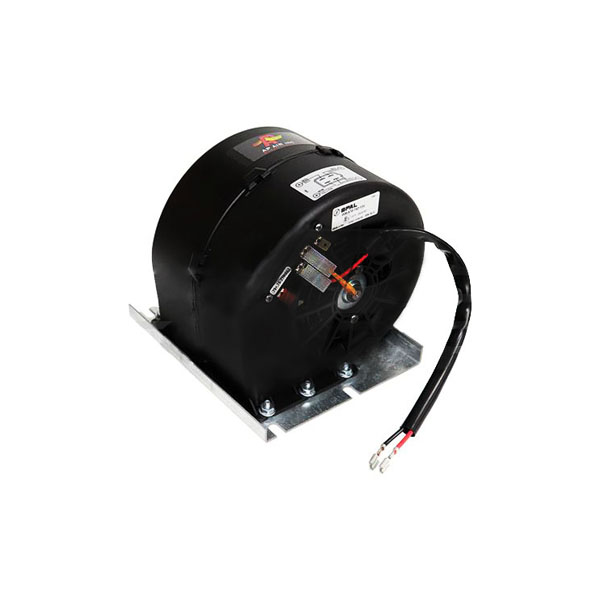

UJD999590 Blower Assembly - Replaces AL181945

UJD999590 Blower Assembly - Replaces AL181945
Blower Assembly

Replaces AL181945, AL213009, AL226799, BM4115

Fits JOHN DEERE: 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6140R, 6145R, 6150R, 6150RH, 6155R, 6155RH, 6170R, 6175R, 6190R, 6210R, 6215R, 6230R, 6250R

Specifications
TYPE Complete Assembly
OVERALL HEIGHT 5 1/2"
OVERALL WIDTH 6 1/2"
VOLTAGE 12
MOUNTING BASE LENGTH 13 7/8"
MOUNTING BASE WIDTH 5 3/8"

Price: $665.00

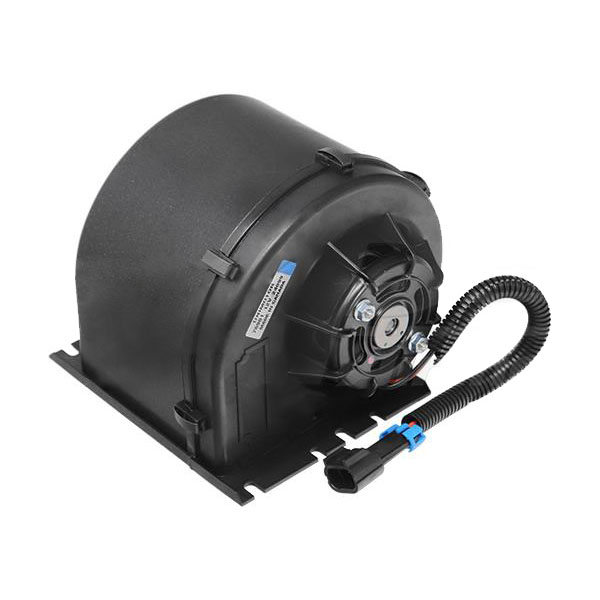

UJD999591 Blower Motor Assembly, 12V - Replaces AL200981

UJD999591 Blower Motor Assembly, 12V - Replaces AL200981
Blower Motor Assembly

Replaces AL200981, AL221364 BM3907

Fits JOHN DEERE: 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6140R, 6145R, 6150R, 6150RH, 6155R, 6170R, 6175R, 6190R, 6210R, 6215R, 6230R, 6250R

Specifications
MOUNTING BASE LENGTH 4 11/16"
MOUNTING BASE WIDTH 3"
TYPE Complete Assembly
OVERALL HEIGHT 4 1/2"
OVERALL WIDTH 5"
VOLTAGE 12

Price: $168.00

UJD999638 Blower Motor Assembly Update Kit - Replaces BM4027

UJD999638 Blower Motor Assembly Update Kit - Replaces BM4027
Blower Assembly Update Kit,12V, 30 Amp Fuse Recommended

Replaces - BM4027

Fits JOHN DEERE: 4520 (With Year-A-Round Cab)

Specifications
NUMBER OF SPEEDS 3
AIR FLOW OUTPUT 696 CFM
MOUNTING BASE LENGTH 16 7/8"
MOUNTING BASE WIDTH 4 3/16"
TYPE Blower Assembly
OVERALL HEIGHT 5 3/4"
OVERALL WIDTH 6 1/2"
VOLTAGE 12V

Price: $275.00

UF99000 Blower Motor - Replaces D5NN18527A

UF99000 Blower Motor - Replaces D5NN18527A
Heavy Duty Ball Bearing Motor, 12V 3 Speed 4 Wire Motor With 3/8" Shafts

Replaces number D5NN18527A, 251233, D2NN19N581B, 72085006, 539053R2, E2NN18527AA, 1987399C1, D2NN19N581B, AXE14069, 1048515M91, 30-3178684, 70578041, 70275685, 72162089 155483C91, UM99000, UA98261, UT90603, UW0101, UF99000, BM20057HD

Fits FORD NEW HOLLAND (Early Series - 4 Wire): 5610 (01/01/1981 to 09/30/1985), 6610 (01/01/1981 to 09/30/1985), 6710 (01/01/1981 to 09/30/1985), 7610 (01/01/1981 to 09/30/1985), 7710 (01/01/1981 to 09/30/1985)

Fits CASE INTERNATIONAL: 656, 706, 756, 766 (Fits Custom and Deluxe Cabs), 786 (Early Series - 4 Wire - Cab Serial Number 107806 and Below), 806, 856, 886 (Early Series - Cab Serial Number 107806 and Below, 966 (Fits Custom and Deluxe Cabs), 986 (Early Series - Cab Serial Number 107806 and Below), 1066 (Fits Custom and Deluxe Cabs), 1086 (Early Series - 4 Wire - Cab Serial Number 107806 and Below), 1466 (Fits Custom and Deluxe Cabs), 1468 (Fits Custom and Deluxe Cabs), 1486 (Early Series - 4 Wire - Cab Serial Number 107806 and Below), 1566, 1568, 1586 (Early Series - 4 Wire - Cab Serial Number 107806 & Below), 2656, 2706, 2756, 2806, 2856, 3388 (Early Series - 4 Wire - Cab Serial Number 107806 and Below), 3588 (Early Series - 4 Wire - Cab Serial Number 107806 and Below), 3788 (Early Series - 4 Wire - Cab Serial Number 107806 and Below), 4166, 4186, 4366, 4386, 4568, 4586, 4786, Hydro 100 (Fits Custom and Deluxe Cabs), Hydro 186 (Early Series - 4 Wire - Cab Serial Number 107806 and Below).

Fits JOHN DEERE: 4020 (With Hiniker Cab and Year-A-Round Cab), 4320 (With Hiniker Cab and Year-A-Round Cab), 4520 (With Hiniker Cab and Year-A-Round Cab), 4620 (With Hiniker Cab and Year-A-Round Cab)

Fits MASSEY FERGUSON: 285, 1085, 1105, 1135, 1155, 1500, 1505, 1800, 1805, 4800, 4840, 4880, 4900, 9240

Fits ALLIS CHALMERS: 6060 (Serial Number 10306 and Above), 6070 (Serial Number 10306 and Above), 6080 (Serial Number 10306 and Above), 7000, 7010 (Serial Number 2838 and Below),
7020 (Serial Number 3357 & Below), 7030, 7040, 7045 (Serial Number 2838 & Below),
7050, 7060 (Serial Number 7428 & Below), 7080 (Serial Number 3523 & Below), 9130, 9150, 9170, 9190

Fits WHITE: 2-85(Serial Number 265928 and Above), 2-88, 2-105 (Serial Number 276761 and Above), 2-110, 2-135, 2-150, 2-155, 2-180, 100, 120, 125, 140, 145, 160, 170, 185, 195, 6124, 6144, 6125 (Serial Number 622000 and Below), 6145 (SN 642000 and Below), 6175, 6195, 8360 Agcostar, Agcostar 8425,
60 Series, 80 Series

Replaces Bushing Style Motor with New HD Bearing Style Motor

With 48" Wire Leads
Wire Identification:
Orange = High Speed, Yellow = Medium Speed, Red = Low Speed, Black = Ground

Specifications
TYPE Double Shaft, 3 Speed
SHAFT SIZE 3/8"
SHAFT LENGTH 4 1/4"
MOTOR DIAMETER 3 1/2"
MOTOR LENGTH 4 1/8"
OVERALL LENGTH 13 1/2"
ROTATION Reversible
NUMBER OF WIRES 4
VOLTAGE 12
STUD SPAN 2 7/8"

Price: $105.00

UJD999639 Heavy Duty Blower Motor - Replaces AR62497

UJD999639 Heavy Duty Blower Motor - Replaces AR62497
Heavy Duty Blower Motor 12 Volt Single Speed 2 Wire Motor With 5/16" Shafts

Replaces AR62497, RE223623, BM20013

Fits JOHN DEERE:

4030 (Cab SN 167883 and Below), 4040 (Cab SN 167110 and Below), 4240 (Cab SN 167110 and Below), 4440 (Cab SN 167110 and Below), 4640 (Cab SN 167110 and Below), 4840 (Cab SN 167110 and Below), 4230, 4430, 4630
Early Series requires 2 per Application

4520 (5/16" Double Shaft 2 wire, with Factory Cab)

Specifications
TYPE Double Shaft, Single Speed
SHAFT SIZE 5/16"
SHAFT LENGTH 2 3/4"
MOTOR DIAMETER 3"
MOTOR LENGTH 3 3/4"
OVERALL LENGTH 10"
ROTATION Reversible
NUMBER OF WIRES 2
VOLTAGE 12
STUD SPAN 2 5/16"

Price: $85.00

UJD99001 Blower Motor - Replaces AR62497

UJD99001 Blower Motor - Replaces AR62497
Blower Motor - HD Bearing Style with OE Wire Connectors 12V Single Speed 2 Wire with 5/16" Shafts

Replaces number AR62497, RE223623, BM20013HD

5/16" Double Shaft 2 Wire.
Early Series - Requires 2 per Application

Fits JOHN DEERE:

4030(Cab SN 167883 and Below), 4040 (Cab SN 167110 and Below), 4240 (Cab SN 167110 and Below), 4440 (Cab SN 167110 and Below), 4640 (Cab SN 167110 and Below), 4840, (Cab SN 167110 and Below), 4230, 4430, 4630
Early Series - Requires 2 per Application

4520 (With Factory Cab)

OE Wire Connectors
Sealed Motor

Specifications
TYPE Double Shaft, Single Speed
SHAFT SIZE 5/16"
SHAFT LENGTH 2 3/4"
MOTOR DIAMETER 3"
MOTOR LENGTH 3 3/4"
OVERALL LENGTH 10"
ROTATION Reversible
NUMBER OF WIRES 2
VOLTAGE 12
STUD SPAN 2 5/16"

Price: $90.00

UJD999657 Heavy Duty Motor Repair Kit - Replaces AR62497

UJD999657 Heavy Duty Motor Repair Kit - Replaces AR62497
Heavy Duty Blower Motor Repair Kit with OE Wire Connectors, Wheels, and Mounting Gaskets, 12V Single Speed 2 Wire with 5/16" Shafts

Replaces RE223623, AR62497, BM20013HDK

Fits JOHN DEERE:

4030(Cab SN 167883 and Below), 4040 (Cab SN 167110 and Below), 4240 (Cab SN 167110 and Below), 4440 (Cab SN 167110 and Below), 4640 (Cab SN 167110 and Below), 4840, (Cab SN 167110 and Below), 4230, 4430, 4630
Early Series - Requires 2 per Application

Item Info
OE Wire Connectors, Wheels, and Mounting Gaskets
Sealed Motor

Specifications
TYPE Double Shaft, Single Speed
SHAFT SIZE 5/16"
SHAFT LENGTH 2 3/4"
MOTOR DIAMETER 3"
MOTOR LENGTH 3 3/4"
ROTATION Reversible
NUMBER OF WIRES 2
VOLTAGE 12
STUD SPAN 2 5/16"

Price: $115.00

UJD999640 Blower Motor - Replaces AR45856

UJD999640 Blower Motor - Replaces AR45856
12 Volt Single Speed 2 Wire Motor with 5/16" Shaft

Replaces AR45856, BM120035

Fits JOHN DEERE: 4520
Vented Motor

Specifications
SHAFT LENGTH 4 1/4"
MOTOR LENGTH 4 1/4"
NUMBER OF WIRES 2
STUD SPAN 2 7/8"
TYPE Single Shaft, Single Speed
OVERALL LENGTH 9 1/4"
VOLTAGE 12
SHAFT SIZE 5/16"
OVERALL DIAMETER 3 3/8"
ROTATION Reversible

Price: $127.00

UJD999642 Blower Motor - Replaces LVA17155

UJD999642 Blower Motor - Replaces LVA17155

 Blower Assembly

Replaces LVA17155, LVA17699, BM39074

Fits JOHN DEERE: 4320, 4720

Specifications
TYPE Complete Assembly
NUMBER OF WIRES 4
VOLTAGE 12
NUMBER OF SPEEDS 3
AIR FLOW OUTPUT 289 CFM

Price: $190.00

UJD999643 Blower Motor - Replace MIU10029

UJD999643 Blower Motor - Replace MIU10029
Blower Motor Assembly - 12 Volt, 3 Speed with Resistor

Replace MIU10029, BM3901

Fits JOHN DEERE: 4320, 4720

Specifications
TYPE Complete Assembly
OVERALL HEIGHT 5 1/2"
OVERALL WIDTH 6 1/2"
NUMBER OF WIRES 4
VOLTAGE 12
NUMBER OF SPEEDS 3
AIR FLOW OUTPUT 289 CFM
CURRENT INPUT 19.0
MOUNTING BASE LENGTH 5 1/4"
MOUNTING BASE WIDTH 5 3/8"

Price: $170.00

UJD999702 Blower Motor Update Kit - Replaces AR82006

UJD999702 Blower Motor Update Kit - Replaces AR82006
Blower Motor Update Kit, 30 Amp Fuse Recommended
High Efficiency Blower Assembly Replaces Original Plastic Assembly

Replaces AR82006, RE10998, BM4037

Fits JOHN DEERE: 2940
2350, 2550, 2750, 2950
(4030, 4230, 4430, 4630 - Late Series - With Single Blower Motor High Efficiency Blower Assembly)
(4040, 4240, 4440, 4640, 4840 - Late Series - With Single Blower Motor High Efficiency Blower)
4055, 4255, 4455, 4555, 4755, 4955
4050, 4250, 4450, 4650, 4850

Replaces Original Assembly, 30 Amp Fuse Recommended

Specifications
TYPE Complete Assembly
OVERALL HEIGHT 5 3/4"
OVERALL WIDTH 7"
VOLTAGE 12
MOUNTING BASE LENGTH 21"
MOUNTING BASE WIDTH 6 5/8"

Price: $275.00

UJD999703 Heavy Duty Motor Repair Kit - Replaces RE10998

UJD999703 Heavy Duty Motor Repair Kit - Replaces RE10998
Heavy Duty Blower Motor Repair Kit with OE Wire Connectors, O-Rings, and Steel Wheels, 12 Volt Single Speed 2 Wire Motor With 3/8" Shafts

Replaces RE10998, AR82005, AT74427, BM20052HDK

Fits JOHN DEERE: 2940
2350, 2550, 2750, 2950
(4230, 4430, 4630 - Late Series - Requires 1 Per Application with Replacement Sound Guard Body or Replacement Inner Roof With Single Blower Motor)
(4040, 4240, 4440, 4640, 4840 - Late Series - Requires 1 Per Application (Cab SN 167111 and Above with Single Blower Motor, 3/8" Double Shaft 2 Wire Motor)_
4055, 4255, 4555, 4755, 4955
4050, 4250, 4450, 4650, 4850

Includes Steel Wheels, Wire Connectors, Mounting Gasket, and Mounting O-Rings
Replaces Bushing Style Motor With New HD Bearing Style Motor

Specifications
TYPE Double Shaft, Single Speed
SHAFT SIZE 3/8"
SHAFT LENGTH 5"
MOTOR DIAMETER 3 1/4"
MOTOR LENGTH 4 1/8"
OVERALL LENGTH 14 3/4"
ROTATION Reversible
NUMBER OF WIRES 2
VOLTAGE 12
STUD SPAN 2 1/2"

Price: $155.00

UJD999704 Heavy Duty Motor - Replaces RE25160

UJD999704 Heavy Duty Motor - Replaces RE25160
Heavy Duty Blower Motor - HD Bearing Style With OE Wire Connector and O-Rings, 12 Volt Single Speed 2 Wire Motor With 3/8" Shafts

Replaces RE25160, AR82005, RE251028, AN276546, RE10999, RE25160, AT74427, BM20052HD

Fits JOHN DEERE: 2940,
2350, 2550, 2750, 2950,
4030 (Cab SN 167884 and Above with Single Blower Motor),
(4230, 4430, 4630 (with Replacement Sound Guard Body or Replacement Inner Roof With Single Blower Motor))
(4040, 4240, 4440, 4640, 4840 (Cab SN 167111 and Above))
4055, 4255, 4455, 4555, 4755, 4955
4050, 4250, 4450, 4650, 4850

With OE Wire Connectors and Mounting O-Rings
Replaces Bushing Style Motor With New HD Bearing Style Motor

Specifications
TYPE Double Shaft, Single Speed
SHAFT SIZE 3/8"
SHAFT LENGTH 5"
MOTOR DIAMETER 3 1/4"
MOTOR LENGTH 4 1/8"
OVERALL LENGTH 14 3/4"
ROTATION Reversible
NUMBER OF WIRES 2
VOLTAGE 12
STUD SPAN 2 1/2"

Price: $115.00

UJD999746 Blower Motor - Evaporator, Heater - Replaces RE67645

UJD999746 Blower Motor - Evaporator, Heater - Replaces RE67645
12 Volt Single Speed 2 Wire With 5/16" Shaft, Flange Mount

Replaces RE67645, RE57571, RE62653, BM11259

Fits JOHN DEERE: 8100, 8200, 8300, 8400

Evaporator, Heater Motor

Specifications
SHAFT LENGTH 1 5/8"
MOTOR LENGTH 4 1/4"
NUMBER OF WIRES 2
STUD SPAN 2 5/16
TYPE Single Shaft, Single Speed
OVERALL LENGTH 6 1/2"
VOLTAGE 12
SHAFT SIZE 5/16"
OVERALL DIAMETER 3"
ROTATION CCW

Price: $185.00

UJD999762 Blower Motor, with Wheel - Replaces RE162771

UJD999762 Blower Motor, with Wheel - Replaces RE162771
12 Volt Single Speed 2 Wire 5/16" Shaft, with Wheel

Replaces RE162771, RE208336, RE300527, AT400506, AT456707, BM112603

Fits JOHN DEERE: 8110, 8210, 8310, 8410,
8120, 8220, 8320, 8420, 8520,
8130, 8230, 8330, 8430, 8530

Specifications
TYPE Single Shaft, Single Speed
SHAFT SIZE 5/16"
SHAFT LENGTH 1 5/8"
MOTOR DIAMETER 3"
MOTOR LENGTH 4 1/4"
WHEEL DIAMETER 7"
WHEEL LENGTH 3"
ROTATION Counter Clockwise
NUMBER OF WIRES 2
VOLTAGE 12
STUD SPAN 2 5/16
FLANGE DIAMETER 9"

Price: $210.00

UJD999763 Blower Motor - Replaces RE67645

UJD999763 Blower Motor - Replaces RE67645
12 Volt Single Speed 2 Wire With 5/16" Shaft, Without Flange Mount Plate

Replaces RE67645, RE57571, RE62653, BM112591

Fits JOHN DEERE: 8110, 8210, 8310, 8410, 8100, 8200, 8300, 8400

Specifications
SHAFT LENGTH 1 5/8"
MOTOR LENGTH 4 1/4"
NUMBER OF WIRES 2
STUD SPAN 2 5/16
TYPE Single Shaft, Single Speed
OVERALL LENGTH 6 1/2"
VOLTAGE 12
SHAFT SIZE 5/16"
OVERALL DIAMETER 3"
ROTATION CCW

Price: $135.00

UJD999764 Blower Motor, with wheel - Replaces RE159446

UJD999764 Blower Motor, with wheel - Replaces RE159446
12 Volt Single Speed 2 Wire 5/16" Shaft, With Wheel

Replaces RE159446, RE300524, RE208337, BM112601

Fits JOHN DEERE: 8110, 8210, 8310, 8410, 8120, 8220, 8320, 8420, 8520

Specifications
SHAFT LENGTH 1 5/8"
MOTOR LENGTH 4"
NUMBER OF WIRES 2
STUD SPAN 2 5/16"
TYPE Single Shaft, Single Speed
OVERALL LENGTH 8 1/4"
VOLTAGE 12
SHAFT SIZE 5/16"
OVERALL DIAMETER 3", 9" Flange
ROTATION Counter Clockwise

Price: $230.00

UJD999765 Heavy Duty Blower Motor - Replaces RE61419

UJD999765 Heavy Duty Blower Motor - Replaces RE61419
Heavy Duty 12 Volt Single Speed 2 Wire With 5/16" Shaft and OE Wire Connector

Replaces RE61419, BM11256HD

Fits JOHN DEERE: 8110, 8210, 8310, 8410,
8100, 8200, 8300, 8400

Specifications
TYPE Single Shaft, Single Speed
SHAFT SIZE 5/16"
SHAFT LENGTH 1 1/2"
MOTOR DIAMETER 3"
MOTOR LENGTH 4 1/4"
OVERALL LENGTH 6 3/8"
ROTATION Reversible
NUMBER OF WIRES 2
VOLTAGE 12
STUD SPAN 2 1/2"

Price: $135.00

UJD999794 Blower Motor Update Kit - Replaces AR74019

UJD999794 Blower Motor Update Kit - Replaces AR74019
30, 40 Series Blower Motor Update Kit

Replaces AR74019, AR68973, BM4036

Fits JOHN DEERE:
4520 (With Double Blower Motors)
(4030, 4230, 4430, 4630 (Early Series - With Double Blower Motors))
(4040, 4240, 4440, 4640, 4840 (Early Series, With Double Blower Motors

Assembly Replaces Both Original Motors on Applications Using BM20013 Blower Motor
7520-4WD

Kit Includes 2 Assemblies to Replace Both OE Plastic Assemblies for Tractors with Double Blower Motors

Specifications
TYPE Single Speed
OVERALL HEIGHT 4 3/4"
OVERALL WIDTH 5 3/4"
VOLTAGE 12
MOUNTING BASE LENGTH 14 3/4"
MOUNTING BASE WIDTH 5"

Price: $375.00

UJD999821 Blower Motor, Pressurizer - Replaces RE237675

UJD999821 Blower Motor, Pressurizer - Replaces RE237675
Blower Motor, Pressurizer

Replaces RE237675, BM3895

Fits JOHN DEERE: 7200(Serial Number 005206 and Above),
7400(Serial Number 008113 and Above),
7600(Serial Number 008792 and Above),
7700(Serial Number 011656 and Above),
7800(Serial Number 018024 and Above),
7210, 7410, 7510, 7610, 7710, 7810,
7720, 7820, 7920,
8100T, 8200T, 8300T, 8400T,
8120, 8220, 8320, 8420, 8520,
8130, 8230, 8330, 8430, 8530

Specifications
NUMBER OF WIRES 2
MOUNTING BASE LENGTH 4.95"
MOUNTING BASE WIDTH 4.7"
TYPE Complete Assembly
OVERALL HEIGHT 7"
OVERALL WIDTH 5.6"
VOLTAGE 12

Price: $205.00

UJD999822 Blower Motor, Pressurizer - Replaces RE51265

UJD999822 Blower Motor, Pressurizer - Replaces RE51265
Blower Motor Assembly, Pressurizer Motor

Replaces RE51265, BM3892

Fits JOHN DEERE: 7200(Serial Number 005205 and Below),
7400(Serial Number 008112 and Below),
7600(Serial Number 008791 and Below),
7700(Serial Number 011655 and Below),
7800(Serial Number 018023 and Below)

Specifications
TYPE Complete Assembly
OVERALL LENGTH 8 1/4"
OVERALL HEIGHT 8 1/4"
OVERALL WIDTH 4 1/4"
NUMBER OF WIRES 2
VOLTAGE 12
OUTLET DIAMETER 2 3/4"
INLET DIAMETER 3 1/2"

Price: $235.00

UJD999977 Blower Motor Assembly - Replaces AL110881

UJD999977 Blower Motor Assembly - Replaces AL110881
Blower Motor OE Style

Replaces AL215704, AL214942, AL80700, AL173961, AL110881, AL229249, BM39153

Fits JOHN DEERE:
5220, 5320, 5420, 5520, 5200, 5300, 5400, 5500, 5210, 5310, 5410, 5510,
5225, 5325, 5425, 5525, 5625,
5055E, 5065E, 5075E, 5085E, 5100E, 5101E,
May Require 2 per Application
5065M, 5095M, 5100M, 5100MH
May Require 2 per Application

6200, 6300, 6400 ,
6110, 6210, 6310, 6410, 6510,
6100D, 6105D, 6110D, 6115D, 6125D, 6130D, 6140D,
6110J, 6125J, 6140J, 6145J, 6165J, 6180J,
6105M, 6110M, 6115M, 6120M, 6125M, 6130M, 6140M, 6150M, 6155M, 6170M, 6175M
6215, 6415, 6615, 6715,
6120, 6220, 6320, 6420 (With Sound Guard 2 Cab),
6230, 6330, 6430,
7210, 7410, 7510, 7610, 7710, 7810,
7200, 7400, 7600, 7700, 7800,
7220, 7320, 7420, 7520-MFWD
May Require 2 per Application

Specifications
TYPE Blower Assembly
OVERALL HEIGHT 6"
OVERALL WIDTH 6 7/8"
NUMBER OF WIRES 2
VOLTAGE 12
NUMBER OF SPEEDS Single
MOUNTING BASE LENGTH 6 7/8"
MOUNTING BASE WIDTH 5 3/4"
Blower Motor OE Style

Specifications
TYPE Blower Assembly


OVERALL HEIGHT 6"
OVERALL WIDTH 6 7/8"
NUMBER OF WIRES 2
VOLTAGE 12
NUMBER OF SPEEDS Single
MOUNTING BASE LENGTH 6 7/8"
MOUNTING BASE WIDTH 5 3/4"



Price: $135.00

UJD999978 Blower Motor Update Kit - Replaces AL110881

UJD999978 Blower Motor Update Kit - Replaces AL110881
Heavy Duty Spal Blower Motor Update Kit

Includes Heavy Duty Bearings and Increased Air Flow from Original OE John Deere Motor

Replaces AL110881, AL173961, AL110881, AL214942, AL75105, AL80700, AL215704, AL229249, BM3915

Fits JOHN DEERE:
5220, 5320, 5420, 5520, 5200, 5300, 5400, 5500, 5210, 5310, 5410, 5510,
5225, 5325, 5425, 5525, 5625,
5055E, 5065E, 5075E, 5085E, 5100E, 5101E
May Require 2 per Application
5065M, 5095M, 5100M, 5100MH
May Require 2 per Application

6200, 6300, 6400,
6110, 6210, 6310, 6410, 6510,
6100D, 6105D, 6110D, 6115D, 6125D, 6130D, 6140D,
6110J, 6125J, 6140J, 6145J, 6165J, 6180J,
6105M, 6110M, 6115M, 6120M, 6125M, 6130M, 6140M, 6150M, 6155M, 6170M, 6175M
6215, 6415, 6615, 6715,
6120, 6220, 6320, 6420 (With Sound Guard 2 Cab),
6230, 6330, 6430 (With Sound Guard 2 Cab),
7200, 7400, 7600, 7700, 7800,
7210, 7410, 7510, 7610, 7710, 7810,
7220, 7320, 7420, 7520-MFWD
May Require 2 per Application

Specifications
TYPE Blower Assembly
OVERALL HEIGHT 5 7/8"
OVERALL WIDTH 6 3/4"
NUMBER OF WIRES 2
VOLTAGE 12
NUMBER OF SPEEDS Single
MOUNTING BASE LENGTH 6 7/8"
MOUNTING BASE WIDTH 5 3/4"

Price: $145.00

UJD99000 Blower Motor - Replaces AR49962

UJD99000 Blower Motor - Replaces AR49962
12 Volt Single Speed 2 Wire Motor With 5/16" Shafts

Replaces number AR49962, RD-5-10905-0P, 20562P, BSM304161, BSM205620, 73R0442, HA15200, BM11225

Fits JOHN DEERE: 4000, 4020, 4320, 4520, 4620, 5020, 6030, 7020, 7520

Vented Motor

Specifications
SHAFT LENGTH 1 3/4"
MOTOR LENGTH 4 1/4"
NUMBER OF WIRES 2
STUD SPAN 2 5/16"
TYPE Single Shaft, Single Speed
OVERALL LENGTH 6 3/8"
VOLTAGE 12
SHAFT SIZE 5/16"
OVERALL DIAMETER 3"
ROTATION Clockwise

Price: $120.00

UJD99006 Heavy Duty Blower Motor - Replaces AH128925

UJD99006 Heavy Duty Blower Motor - Replaces AH128925
Heavy Duty 12 Volt Single Speed 2 Wire With 5/16" Shaft

Replaces number AH128925, AH167731, BM11254HD

Fits JOHN DEERE: Combine: 7460, 9400, 9410, 9450, 9500, 9510, 9510SH, 9540, 9550, 9550SH
9560, 9560SH, 9560STS, 9580, 9600, 9610, 9640, 9650CTS, 9660, 9660CTS
9660STS, 9680, 9750, 9760STS, 9860STS, 9880 STS Euro, 9986, 9996, C670

With Heavy Duty Brushes and OE Wire Connector

Specifications
TYPE Single Shaft, Single Speed
SHAFT SIZE 5/16" Double Flat
SHAFT LENGTH 1 5/16"
MOTOR DIAMETER 3"
MOTOR LENGTH 4 1/2"
OVERALL LENGTH 6 3/8"
ROTATION CW
NUMBER OF WIRES 2
VOLTAGE 12
STUD SPAN 2 1/2"

Price: $145.00

UJD99010 Blower Assembly - Replaces AL39043

UJD99010 Blower Assembly - Replaces AL39043
Blower Assembly

Replaces number AL39043, BM3914

Fits JOHN DEERE: 2350, 2550, 2750, 2950
May Require 2 per Application

Single Speed 12 Volt, 2 Wire
Includes mounting plate and resistor.

Specifications
MOUNTING BASE LENGTH 6 7/8"
MOUNTING BASE WIDTH 5 3/4"
TYPE Blower Assembly
OVERALL HEIGHT 5 7/8"
OVERALL WIDTH 6 3/4"
VOLTAGE 12

Price: $140.00

Walt's Tractor Parts | John Deere Tractor Parts -- | John Deere Cab Parts - | Air Conditioning Parts |  Blower Motor

Recently Viewed Parts


Customer Services

Website Information

How to get in touch with us

Call us on
888-414-4043888-414-4043

Waltstractors.com
2634 Audrain Road 381, Mexico, Missouri, 65265

Buy now with PayPal

© 2014 - 2024 Waltstractors.com
