Compressor

UM999950 Compressor - Replaces 4281803M1

UM999950 Compressor - Replaces 4281803M1
Compressor, SD7H15, 120mm, 6 Groove Clutch 12V

12 Volt One Wire Connector, Direct Mount, Keyed Shaft

Replaces 4281803M1, 509-63963

6 Groove

Fits MASSEY FERGUSON: 5445 (Tier 3 Model Serial Number B111061 and Above), 5450, 5465, 5475, 6465, 6475, 6480, 6485, 6490, 6495

Specifications
COMPRESSOR TYPE SD7H15
HEAD TYPE QC
OIL TYPE R134 Pag 100 Oil
CLUTCH DIAMETER 120mm, 4.75"
VOLTAGE 12
GROOVES 6
BELT WIDTH Serpentine
GAUGE LINE 48.00C, 58.00F

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge


Price: $295.00

UM999951 Compressor - Replaces 4281803M1

UM999951 Compressor - Replaces 4281803M1
Compressor, SD7H15, 120mm, 6 Groove Clutch 12V

12 Volt One Wire Connector w/ Diode, Splined Shaft

Replaces 4281803M1, 509-6396

6 Groove

Fits MASSEY FERGUSON: 5445 (Tier 3 Models Serial Number B111061 and Above)

5450, 5465, 5475

6465, 6475, 6480, 6485, 6490, 6495

Specifications
COMPRESSOR TYPE SD7H15
HEAD TYPE QC
OIL TYPE R134 Pag 100 Oil
CLUTCH DIAMETER 120 mm, 4.75"
VOLTAGE 12
GROOVES 6
BELT WIDTH Serpentine
GAUGE LINE 48.00C, 58.00F

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge


Price: $405.00

UM999952 Compressor - Replaces 3789035M1

UM999952 Compressor - Replaces 3789035M1
Compressor, Sanden SD7H15, 112mm, 4 Groove Clutch 12V

Replaces 3789035M1, 4789035M1, 509-639

4 GROOVE

Fits MASSEY FERGUSON: 5460 (Tier 3), 5470 (Tier 3), 5480

6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499

4 Groove

Specifications
COMPRESSOR TYPE SD7H15
HEAD TYPE QC
OIL TYPE R134 Pag 100 Oil
CLUTCH DIAMETER 112mm, 4.409"
VOLTAGE 12
GROOVES 4
BELT WIDTH Serpentine
GAUGE LINE 49.65C, 56.46F

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $435.00

UM99051 Compressor - Replaces 3712528M2

UM99051 Compressor - Replaces 3712528M2
Sanden Compressor SD7H15 - 140mm, 2 Groove Clutch 12V, With Dust Cover

Replaces 3712528M2, 3782613M2, 3386861M1, 1077956M91, 1688310M2, UM99051, UW2100, 509-575

Fits MASSEY FERGUSON:365, 375, 382, 383, 390, 390T, 393, 396, 398, 399, 4225, 4233, 4235, 4240, 4243, 4245, 4253, 4255, 4260, 4263, 4265, 4270
4325, 4335, 4345, 4355, 4360, 4365, 4370
5425, 5435, 5455, 5460,
5445, 5465 (2 Groove),
5470 (Also Fits SA Model Tractors),
5475 (SA Models),
6120, 6130, 6140, 6150, 6160, 6170, 6180, 6190,
6235, 6245, 6255, 6260, 6265, 6270, 6280, 6290

Fits WHITE: 6410, 6510, 6710, 6810, 8310, 8410, 8510, 8610, 8710, 8810

Specifications
COMPRESSOR TYPE SD7H15HD
HEAD TYPE QC
OIL TYPE R134 Pag Oil
CLUTCH DIAMETER 140mm, 5.51"
VOLTAGE 12
GROOVES 2
BELT WIDTH 1/2"
COIL POSITION N/A
OIL QUANTITY 190cc, 6.42oz.
GAUGE LINE 39.55mm

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $365.00

UM999986 Compressor - Replaces 3712528M2

UM999986 Compressor - Replaces 3712528M2
Compressor, SD7H15, 140mm, 2 Groove 12V

Replaces 3386861M1, 3712528M2, 3782613M2, 1077956M91, UM999986, UW2101C, 509-5753

Fits MASSEY FERGUSON: 375, 383, 390 Serial Number C40534 & Below, 390T, 393, 396, 398, 399, 4225, 4233, 4235, 4240, 4243, 4245, 4253
4255, 4260, 4263, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4365, 4370, 5425, 5435, 5455, 5460
5445, 5465 (2 Groove), 5470 (Also Fits SA Model Tractors), 5475 (SA Model), 6140, 6150, 6170, 6180, 6190
6235, 6245, 6255, 6260, 6265, 6270, 6280, 6290

Fits WHITE: 6410, 6510, 6710, 6810, 8310, 8410, 8510, 8610, 8710, 8810

Specifications
COMPRESSOR TYPE SD7H15
HEAD TYPE QC
OIL TYPE Pag Oil
CLUTCH DIAMETER 140mm, 5.51"
VOLTAGE 12
GROOVES 2
BELT WIDTH 1/2"
COIL POSITION N/A
GAUGE LINE 39.55mm

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $295.00

UM7000 Compressor - Replaces 3763384M91

UM7000 Compressor - Replaces 3763384M91
Sanden Compressor SD7H15 - 132mm, 2 Groove Clutch 12V

Replaces number 3763384M91, 1688310M1, 509-5751

Original Sanden SD7H15, 5 1/4" 2 Groove Clutch, GM Pad Mount, 12V

Fits MASSEY FERGUSON: 383, 390, 390T, 393, 396, 398, 399

Specifications
COMPRESSOR TYPE SD7H15
HEAD TYPE QC
OIL TYPE R134 Pag Oil
CLUTCH DIAMETER 132mm, 5.19"
VOLTAGE 12
GROOVES 2
BELT WIDTH 1/2"
COIL POSITION N/A
GAUGE LINE 39.55mm

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $450.00

UM7003 Compressor - Replaces 533713M91

UM7003 Compressor - Replaces 533713M91
12 Volt 2 o’clock 5.58" CL Superheat Compressor, Includes Superheat Switch

Replaces UM7003, UA98215, 70256782, 533713M91, 70272002, 70272005, 70269745, 70262126, 500-012

Fits ALLIS CHALMERS: 200, 210, 220, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080

Fits MASSEY FERGUSON: 1080 (Must Identify Clutch Diameter), 1085 (Must Identify Clutch Diameter), 1100 (Must Identify Clutch Diameter), 1105 (Must Identify Clutch Diameter), 1130 (Must Identify Clutch Diameter), 1135 (Must Identify Clutch Diameter), 1150 (Must Identify Clutch Diameter), 1155 (Must Identify Clutch Diameter), 1805 (Must Identify Clutch Diameter), 2640 (Must Identify Clutch Diameter), 2675 (Must Identify Clutch Diameter), 2705 (Must Identify Clutch Diameter), 2745 (Must Identify Clutch Diameter), 2775 (Must Identify Clutch Diameter), 2805 (Must Identify Clutch Diameter), 3505 (Must Identify Clutch Diameter), 3525 (Must Identify Clutch Diameter), 3545 (Must Identify Clutch Diameter), 4800 (Must Identify Clutch Diameter), 4840 (Must Identify Clutch Diameter), 4880 (Must Identify Clutch Diameter), 4900 (Must Identify Clutch Diameter)

New A6, New Clutch, Mineral Oil

Specifications
HEAD TYPE Superheat
OIL TYPE R12 Mineral Oil
CLUTCH DIAMETER 5.58"
GROOVES 1
BELT WIDTH 1/2"
COIL POSITION 2 o’clock
MOUNTING HOLES Metric Thread
OIL QUANTITY 10-12 oz.
VOLTAGE 12
COMPRESSOR TYPE A-6

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $550.00

UM7004 Compressor - Replaces 586126M91

UM7004 Compressor - Replaces 586126M91

 Heavy Duty A6 Delco Replacement Compressor with Dust Protection

Replaces number UM7004, UA98216, 70256782, 70272002, 70269745, 70262126, SE501456, SE501457, TY6665, TY6770, 586126M91, 533713M91, SE503046, SE503047, 500-075

Fits JOHN DEERE: 2355, 2555, 2755, 2855N, 2955, 3155,
2350, 2550, 2750, 2950
2940
4520
4030, 4230, 4430, 4630
4040, 4240, 4440, 4640, 4840
7520-4WD

Fits ALLIS CHALMERS: 200, 210, 220, 7000, 7010, 7020, 7040, 7050, 7060, 7080

Fits MASSEY FERGUSON: 1080 (Must Identify Clutch Diameter), 1085 (Must Identify Clutch Diameter), 1100 (Must Identify Clutch Diameter), 1105 (Must Identify Clutch Diameter), 1130 (Must Identify Clutch Diameter), 1135 (Must Identify Clutch Diameter), 1150 (Must Identify Clutch Diameter), 1155 (Must Identify Clutch Diameter), 1805 (Must Identify Clutch Diameter), 2640 (Must Identify Clutch Diameter), 2675 (Must Identify Clutch Diameter), 2705 (Must Identify Clutch Diameter), 2745 (Must Identify Clutch Diameter), 2775 (Must Identify Clutch Diameter), 2805 (Must Identify Clutch Diameter), 3505 (Must Identify Clutch Diameter), 3525 (Must Identify Clutch Diameter), 3545 (Must Identify Clutch Diameter), 4800 (Must Identify Clutch Diameter), 4840 (Must Identify Clutch Diameter), 4880 (Must Identify Clutch Diameter), 4900 (Must Identify Clutch Diameter)

Uses Original Belt & Hoses, Can be Used for 10 O’Clock and 2 O’Clock Coil Positions, Includes HD Dust Protection and Metric Bolt Kit

Replaces A6 With 10PA20 HD 10 Cylinder Denso, Uses Less Power for Greater Efficiency

Specifications
COMPRESR TYPE 10PA20HD
HEAD TYPE Superheat
OIL TYPE Pag 46
CLUTCH Diameter 5.58"
VOLTAGE 12
GROOVES 1
BELT WIDTH 1/2"
MOUNTING Holes Metric Thread
OIL QUANTITY 7.4 oz

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $500.00

UM7005 Compressor - Replaces 1904014M91

UM7005 Compressor - Replaces 1904014M91

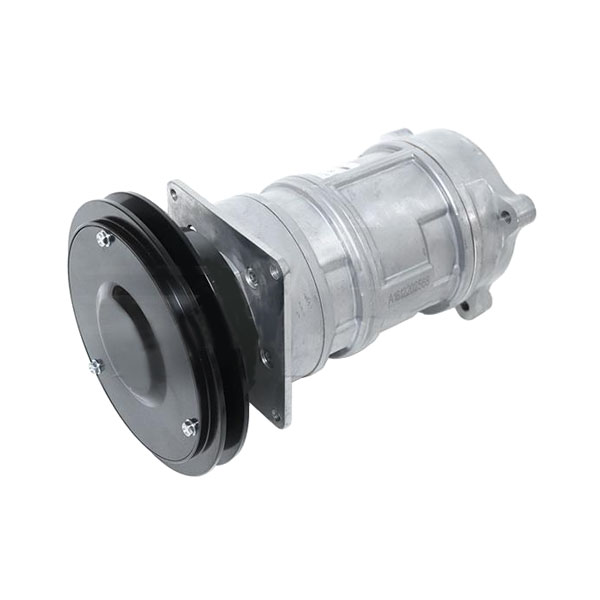

Heavy Duty A6 Delco Replacement - 12 Volt with 7" Clutch and Dust Protection

Replaces 4343180, 04343180, 1904014M91, 771810M91, UM7005, UDZ90703, 500-080

Must Identify Clutch Diameter

Fits DUETZ: DX8.30

Fits MASSEY FERGUSON: 1080, 1085, 1100, 1105, 1130, 1135, 1150, 1155, 1805, 2640, 2675, 2705
2745, 2775, 2805, 3505, 3525, 3545, 4800, 4840, 4880, 4900

Replaces A6 w/10PA20 HD 10 Cylinder Denso. Uses Less Power for Greater Efficiency
Uses Original Belt and Hoses. Can be Used for 10:00 and 2:00 Coil Positions. Includes HD Dust Protection and Metric Bolt Kit

Specifications
COMPRESSOR TYPE 10PA20HD
HEAD TYPE Hi Press. Head
OIL TYPE Pag 46v
CLUTCH DIAMETER 6.77"
VOLTAGE 12
GROOVES 1
BELT WIDTH .50, 1/2"
COIL POSITION 10 and 2 O'Clock
MOUNTING HOLES Metric Thread
OIL QUANTITY 7 oz

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $420.00

Walt's Tractor Parts | Ferguson Tractor Parts / Massey Ferguson Tractor Parts | MF Cab Parts | Massey Ferguson Air Conditioning Parts |  Compressor

Recently Viewed Parts


Customer Services

Website Information

How to get in touch with us

Call us on
888-414-4043888-414-4043

Waltstractors.com
2634 Audrain Road 381, Mexico, Missouri, 65265

Buy now with PayPal

© 2014 - 2025 Waltstractors.com
