Loader Valve -

UA999951 Single Spool Cross Loader Valve - Replaces SBA-2

UA999951 Single Spool Cross Loader Valve - Replaces SBA-2
Single Spool Cross Loader Valve

Replaces number SBA-2, 196-131135

This is a one lever valve:
Double Action,Spring Centering,

Open Center
Can be converted to closed center - Call for assistance with conversion

30GPM Capacity
2500 PSI Working Pressure-Adjustable
3/4" Inlet and Outlet Ports
1/2" Work Ports

Price: $285.00

UA999950 Double Spool Cross Loader Valve - Replaces SBA-22

UA999950 Double Spool Cross Loader Valve - Replaces SBA-22
Double Spool Cross Loader Valve

Replaces number SBA-22, 136250

This is a two lever valve:
Double Action,Spring Centering,

Open Center
Can be converted to closed center - Call for assistance on conversion.

30GPM Capacity
2500 PSI Working Pressure-Adjustable
3/4" Inlet and Outlet Ports
1/2" Work Ports

Price: $465.00

UA999949 Triple Spool Cross Loader Valve - Replaces SBA-222

UA999949 Triple Spool Cross Loader Valve - Replaces SBA-222
Triple Spool Cross Loader Valve

Replaces number SBA-222, 196-145737

This is a three lever valve:
Double Action,Spring Centering,

Open Center
an be converted to closed center - Call for assistance on conversion

30GPM Capacity
2500 PSI Working Pressure-Adjustable
3/4" Inlet and Outlet Ports
1/2" Work Ports

Price: $630.00

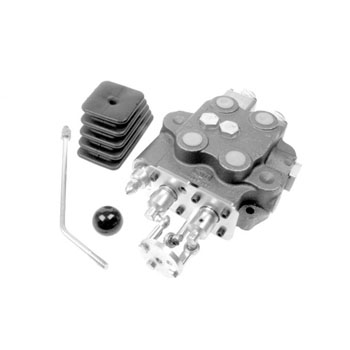

UA999948 Cross 2-Spool Joystick Valve, Open Center - Replaces SBAF2J

UA999948 Cross 2-Spool Joystick Valve, Open Center - Replaces SBAF2J
Cross Hydraulic Control Valve 143430 - Open Center with Joystick

Replaces number SBAF2J, 196-143430

Double Action ,First Float, Second Spring Center
3/4" Inlet and Outlet Ports
1/2" Work Ports

2 Spool Open Center Hydraulic Control Valve With Joy Stick
Includes Load Checks. Spool Action: Both Double Action, First Float, Second Spring Center. 3/4 NPT In and Out 1/2 NPT Work Ports

Price: $590.00

UA999947 2-Spool Joystick Valve, Closed Center - Replaces SBA22CCWJ

UA999947 2-Spool Joystick Valve, Closed Center - Replaces SBA22CCWJ
2 SPOOL HYDRAULIC VALVE, CLOSED CENTER, WITH JOYSTICK

Replaces number SBA22CCWJ, 196-144595

Double Action ,Both Spring Center
3/4" Inlet and Outlet Ports
1/2" Work Ports

2 Spool with Float Position Closed Center Hydraulic Control Valve with Joystick Handle; First Spool-4-way, 4 position; Second Spool-4-way, 3 position; Spring Centering both spools; With End Ports; No relief; Float Position allows blade or bucket of loader to ride the contours of the ground.

Price: $620.00
