Pressure Switch

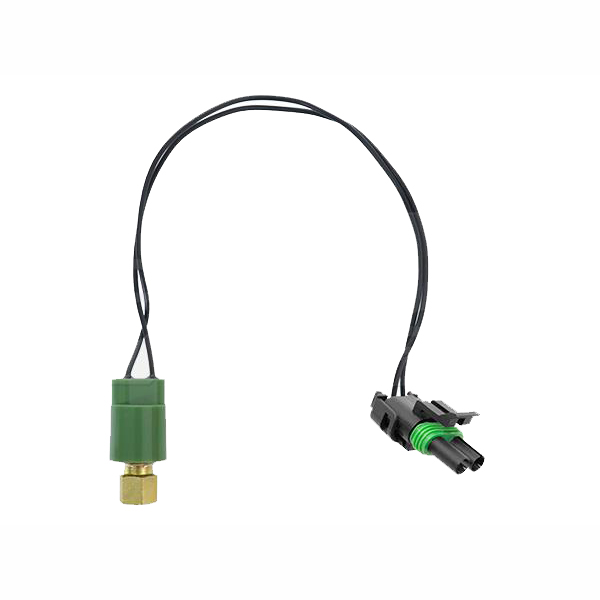

UJD999670 High Pressure Switch - Replaces RE12515

UJD999670 High Pressure Switch - Replaces RE12515
High Pressure Switch Normally Closed, Closes 225 psi. Opens 375 psi., 7/16" x 20 Thread

Replaces RE12515, RE17366, 220-3087

Fits JOHN DEERE: 4050(Serial Number 6592 and Below, With Switch Mounted on High Side Compressor to Condenser Line)
4250(Serial Number 11453 and Below, With Switch Mounted on High Side Compressor to Condenser Line)
4450(Serial Number 22781 and Below, With Switch Mounted on High Side Compressor to Condenser Line)
4650(Serial Number 12904 and Below, With Switch Mounted on High Side Compressor to Condenser Line)
4850(Serial Number 10283 and Below,With Switch Mounted on High Side Compressor to Condenser Line)

Price: $50.00

UF999830 Low Pressure Switch - Replaces 9707483

UF999830 Low Pressure Switch - Replaces 9707483
Low Pressure Switch Normally Open, Opens 6 PSI Closes 45 PSI, 7/16" x 20 Thread

Replaces 9707483, RE12516, AH116110, AH144084, 60-6854T1, AG713359, UCA99373, UF999830, 220-3006

Fits FORD NEW HOLLAND: 9280(1/94 to 12/95), 9480(1/94 to 12/95), 9680, 9880

Fits CASE INTERNATIONAL: 9210, 9230

Fits JOHN DEERE:

4050(Serial Number 6592 and Below, With Switch Mounted on Low Side Roof Suction Hose)

4250(Serial Number 11453 and Below, With Switch Mounted on Low Side Roof Suction Hose)

4450(Serial Number 22781 and Below, With Switch Mounted on Low Side Roof Suction Hose)

4650(Serial Number 12904 and Below, With Switch Mounted on Low Side Roof Suction Hose)

4850(Serial Number 10283 and Below, With Switch Mounted on Low Side Roof Suction Hose)

Item Information
Normally Open
Standard 7/16" x 20 Thread

Price: $60.00

UJD999842 Binary Pressure Switch - Replaces RE190340

UJD999842 Binary Pressure Switch - Replaces RE190340
Binary Pressure Switch, M10 - 1.25 Female Thread
With Automatic Temp Control

Replaces RD-5-9254-0P, RE190340, 332/V2270, 220-492

Fits JOHN DEERE: 6120, 6220, 6320, 6420,
6105R, 6110R, 6115R, 6120R, 6130R, 6170R, 6175R, 6190R, 3210R
6230, 6330, 6430,
7220, 7320, 7420,
8130, 8230, 8330, 8430, 8530

John Deere Pressure Transducer

Price: $110.00

UJD999890 A6 Compressor R134 Binary Pressure Switch Kit

UJD999890 A6 Compressor R134 Binary Pressure Switch Kit
Mounts In The Pressure Relief Valve Port On The Rear Head

Replaces 7700067305, 000.0069.516.1, V39418000, 6900/0485, UM3003, UJD999890, 530-4015

Fits JOHN DEERE: 2355, 2555, 2755, 2855N, 2955, 3155, 2350, 2550, 2750, 2950, 4030, 4230, 4430, 4630, 4040, 4240, 4440, 4640, 4840

Fits MASSEY FERGUSON: 1085, 1105, 1135, 1155, 2675, 2705, 2745, 2775, 2805

Switch Install In Pressure Relief Valve Port

2 Wire Pressure Switch Pigtail With 48" Leads & Binary Pressure Switch, Normally Open, 3/8" x 24 Thread

Specifications
LOW PRESSURE - CLOSES 28 PSI Rising Pressure
LOW PRESSURE - OPENS 28 PSI Falling Pressure
HIGH PRESSURE - OPENS 395 PSI Rising Pressure
HIGH PRESSURE - CLOSES 300 PSI Falling Pressure

Price: $40.00

UJD999891 Low Pressure Switch - Replaces RE24308

UJD999891 Low Pressure Switch - Replaces RE24308
Low Pressure Switch, Normally Open
Standard 7/16" x 20 Thread

Replaces RE24308, 220-3025

Fits JOHN DEERE: 2355, 2555, 2755, 2855N, 2955, 3155, 7200, 7400, 7600, 7700, 7800
4055, 4255, 4455, 4555, 4755, 4955
4050(Serial Number 6593 and Above, With Switch Mounted on High Side Liquid Roof Hose)
4250(Serial Number 11454 and Above, With Switch Mounted on High Side Liquid Roof Hose)
4450(Serial Number 22782 and Above, With Switch Mounted on High Side Liquid Roof Hose)
4650(Serial Number 12905 and Above, With Switch Mounted on High Side Liquid Roof Hose)
4850(Serial Number 10284 and Above, With Switch Mounted on High Side Liquid Roof Hose)

Specifications
TYPE Normally Open
LOW PRESSURE - OPENS 35 psi
LOW PRESSURE - CLOSES 46 psi
THREAD SIZE 7/16" X 20

Price: $50.00

UJD999892 High Pressure Switch - Replaces RE24307

UJD999892 High Pressure Switch - Replaces RE24307
High Pressure Switch, Normally Closed
Standard 7/16" x 20 Thread

Replaces RE24307, 220-3015

Fits JOHN DEERE: 2355, 2555, 2755, 2855N, 2955, 3155, 7200, 7400, 7600, 7700, 7800
4055, 4255, 4455, 4555, 4755, 4955
4050(Serial Number 6593 and Above, With Switch Mounted on High Side Liquid Roof Hose)
4250(Serial Number 11454 and Above, With Switch Mounted on High Side Liquid Roof Hose)
4450(Serial Number 22782 and Above, With Switch Mounted on High Side Liquid Roof Hose)
4650(Serial Number 12905 and Above, With Switch Mounted on High Side Liquid Roof Hose)
4850(Serial Number 10284 and Above, With Switch Mounted on High Side Liquid Roof Hose)

Specifications
TYPE Normally Closed
HIGH PRESSURE - OPENS 395 PSI
HIGH PRESSURE - CLOSES 193 psi
THREAD SIZE 7/16" X 20

Price: $49.00

UJD999893 Binary Pressure Switch - Replaces AL69209

UJD999893 Binary Pressure Switch - Replaces AL69209
Binary Pressure Switch

Replaces AL69209, 220-10562

Fits JOHN DEERE: 2355 (SN 736337 and Above), 2555 (SN 736337 and Above), 2755 (SN 736337 and Above),3155 (SN 736337 and Above),
2955 (SN 736337 to 767516)

Specifications
LOW PRESSURE - OPENS 28 PSI Falling Pressure
LOW PRESSURE - CLOSES 30 PSI Rising Pressure
HIGH PRESSURE - OPENS 355 PSI Rising Pressure
HIGH PRESSURE - CLOSES 270 PSI Falling Pressure

Can Use OE Version UJD999894

Price: $58.00

UJD999894 Binary Pressure Switch - Replaces AL69209

UJD999894 Binary Pressure Switch - Replaces AL69209
OE Binary Pressure Switch

Replaces AL69209, 220-1056

Fits JOHN DEERE: 2355 (SN 736337 and Above), 2555 (SN 736337 and Above), 2755 (SN 736337 and Above),3155 (SN 736337 and Above),
2955 (SN 736337 to 767516)

Specifications
LOW PRESSURE - CLOSES 30 PSI Rising Pressure
LOW PRESSURE - OPENS 28 PSI Falling Pressure
HIGH PRESSURE - OPENS 400 PSI Rising Pressure
HIGH PRESSURE - CLOSES 225 PSI Falling Pressure

Can use Aftermarket Switch UJD999893

Price: $150.00

UJD999956 Binary Switch - Replaces RE155938

UJD999956 Binary Switch - Replaces RE155938
Binary Switch, Normally Open, M10 x 1.25 Thread

Replaces RE155938, RE60887, 4379-RD-589460, 22-381

Fits JOHN DEERE: 5300, 5400, 5500, 5210, 5310, 5410, 5510,
7210, 7410, 7510, 7610, 7710, 7810,
8100, 8200, 8300, 8400, 8110, 8210, 8310,
8410 (SN 16078 and Below)

Binary Switch Normally Open, M10 x 1.25 Thread

Specifications
LOW PRESSURE - OPENS 32 psi Falling Pressure
LOW PRESSURE - CLOSES 42 psi Rising Pressure
HIGH PRESSURE - OPENS 325 psi Rising Pressure
HIGH PRESSURE - CLOSES 250 psi Falling Pressure

Price: $50.00

UJD999962 Binary Pressure Switch - Replaces AL168231

UJD999962 Binary Pressure Switch - Replaces AL168231
Binary Pressure Switch, High Low Protection High Side, Binary Type Switch

Replaces AL168231, AL112954, AL78053, 220-1050

Fits JOHN DEERE:
5220, 5320, 5420, 5520,
5225, 5325, 5425, 5525, 5625,
5085E, 5100E, 5101E,
5065M, 5095M, 5100M, 5100MH,
6100D, 6105D, 6110D, 6115D, 6125D, 6130D, 6140D,
6110J (Fits 4 Cylinder and South American Edition Tractors),
6125J (Fits 4 Cylinder and South American Edition Tractors),
6140J, 6145J, 6155J, 6165J, 6180J,
6200, 6300, 6400,
6110, 6210, 6310, 6410, 6510,
6215, 6415, 6615, 6715,
6120, 6220, 6320, 6420,
6230, 6330, 6430,
7220, 7320, 7420, 7520MFWD

Specifications
TYPE Normally Open
LOW PRESSURE - OPENS 28 PSI Falling Pressure
LOW PRESSURE - CLOSES 25 PSI Rising Pressure
HIGH PRESSURE - OPENS 350 PSI Rising Pressure
HIGH PRESSURE - CLOSES 220 PSI Falling Pressure
THREAD SIZE 7/16" X 20

Price: $55.00

UJD999963 Binary Pressure Switch - Replaces RE157329

UJD999963 Binary Pressure Switch - Replaces RE157329
Binary Pressure Switch, Normally Open

Replaces RE157329, AN206192, ABPN83318179, ABPN83322315, A22-30930-000, 22-43249-000, 220-1032

Fits JOHN DEERE:
4320, 4720
5220, 5320, 5420, 5520
5200, 5300, 5400, 5500, 5210, 5310, 5410, 5510
May Require Wire Connector Modification
6110M, 6120M, 6155M, 6175M,
7210, 7410, 7510, 7610, 7710, 7810,
7720, 7820, 7920, 8100, 8200, 8300, 8400, 8110, 8210, 8310, 8410, 8120, 8220, 8320, 8420, 8520, 8130, 8230, 8330, 8430, 8530

Specifications
LOW PRESSURE - CLOSES 30 psi.
LOW PRESSURE - OPENS 28 psi.
HIGH PRESSURE - OPENS 445 psi.
HIGH PRESSURE - CLOSES 370 psi.
THREAD SIZE M10 x 1.25

Price: $40.00

UJD99052 High Pressure Switch - Replaces RE60888

UJD99052 High Pressure Switch - Replaces RE60888
High Pressure Switch, Normally Closed, Opens 390 psi. Closes 240 psi., 10mm x 1.25 Thread

Replaces: 87000227, 284273A1, 284273A2, RE60888, 87775423, 87305163, UCA99382, UCA999897, UJD99052, 220-3089

Fits FORD NEW HOLLAND: T6010, T6020, T6030, T6040, T6050, T6060, T6070, T6080, T8010, T8020, T8030, T8040, T9010, T9020, T9030, T9040, T9050, T9060, TS100A, TS110A, TS115A, TS130A
T8.275, T8.300, T8.330, T8.360

Fits CASE INTERNATIONAL: MX80X, MX90X. MX100C, MX100, MX200, MX210, MX215, MX220, MX230, MX240, MX245, MX255, MX270, MX275, MX285, MX305,

CX50, CX60, CX70, CX80, CX90, CX100, (CXs with low profile cab),

MX90C, MX80C, MX100C, MX180, MX200, MX220, MX240, MX215, MX245, MX270, MX275, MX305,

Magnum 215, 225, 235, 245, 250, 255, 260, 275, 280, 290, 305, 310,

STX275, STX325, STX280, STX330, STX375, STX380, STX425, STX430, STX440, STX450, STX480, STX500, STX530,

280 Steiger, 330 Steiger, 335 Steiger, 380 Steiger, 385 Steiger, 430 Steiger, 435 Steiger, 480 Steiger, 485 Steiger, 530 Steiger, 535 Steiger

Fits JOHN DEERE: 5220, 5320, 5420, 5520, 5200, 5300, 5400, 5500, 5210, 5310, 5410, 5510, 7210, 7410, 7510, 7610, 7710, 7810, 8100, 8200, 8300, 8400, 8110, 8210, 8310, 8410

Normally Closed
Thread - 10mm, 1.25 Pitch

Price: $65.00
